IconMaster Installation and Configuration Manual 79
Chapter 4: Router Connections

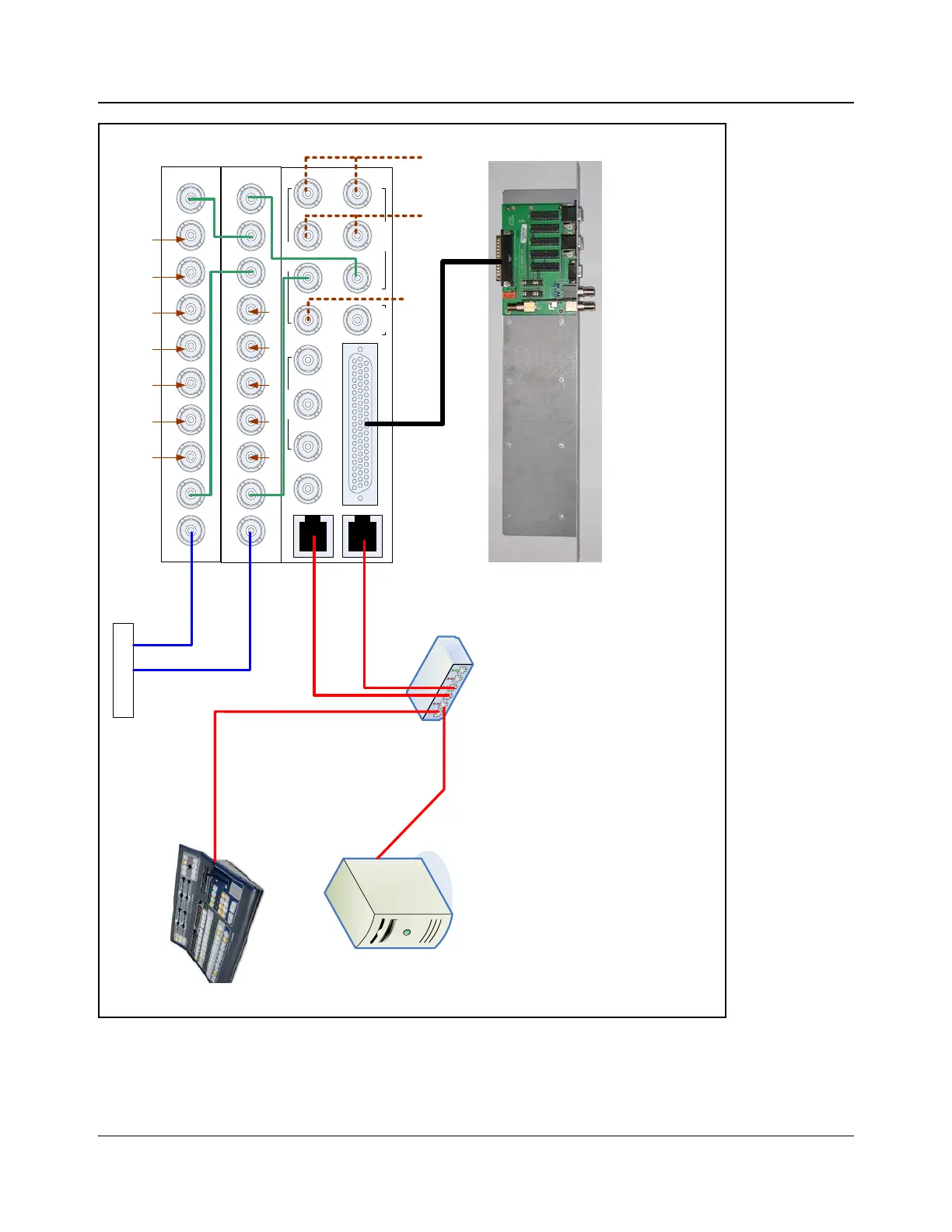

Figure 4-3. IconMaster System with Internal Video NSM Router and Optional ICONM-BO-V Module
Optional ICONM-BO-V module
REF INPUT
OUT 1 IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 OUT 2
NSM-7X2SHD-BM
Genlock
Clean PGM PST
Squeeze
Bkgd
Bus A Key 1 Fill 2
Fill 1 Key 2Bus BPGM
MKE-3901-BM
Multi Function I/O
Outputs Inputs
InputsOutput
Ethernet 1 Ethernet 2
REF INPUT
OUT 1 IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 OUT 2
NSM-7X2SHD-BM
Ethernet Switch
IconMaster
Control Panel
PC loaded with
IconMaster Soft Tools
Station Reference*
Ext Key 1 Ext Key 2
Connect to Ethernet 2
Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 Input 9 Input 10 Input 11 Input 12
MKE breakout cable
165-000242-00
FX squeeze
background
* The same station reference must be used for all reference inputs, either using loop thru or distribution amplifier.
