Data Communications

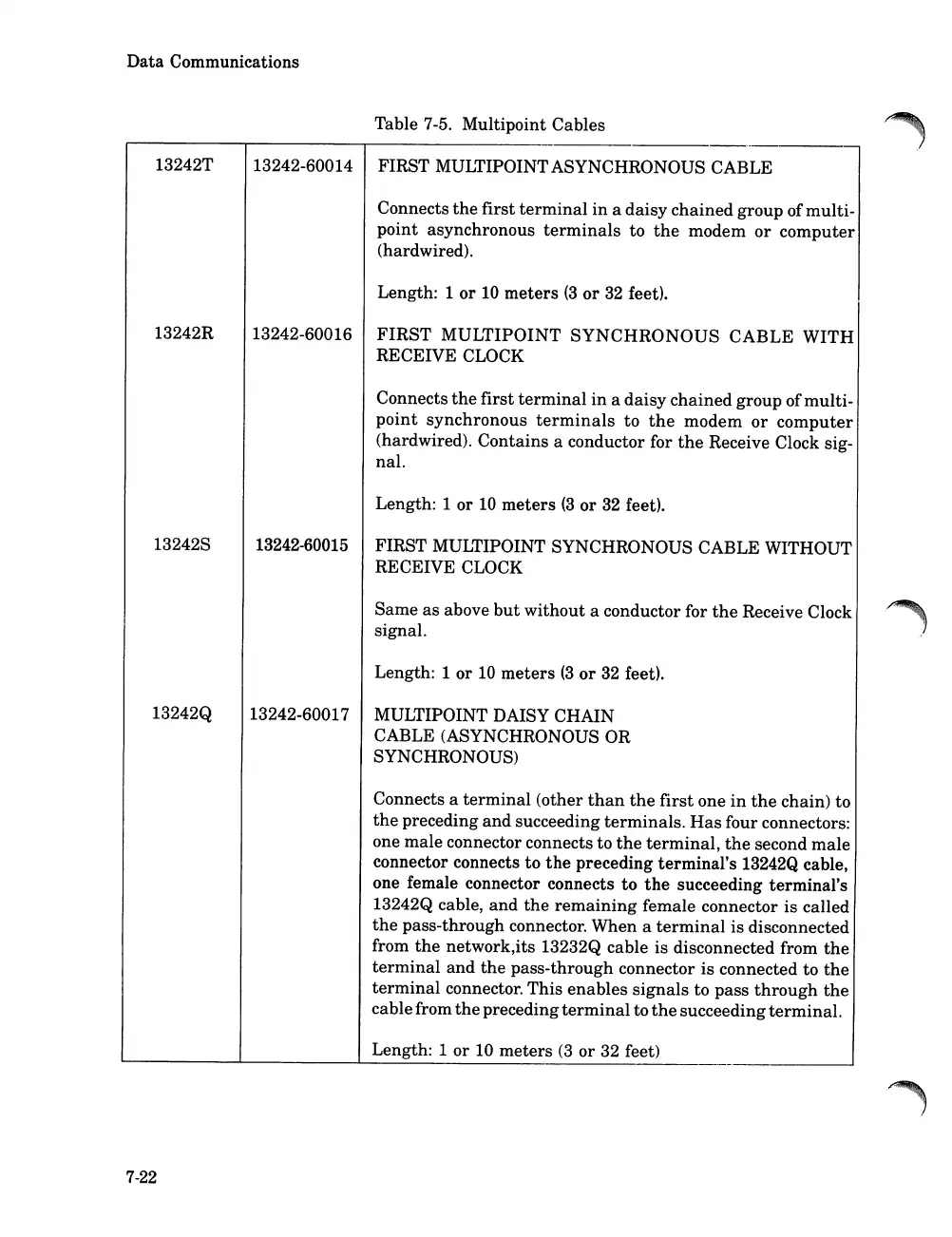

Table 7-5. Multipoint Cables
13242T
13242R
13242S
13242Q
7-22
13242-60014 FIRST MULTIPOINT ASYNCHRONOUS CABLE
Connects
the
first
terminal
in
a daisy chained group ofmulti-
point asynchronous
terminals
to
the
modem
or
computer
(hardwired).
Length: 1 or
10
meters
(3
or
32
feet).
13242-60016
FIRST
MULTIPOINT
SYNCHRONOUS
CABLE
WITH
RECEIVE CLOCK
Connects
the
first
terminal
in
a daisy chained group ofmulti-
point
synchronous
terminals
to
the
modem or
computer
(hardwired). Contains a conductor for
the
Receive Clock sig-
nal.
Length: 1 or
10
meters
(3
or
32
feet).
13242-60015 FIRST MULTIPOINT SYNCHRONOUS CABLE WITHOUT
RECEIVE CLOCK
Same
as
above
but
without a conductor for
the
Receive Clock
signal.
Length: 1 or
10
meters
(3
or
32
feet).
13242-60017 MULTIPOINT DAISY CHAIN
CABLE (ASYNCHRONOUS OR
SYNCHRONOUS)
Connects a
terminal
(other
than
the
first one
in
the
chain) to
the
preceding
and
succeeding terminals.
Has
four connectors:
one male connector connects to
the
terminal,
the
second
male
connector connects
to
the
preceding terminal's 13242Q cable,
one female connector connects
to
the
succeeding terminal's
13242Q cable,
and
the
remaining
female connector is called
the
pass-through connector. When a
terminal
is disconnected
from
the
network,its 13232Q cable is disconnected from
the
terminal
and
the
pass-through connector is connected to
the
terminal
connector. This enables signals to pass
through
the
cablefrom
the
preceding
terminal
to
the
succeedingterminal.
Length: 1 or
10
meters
(3
or 32 feet)
