HP 262SA - Terminal Connection to an HP 13265 A Modem Pod or an HP 13266 A Current Loop Converter

Data Communications
Terminals with option 022, the integral datacomm pod adapter, can also be connected in a
point-to-point configuration
through an HP 13265A modem. Figure 7-5 illustrates the cable
connection, which
is also applicable to a current loop connection to the HP 13266A Current
Loop Converter.
HP 2625A, Opt. 022
or
lI~i.i __ UHP 2628A, Opt. 022
NOTE:
1. -t> is a male connector.
2. >is a female connector.

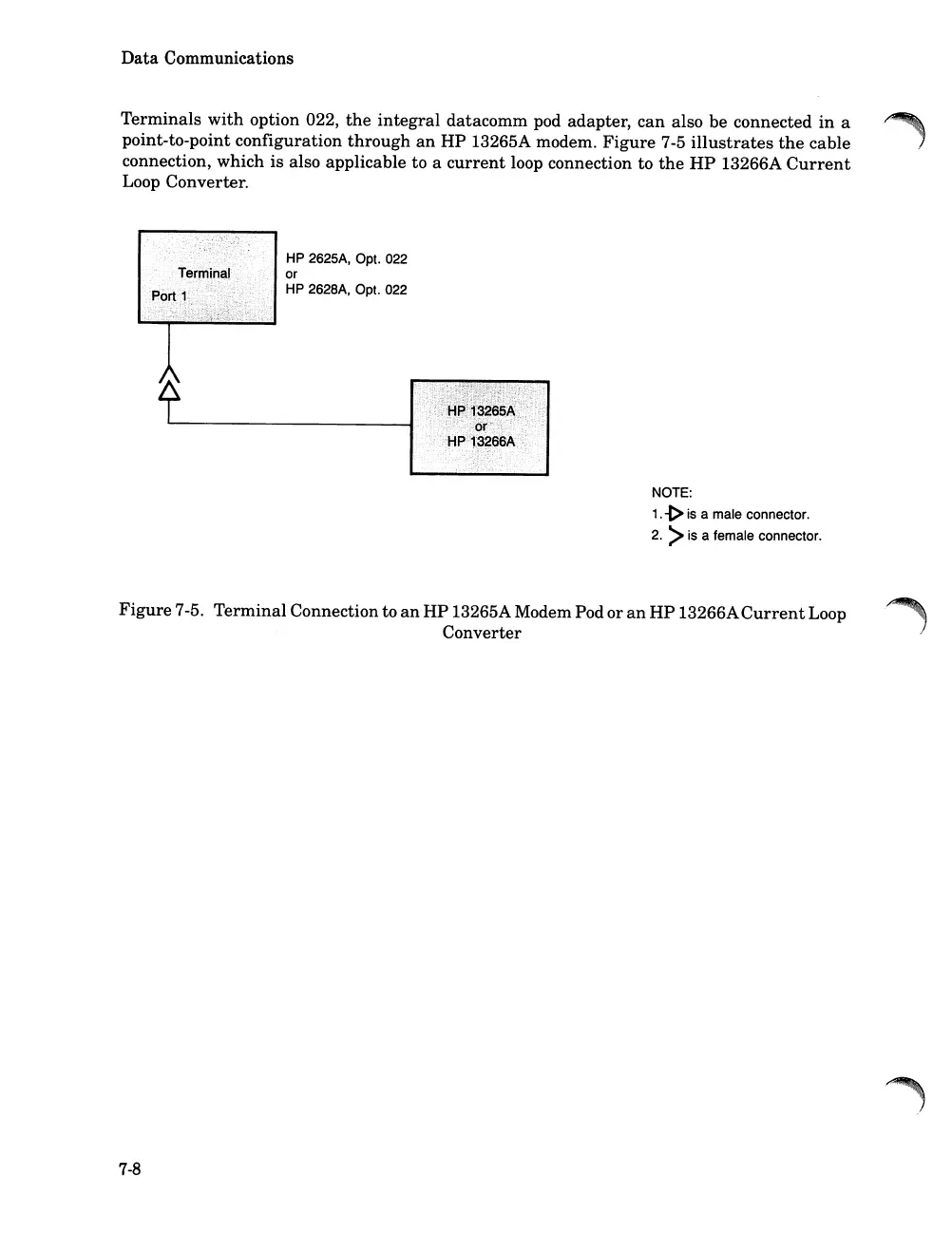

Figure 7-5. Terminal Connection to an HP 13265AModem Pod or an HP 13266A Current Loop
Converter
