HP 262SA - Log Bottom Mode; Bottom Logging

Integral Printer Control
Top Logging
Last Line
In / '-------'"
Workspace

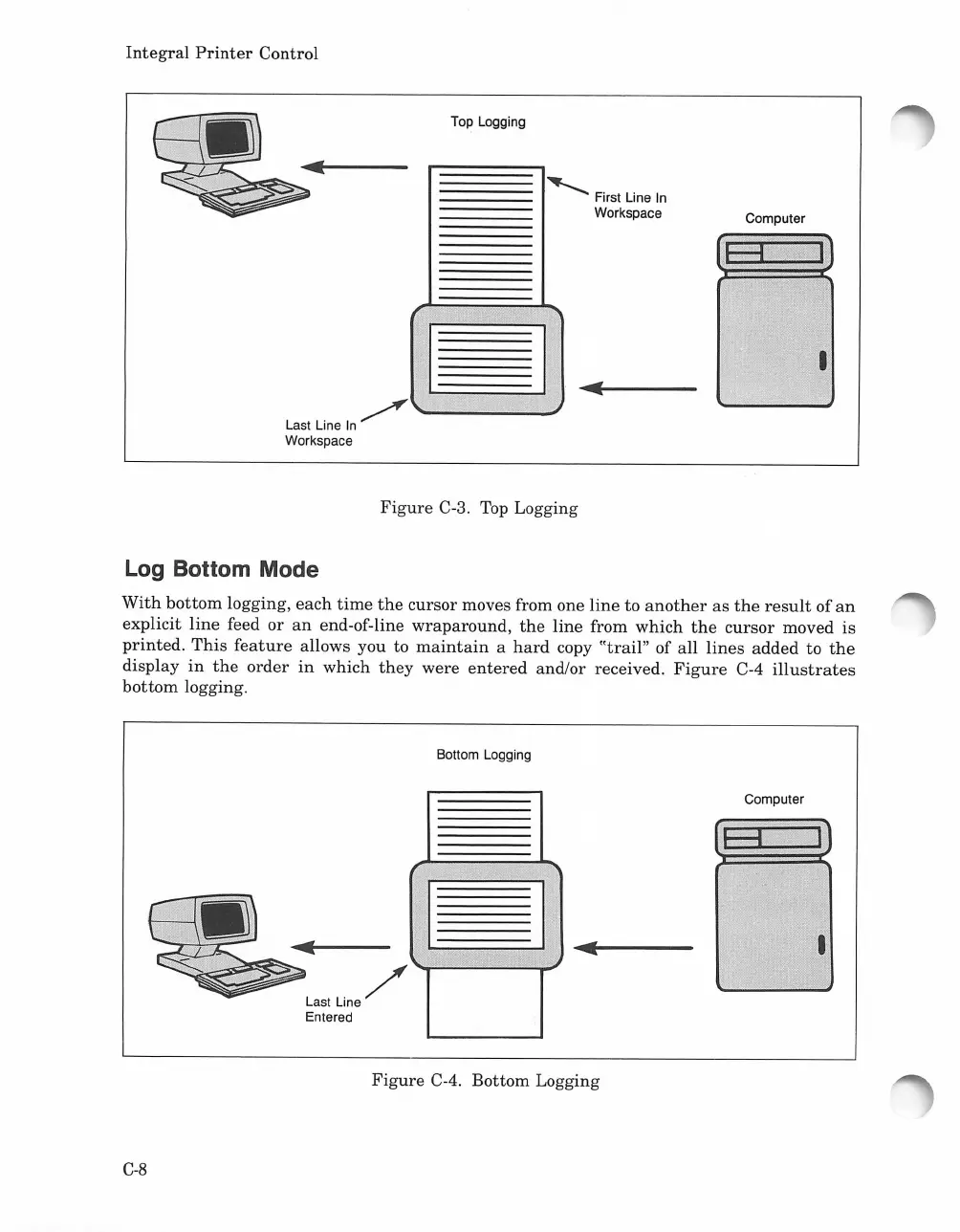

Figure C-3. Top Logging
Workspace
Computer
H
I
Log Bottom Mode
With bottom logging, each time the cursor moves from one line to another as the result of an
explicit line feed or an end-of-line wraparound, the line from which the cursor moved is
printed. This feature allows you to maintain a hard copy "trail" of all lines added to the
display in the order in which they were entered and/or received. Figure C-4 illustrates
bottom logging.
Boltom Logging
Computer
H
...
;:::::;~~:~~i)Last Line /
Entered
...
I
C-8
Figure C-4. Bottom Logging
