HP 262SA - Terminal Capabilities

Status
SECONDARY STATUS BYTES (cont'd)
BYTE 11
CONFIGURATION STRAPS S-V
(always zero)
BYTE
13 MEMORY LOCK MODE
Strap T
locked in row
~ 0
locked in row 0
(memory overflow
protect)
Strap U
L------Strap V
Straps
S-V do not apply to the terminal.
1 memory lock on
o memory lock off
0....---1 memory full
o memory not full
BYTE 12
CONFIGURATION STRAPS W-Z
Strap W (Data Comm Test)
1
= yes (Inhibit)
o = no (Allow)
Strap X
Strap Y
'------ Strap Z
Straps
X, Y, and Z do not apply to the terminal.

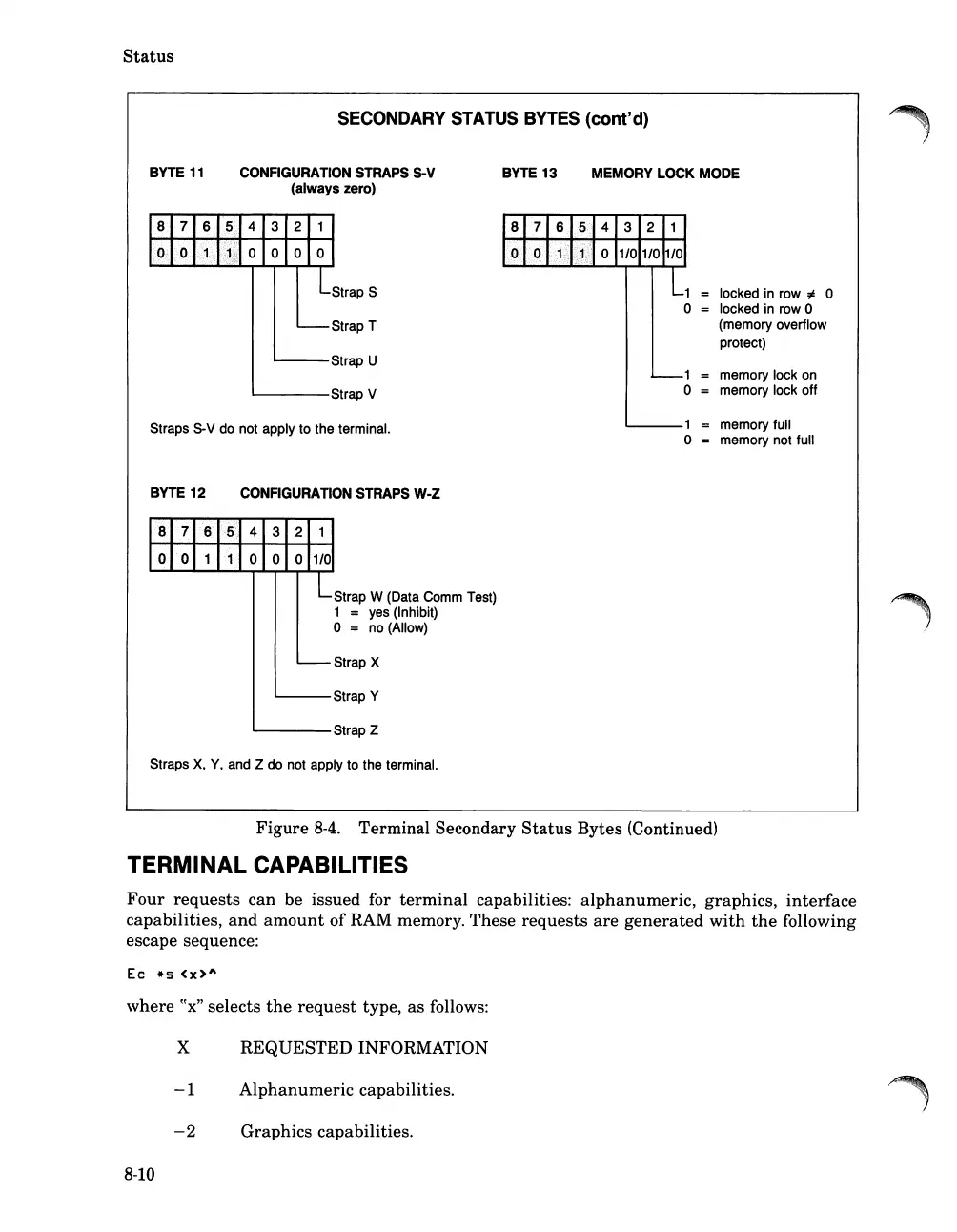

Figure 8-4. Terminal Secondary Status Bytes (Continued)
TERMINAL CAPABILITIES
Four requests can be issued for terminal capabilities: alphanumeric, graphics, interface
capabilities, and amount of RAM memory. These requests are generated with the following
escape sequence:
Ec *S (x)"
where ((x" selects the request type, as follows:
X
REQUESTED INFORMATION
-1 Alphanumeric capabilities.
- 2
Graphics capabilities.
8-10
