HP 262SA - Plotter Connected in Eavesdrop

Peripheral Devices
Connection of external devices to the terminal is illustrated in figures 6-1 through 6-4.
Terminal
Port
Cable B
HP 2625A Std
HP 2625A Opt. 026
HP 2628A Std
HP 2628A Opt. 046
NOTE:
1. Cable A can be a 13242NI 13242M or 13242Y.

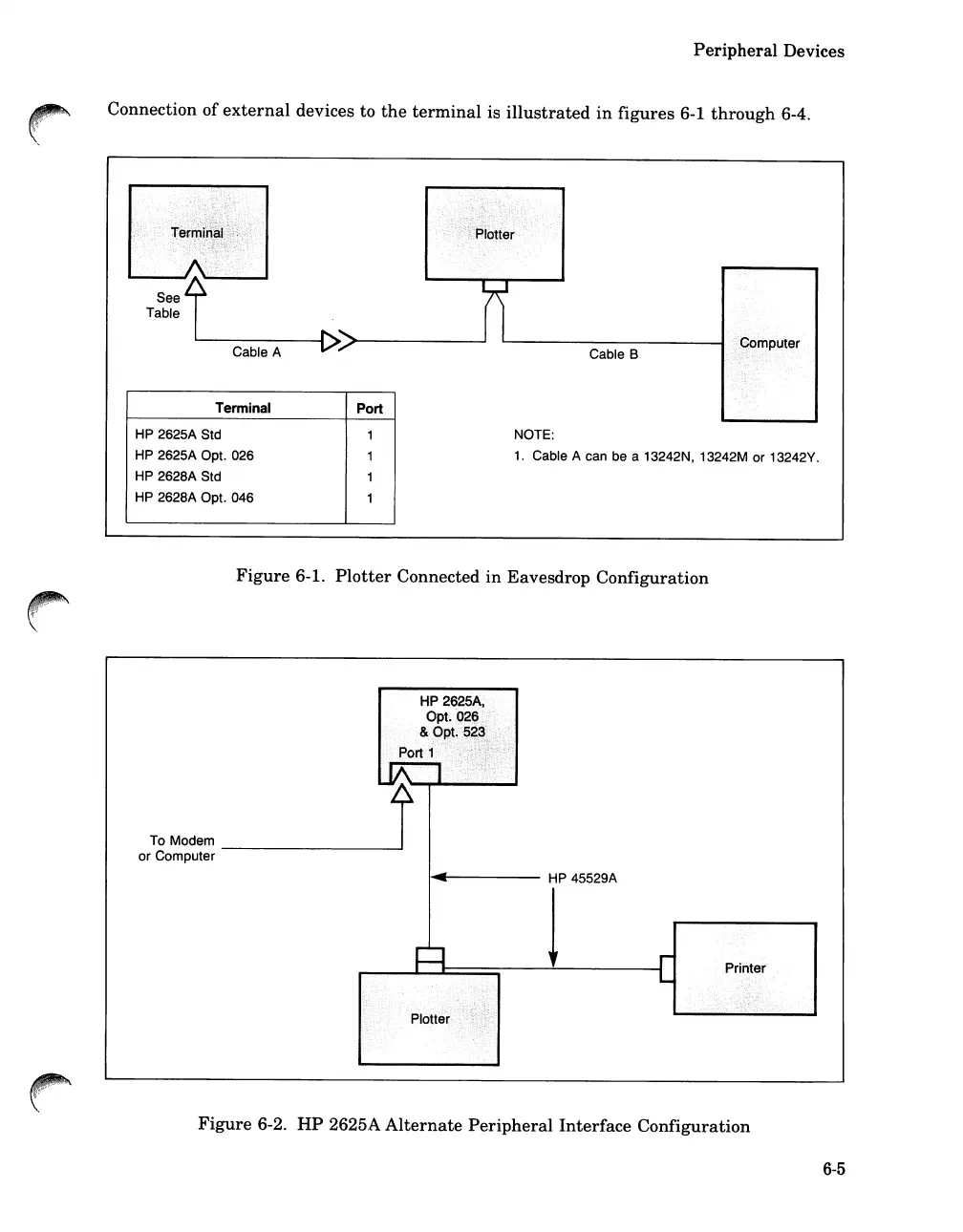

Figure 6-1. Plotter Connected in Eavesdrop Configuration
To Modem _
or Computer
I"'~------ HP 45529A
1
Figure 6-2. HP 2625.A Alternate Peripheral Interface Configuration
