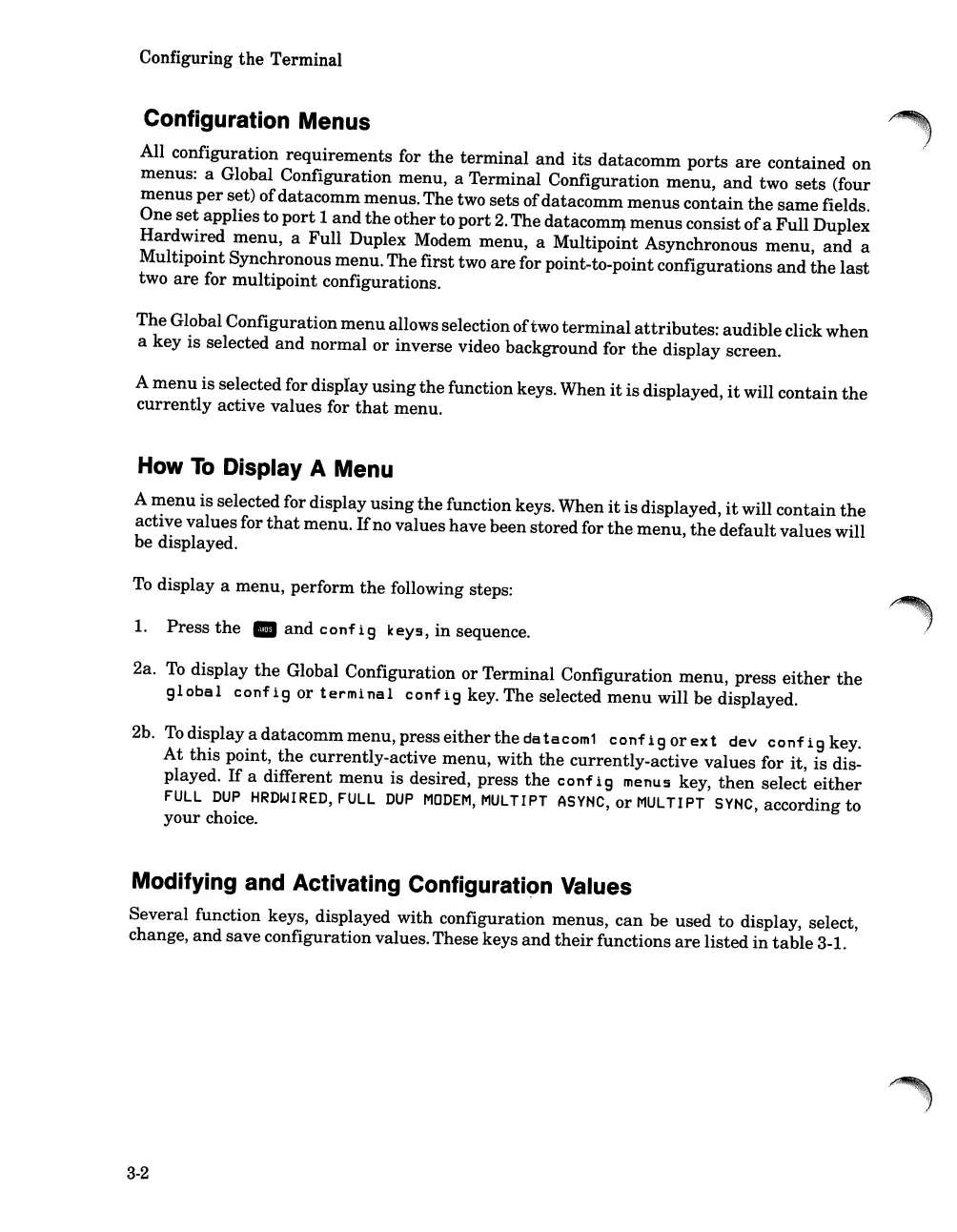

Configuring
the
Terminal
Configuration Menus
All configuration
requirements
for
the
terminal
and
its
datacomm
ports
are
contained
on
menus: a Global Configuration menu, a Terminal Configuration
menu,
and
two
sets
(four
menus
per
set) of
datacomm
menus.The two sets ofdatacomm
menus
contain
the
same
fields.
One
set
applies
to
port
1
and
the
other
to
port
2.
The
datacomIIJ.
menus
consist ofa
Full
Duplex
Hardwired
menu,
a
Full
Duplex Modem menu, a Multipoint Asynchronous
menu,
and
a
Multipoint Synchronous menu. The
first
two
are
for point-to-point configurations
and
the
last
two
are
for
multipoint
configurations.
The
Global Configuration
menu
allows selectionoftwo
terminal
attributes:
audibleclick
when
a
key
is selected
and
normal
or inverse video background for
the
display screen.
A
menu
is selected for display
using
the
function keys. When
it
is displayed,
it
will
contain
the
currently
active values for
that
menu.
How
To
Display A Menu
A
menu
is selected for display
using
the
function keys. When
it
is displayed,
it
will
contain
the
active values for
that
menu.
Ifno
values have been stored for
the
menu,
the
default
values
will
be displayed.
To
display a menu, perform
the
following steps:
1.
Press
the.
andconfig
keys,
in
sequence.
2a.
To
display
the
Global Configuration or Terminal Configuration
menu,
press
either
the
global
config
or
terminal
config
key.
The
selected
menu
will
be
displayed.
2b.
Todisplayadatacommmenu,presseitherthedatacom1
configorext
dev
configkey.
At
this
point,
the
currently-active menu,
with
the
currently-active values for it,
is
dis-
played.
If
a different
menu
is desired, press
the
conf
ig
menus key,
then
select
either
FULL
DUP
HRDWIRED,
FULL
DUP
MODEM,
MULTIPT
ASYNC, or
MUL
TIPT
SYNC, according to
your
choice.
Modifying and Activating Configurati9n Values
Several function keys, displayed
with
configuration menus,
can
be
used
to
display, select,
change,
and
save configuration values.These keys
and
their
functions
are
listed
in
table
3-1.
