HP 262SA - Terminal Primary Status Bytes

Status
PRIMARY STATUS BYTES
BYTE 0
DISPLAY MEMORY SIZE
1K bytes
2K bytes
---4Kbytes
""------8K bytes
BYTE 2 CONFIGURATION STRAPS E-H
Strap F
Strap G (DC2 Handshake)
1
= yes (Enabled)
o = no (Disabled)
This byte specifies the amount of display memory
available in the terminal.
Note that "1111" specifies 15K or more bytes.
a.....----Strap H (Inhibit DC2)
1 yes (Enabled)
o = no (Disabled)
BYTE 1
CONFIGURATION STRAPS A-D
BYTE 3
LATCHING KEYS
Strap A
(Function
Key
Transmission)
1
= yes (Transmitted)
o = no (Not transmitted)
Strap
B
(Space Overwrite Latch)
1
= yes (Enabled)
o = no (Disabled)
4
CAPS LOCK key
1 upper case only
o upper and lower case
BLOCK MODE Key
1 block mode
o character mode
""-----AUTO LF Key
1 auto LF
o = no auto LF
Strap C
(Inhibit End-of-Line
Wraparound)
1
= yes (Enabled)
o = no (Disabled)
lo.....----StrapD
Page/Line
1 Page
o = Line
""------Terminal sends
secondary status

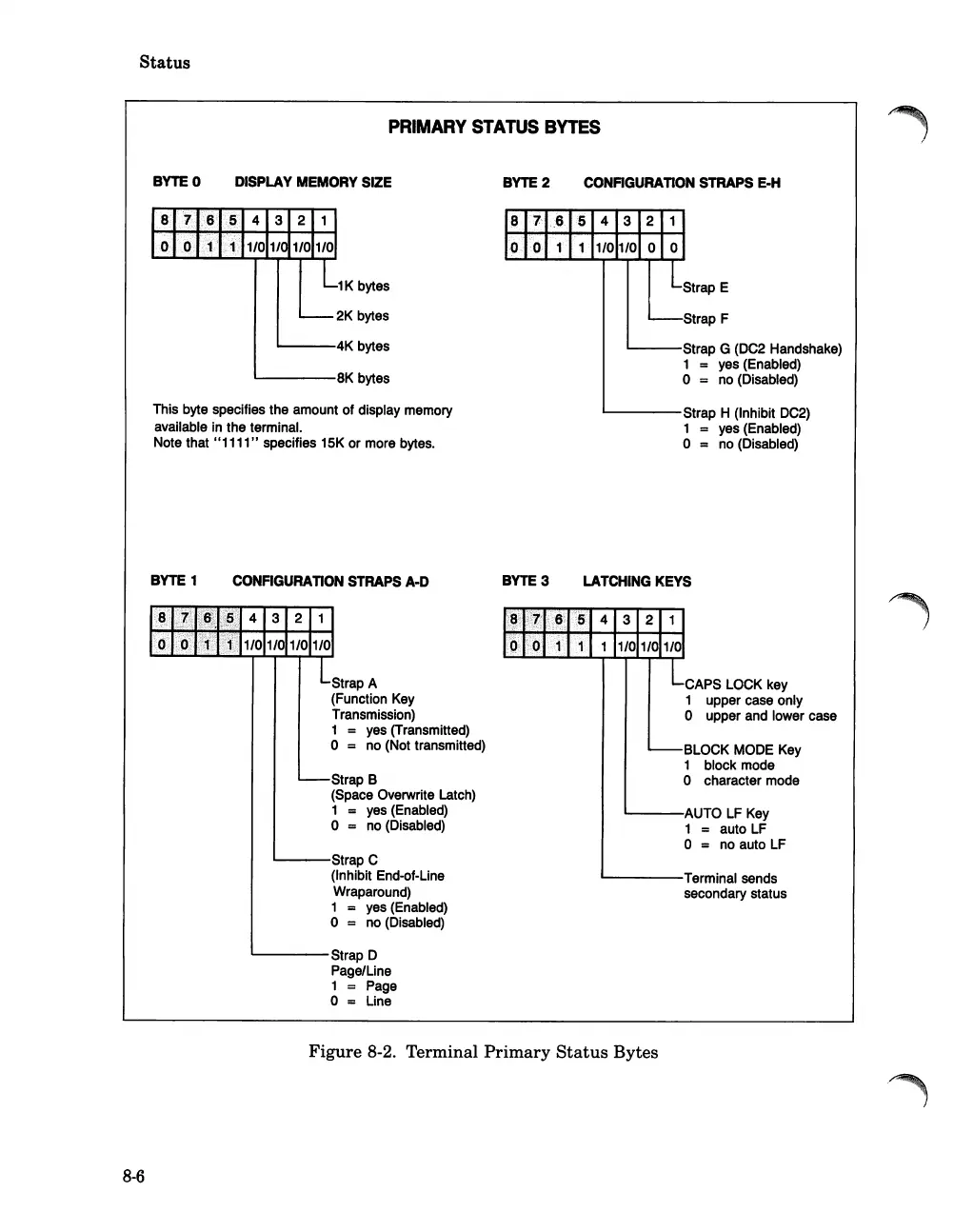

Figure 8-2. Terminal Primary Status Bytes
8-6
