3276/78 Emulation Mode

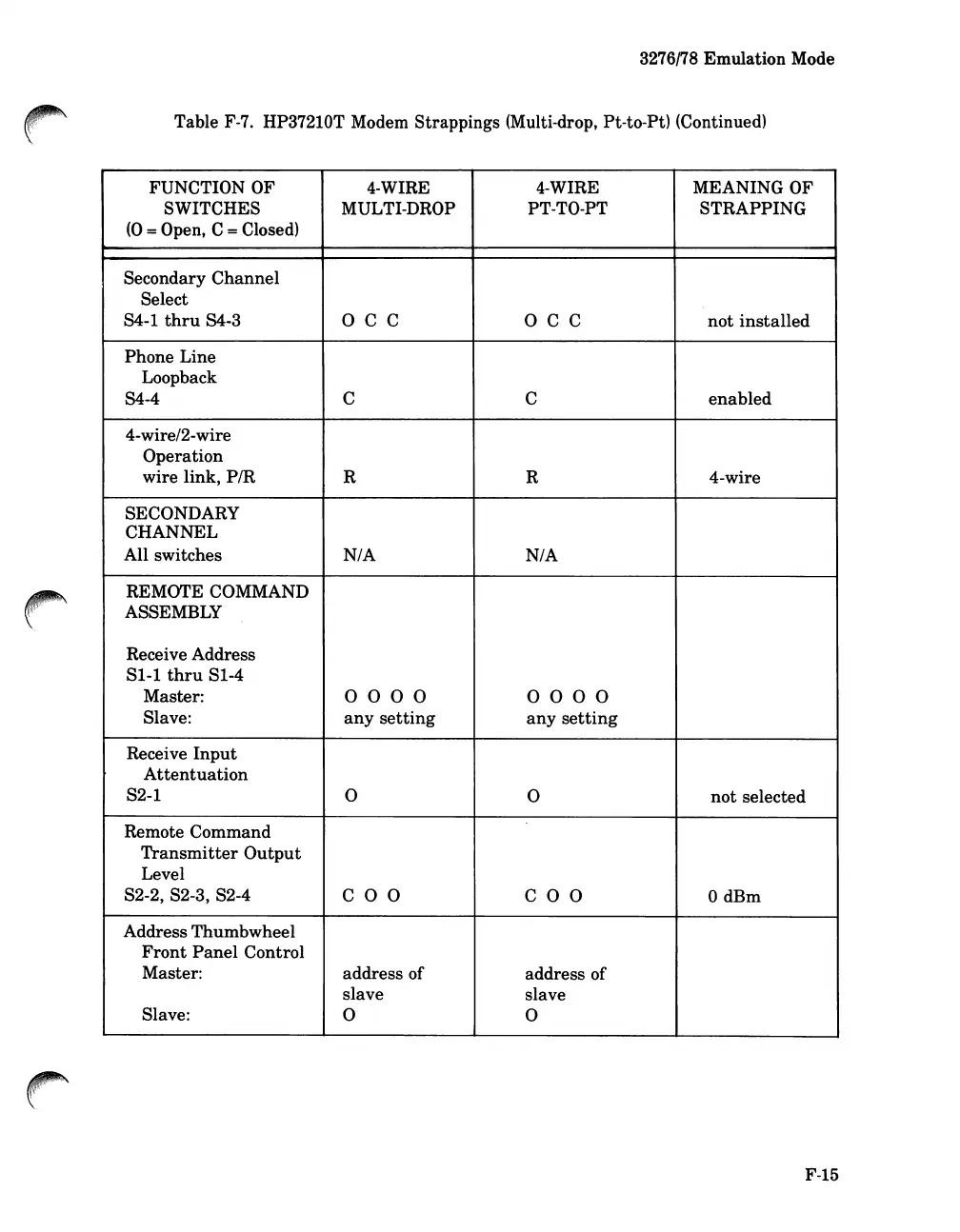

Table F-7. HP37210T Modem Strappings (Multi-drop, Pt-to-Pt) (Continued)
FUNCTION OF 4-WIRE 4-WIRE
MEANING OF
SWITCHES
MULTI-DROP
PT-TO-PT STRAPPING
(0 =Open, C =Closed)
Secondary Channel
Select
S4-1 thru 84-3
OCC
OCC
not installed
Phone Line
Loopback
S4-4
C
C enabled
4-wire/2-wire
Operation
wire link,
PIR
R
R
4-wire
SECONDARY
CHANNEL
All switches
N/A
NIA
REMOTE COMMAND
ASSEMBLY
Receive Address
Sl-l thru Sl-4
Master:
0000
0000
Slave:
any setting any setting
Receive Input
Attentuation
S2-1
0
0
not selected
Remote Command
Transmitter Output
Level
S2-2, S2-3, S2-4
COO
COO
OdBm
Address Thumbwheel
Front Panel Control
Master:
address of
address of
slave
slave
Slave:
0
0
F-15
