3276/78 Emulation Mode
Table

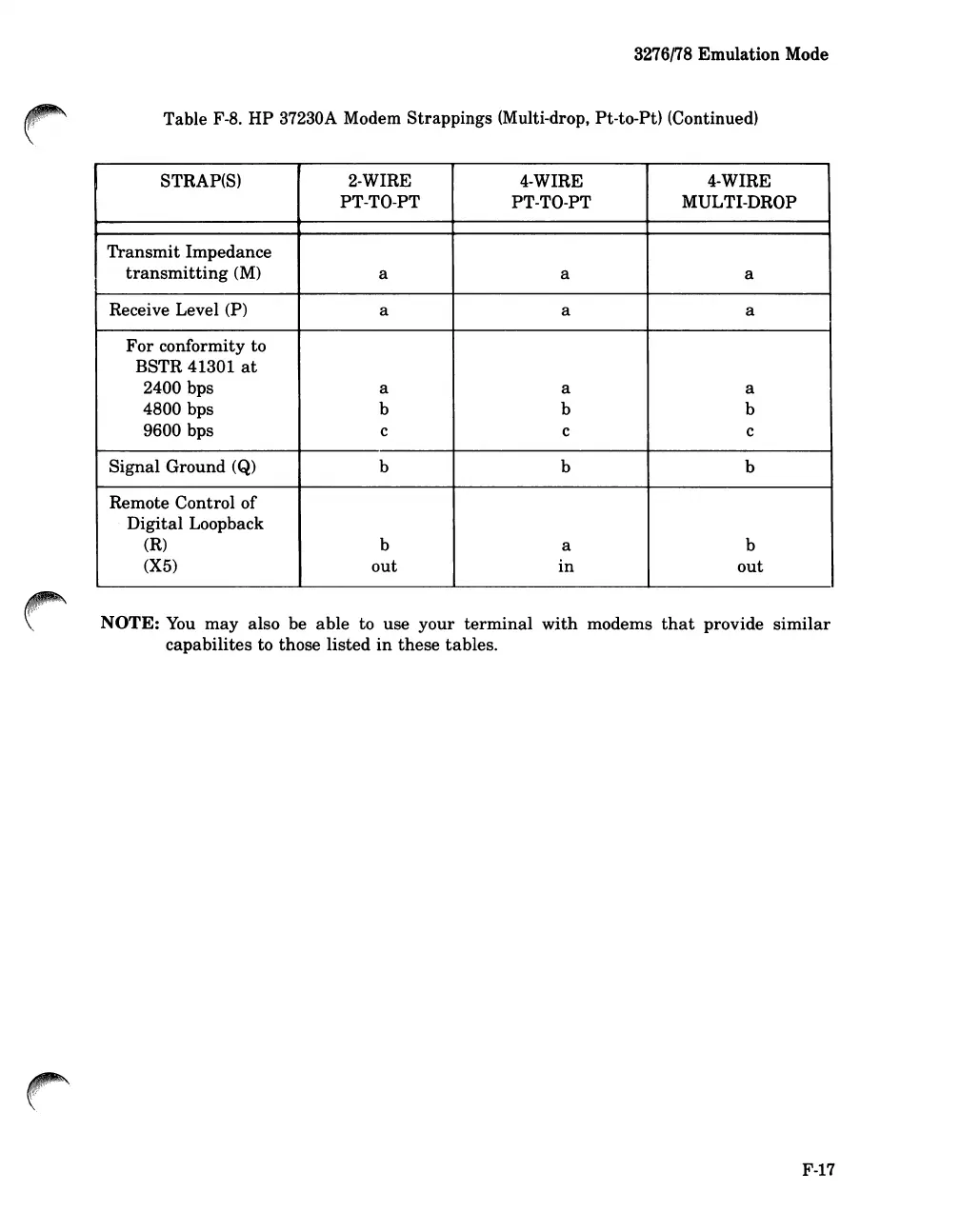

F-8. HP 37230A Modem Strappings (Multi-drop, Pt-to-Pt) (Continued)
STRAP(S)
2-WIRE
4-WIRE
4-WIRE
PT-TO-PT
PT-TO-PT MULTI-DROP
Transmit Impedance
transmitting (M)
a a
a
Receive Level
(P)
a a
a
For conformity to
BSTR 41301
at
2400 bps a a a
4800 bps
b b b
9600 bps
c
c c
Signal Ground
(Q)
b b
b
Remote Control of
. Digital Loopback
(R)
b
a b
(X5)
out
in out
NOTE: You may also be able to use your terminal with modems that provide similar
capabilites to those listed in these tables.
F-17
