CS(CB)Xmit
(Full Duplex
Hardwired
only)
DM(CC)Xmit
XmitXpar
(Multipoint
only)
InsSYNC
(Multipoint
Async only)
Configuring the Terminal

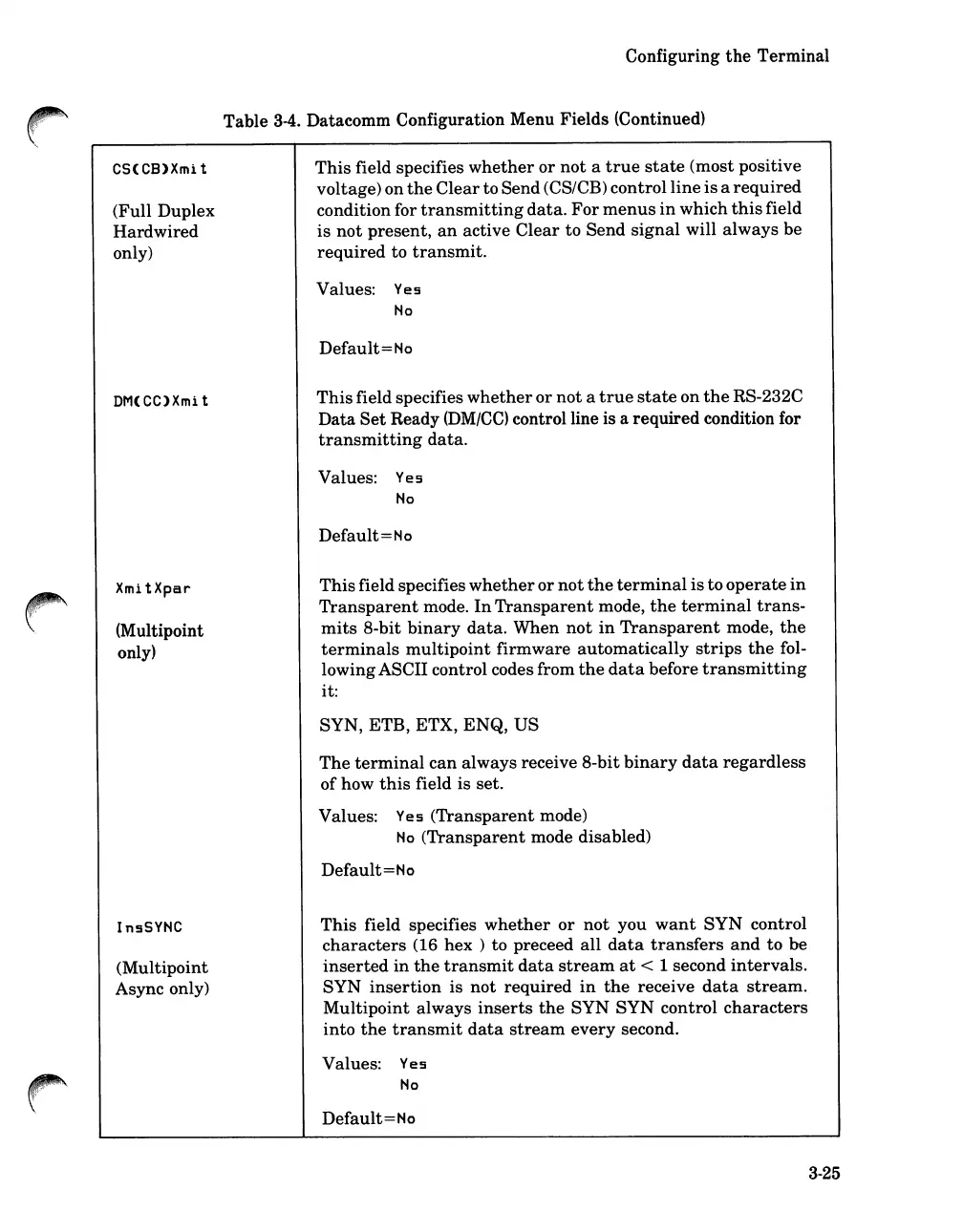

Table 3-4. Datacomm Configuration Menu Fields (Continued)
This field specifies whether or not a true state (most positive
voltage) on
the Clear to Send (CS/CB) control line is a required
condition for transmitting data. For menus in which this field
is not present, an active Clear to Send signal will always be
required to transmit.
Values: Yes
No
Default = No
This field specifies whether or not a true state on the RS-232C
Data Set Ready (DM/CC) control line is a required condition for
transmitting data.
Values: Yes
No
Default = No
This field specifies whether or not the terminal is to operate in
Transparent mode. In Transparent mode, the terminal trans-
mits 8-bit binary data. When not in Transparent mode, the
terminals multipoint firmware automatically strips the fol-
lowingASCII control codes from
the data before transmitting
it:
SYN,ETB,ETX,ENQ,US
The terminal can always receive 8-bit binary data regardless
of how this field is set.
Values:
Yes (Transparent mode)
No (Transparent mode disabled)
Default=No
This field specifies whether or not you want SYN control
characters (16 hex) to preceed all data transfers and to be
inserted in the transmit data stream at < 1 second intervals.
SYN insertion is not required in the receive data stream.
Multipoint always inserts the SYN SYN control characters
into the transmit data stream every second.
Values:
Yes
No
Default = No
