6-13
Wireless Interface Configuration
Configuring the Radio
Note When the radio is configured for auto channel selection, any radio mode
changes result in a five- to ten-second delay as the optimum radio channel
is determined and selected.
■ Maximum Stations: The maximum number of stations allowed to access
the applicable radio at any one time. (The default is 256.)
■ [Update]: Updates the radio parameters.

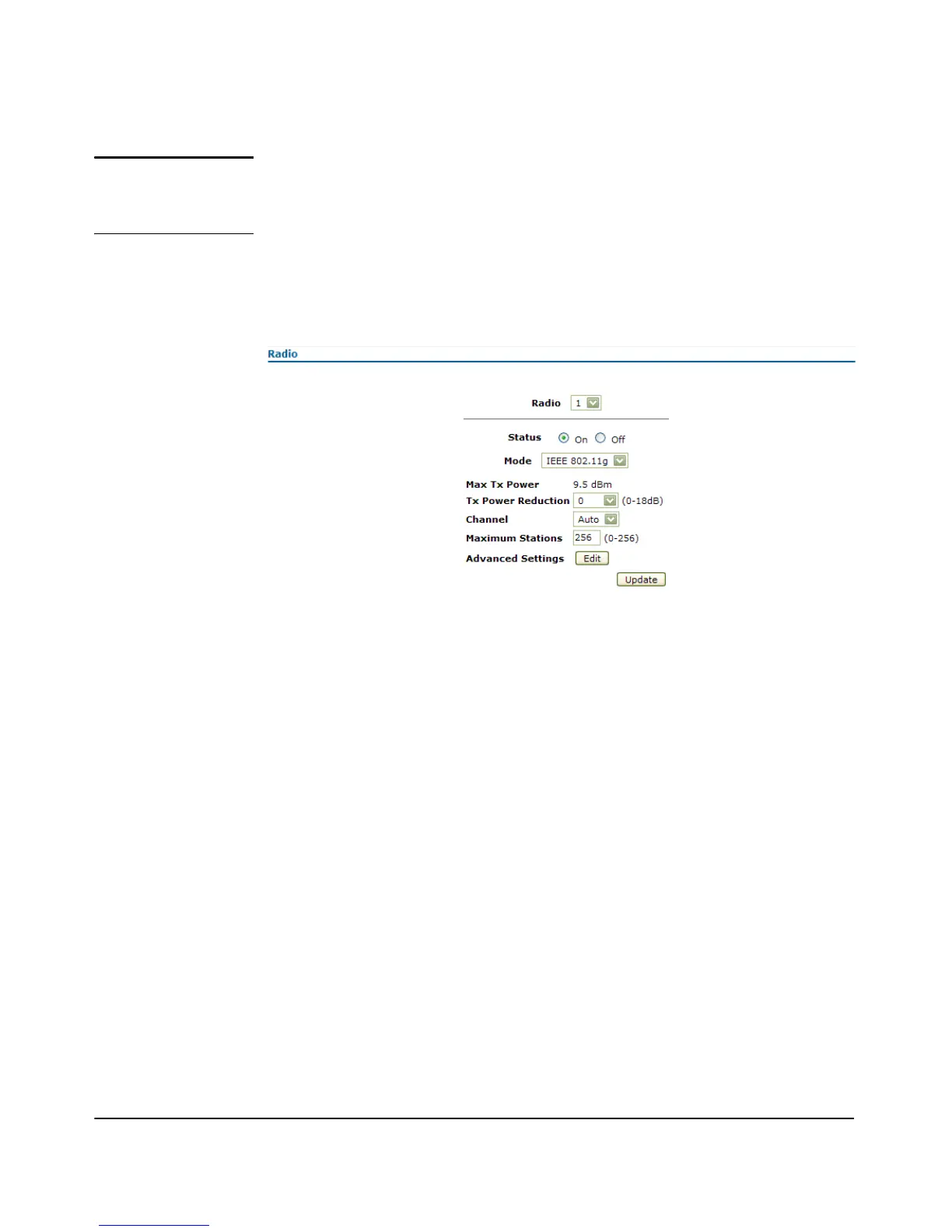

Figure 6-2. Configuring Basic Radio Settings
To Modify Basic Radio Settings:
1. Select Network Setup > Radio.
2. Select the radio channel from the drop-down.
If you are deploying access
points in the same area, see the key points summarized in section “Overview”
on page 6-3.
3. To set a limit on the number of stations accessing the access point, enter
a value within the applicable range in the Maximum Stations field.
4. Click
[Update].
