6-37
Wireless Interface Configuration
Managing Multiple WLAN (BSS/SSID) Interfaces
The following figure shows the configuration scenario to follow when
managing VLANs and SSID interfaces.

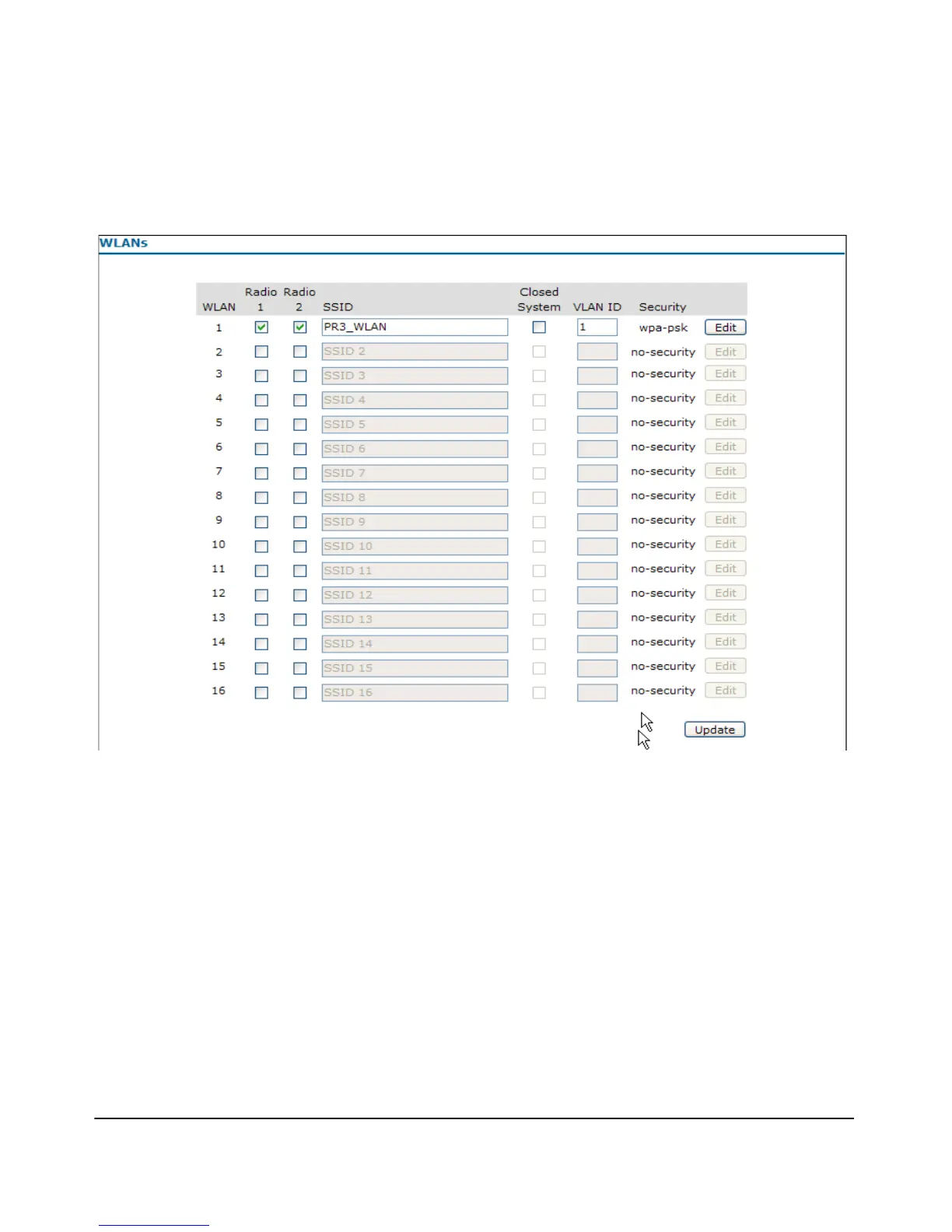

Figure 6-11. Configuring VLANs and SSID Interfaces
Web: Configuring SSID Interfaces
The WLANs tab, shown in Figure 6-11, enables you to configure SSIDs, VLANS,
and closed system settings. You can modify these parameters:
■ WLAN: Displays the WLAN index number, 1 through 16.
■ Radio 1/ Radio 2: Configures the access point to enable WLAN access
using either or both radios (when the appropriate box is checked).
■ SSID: Lists the access point’s SSID interfaces with their basic settings.
The
Enabled option auto-fills this field. The SSID is an alphanumeric string
of between 1 and 32 characters.
