6-19
Wireless Interface Configuration
Configuring the Radio
Configuring G- Only Mode

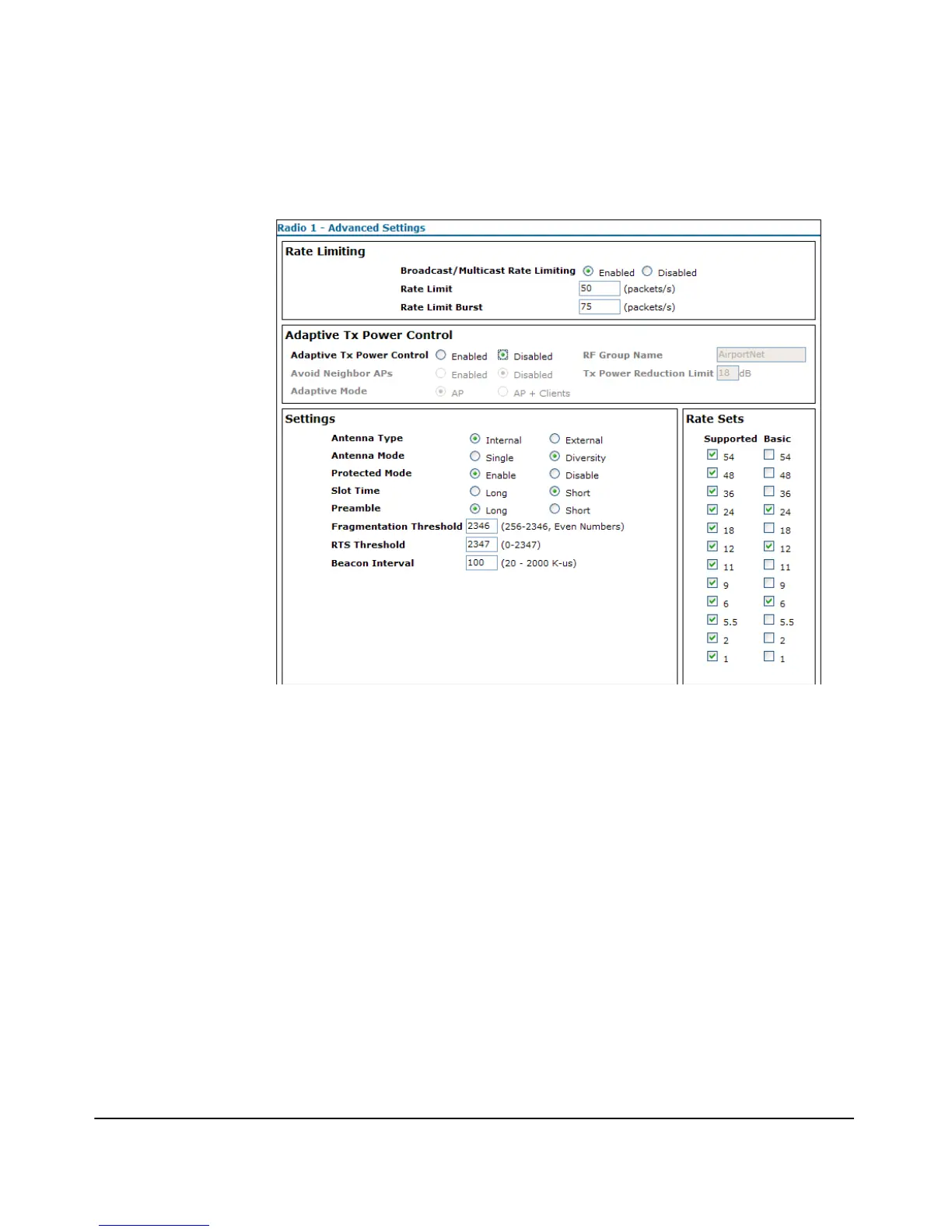

Figure 6-6. Configuring Wi-Fi G-Only Mode
To Configure Wi-Fi G-Only Mode:
This setting, shown in Figure 6-6, allows g-only stations to associate with the
AP. This is Wi-Fi standard-based g-only mode.
1. Select Network Setup > Radio.
2. Click Status On to enable the radio.
3. Select IEEE 802.11g Mode.
4. Click the Edit button for Advanced Settings. A pop-up window for Advanced
Settings opens (see Figure 6-6).
5. Select Enable for Protected Mode, to set this radio parameter.
6. Select rate set values (24, 12, and 6), using the Basic options.
7. Select
[Update] to set the advanced radio parameters.
