4-33
Using the ProCurve Web Browser Interface
Tasks for Your First ProCurve Web Browser Interface Session

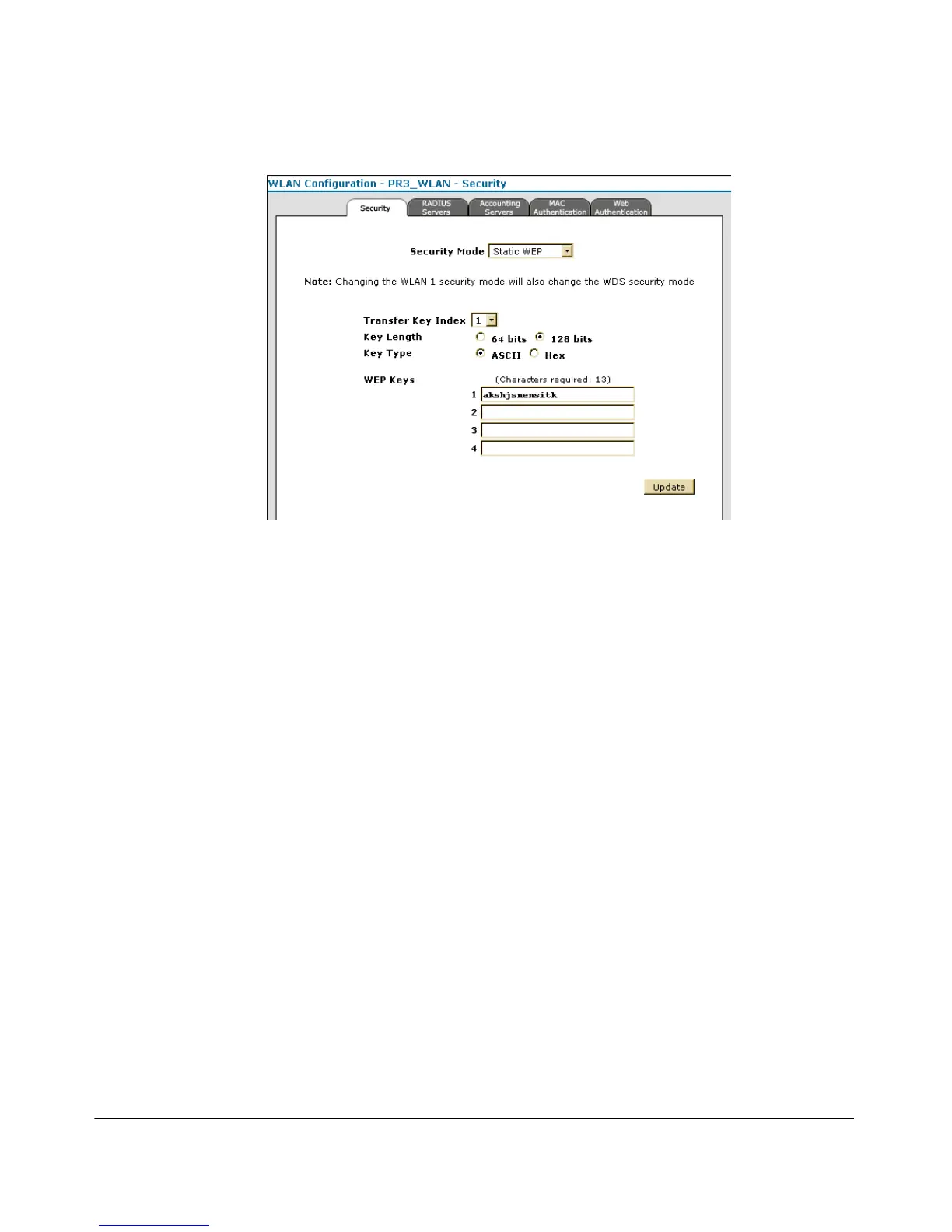

Figure 4-19. Configuring WLAN Security
To Configure WEP Security:
1. Select WLANs.
2. Check the Radio 1 box, and the SSID name and VLAN ID fields populate
with defaults.
3. Enter a unique SSID name in the SSID name field and check the Closed System
box to prevent broadcasting of the SSID.
4. Click
[Update] to save these IP settings.
5. Click the [
Edit] button to open the Security pop-up window (see Figure 4-
19).
6. Select Static WEP in the Security Mode drop-down.
7. Check Shared for the Authentication option.
8. Select 1 in the Transfer Key Index drop-down to be used for the SSID
interface.
9. Select the key length to be used by all stations either 64 or 128 (default)
bits.
10. Select the Key Type, Hex (default) or ASCII.
11. Enter one WEP key conforming to the length and type already selected. You
can enter up to 4 WEP keys at a time.
