17-19 Operators’ Manual

990400 Rev C 2010 May 1

13-10

Dose/Scan µSv

Position

cm

Diameter

16cm

Diameter

23cm

1

0.8 0.7

3

2.2 2.0

5

2.6 2.9

7

3.9 3.2

9

3.8 2.9

11

3.3 2.3

13

1.5 1.2

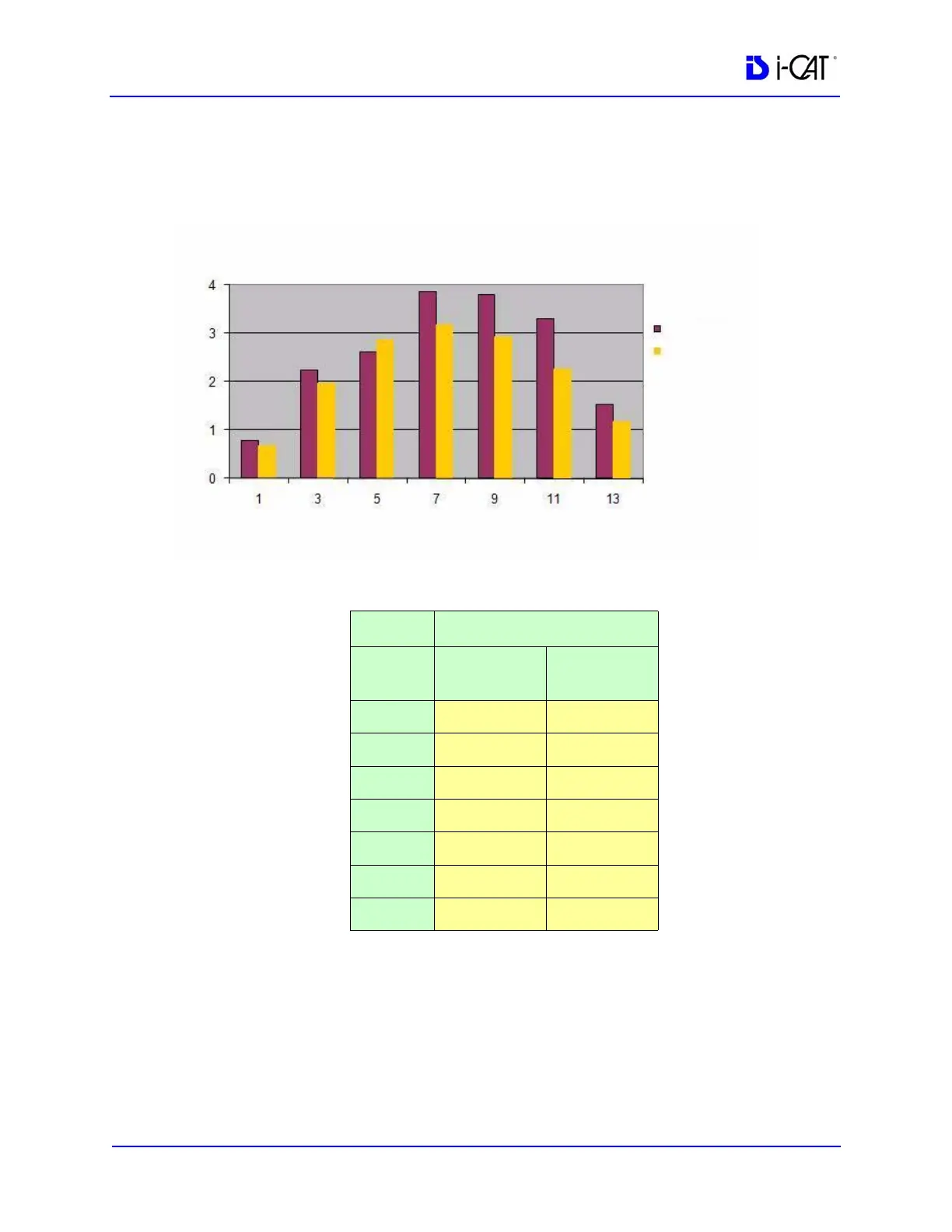

Vertical Dose Profile for Standard 8.9s Scans

Diameter 16cm

Diameter 23cm

Position cm

Dose/Scan µSv
