Distance
The distance tool measures linear distance.
To activate Distance tool:
1. Click Distance radio button.

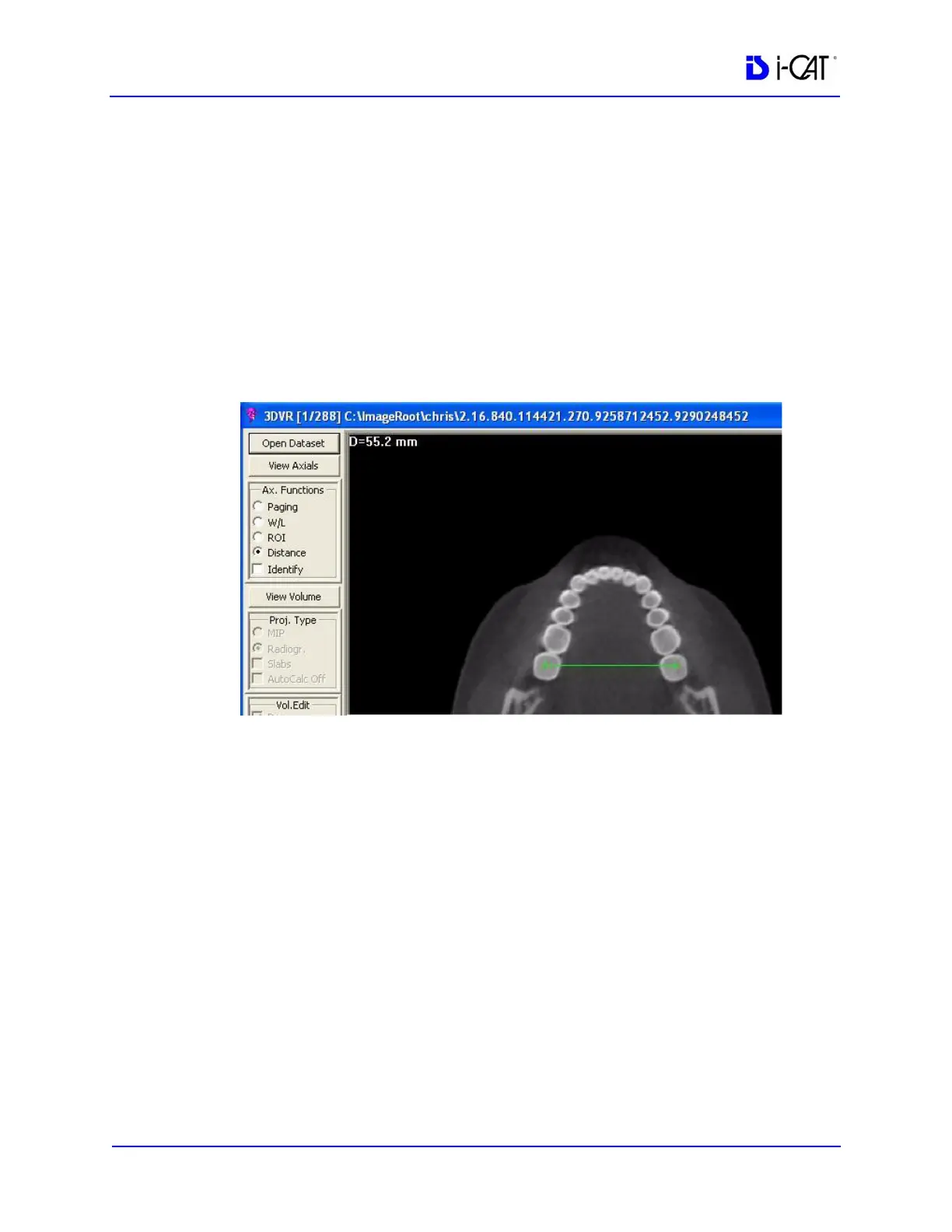

2. Drag cursor from point to point to create a measurement line (see
below in green).
Linear measurement is displayed in millimeters (upper left
corner.)
Identify
The Identify tool identifies areas of interest at different densities.
It is defaulted to detect the most dense anatomy or material.
This tool is often used to remove a piece of anatomy from the
image. One major use is to remove the Patient Chin Cup that
may appear in the scan. See the sample below (Patient Chin Cup
highlighted in blue.)
To activate Identify tool:
1. Click Identify Box.
The 3DVR Setup window is displayed and the dense material in
the Axial window is highlighted in blue.
