Patient Chair
There are two sets of mounting slots for the chair. Use the following
table as a guideline for initial placement of the chair:
CAUTIONCAUTION
Ensure chair is fully seated in slots to prevent movement when
chair is used.
The Chair height can be adjusted using the PATIENT ALIGN
buttons on Patient Alignment Panel. These controls allow
movement of the chair, up (▲) and down (▼), to facilitate Patient
alignment with the Chin Support.
Other factors to consider when positioning the Patient in the chair
are:
• Very tall patients (over 7’) may be required to slide down in
the chair to gain the proper alignment with the Sensor Panel.
• Shorter adults or children may require a footstool to
stabilize the feet.
• Children may need a booster seat to gain proper alignment.
Patient Height Chair Position
4’ 9” and Taller Lower Slots
Under 4’ 9” Upper Slots

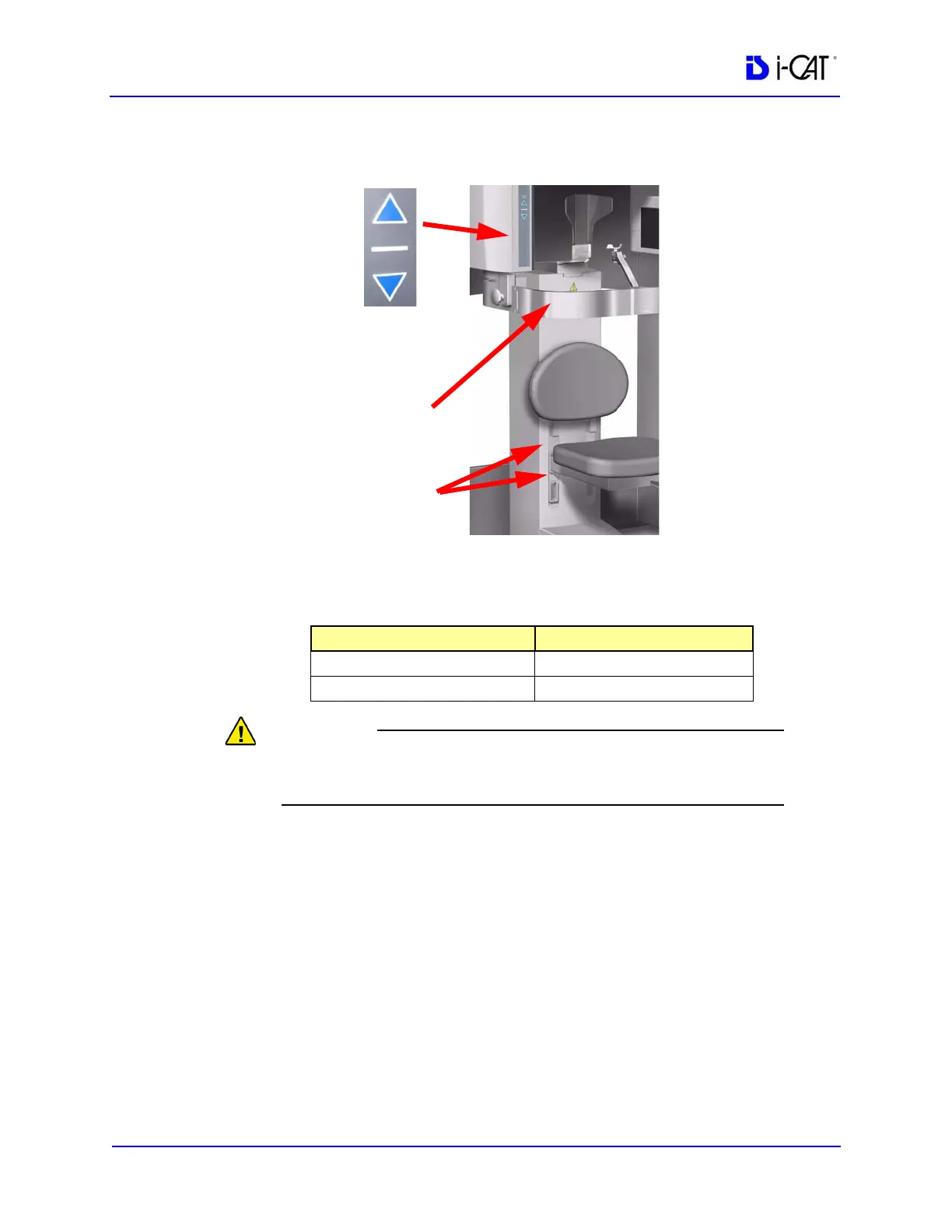

Patient Align
Buttons
Chair
Mounting
Slots
Gate
