Head Support and Head Strap.
The Head Support slides forward or backward for head stabilization.
The Patient’s head should be supported firmly between the Chin
Cup and Head Support. Grasp the Adjusting Knob and pull forward
or push backward to move the Head Support into the proper
position.
A Head Strap can also be used help stabilize the head. A Velcro
Head Restraint kit comes with the system. For initial use of the Head
Strap, the Velcro pads in the kit must be attached to the back of the
Head Support.
To Install Velcro Pads:
1. Loosen the Locking Knob and
remove the Head Support.
2. Attach pads and, if necessary, trim
to fit.
3. Insert Head Support and tighten
Locking Knob.

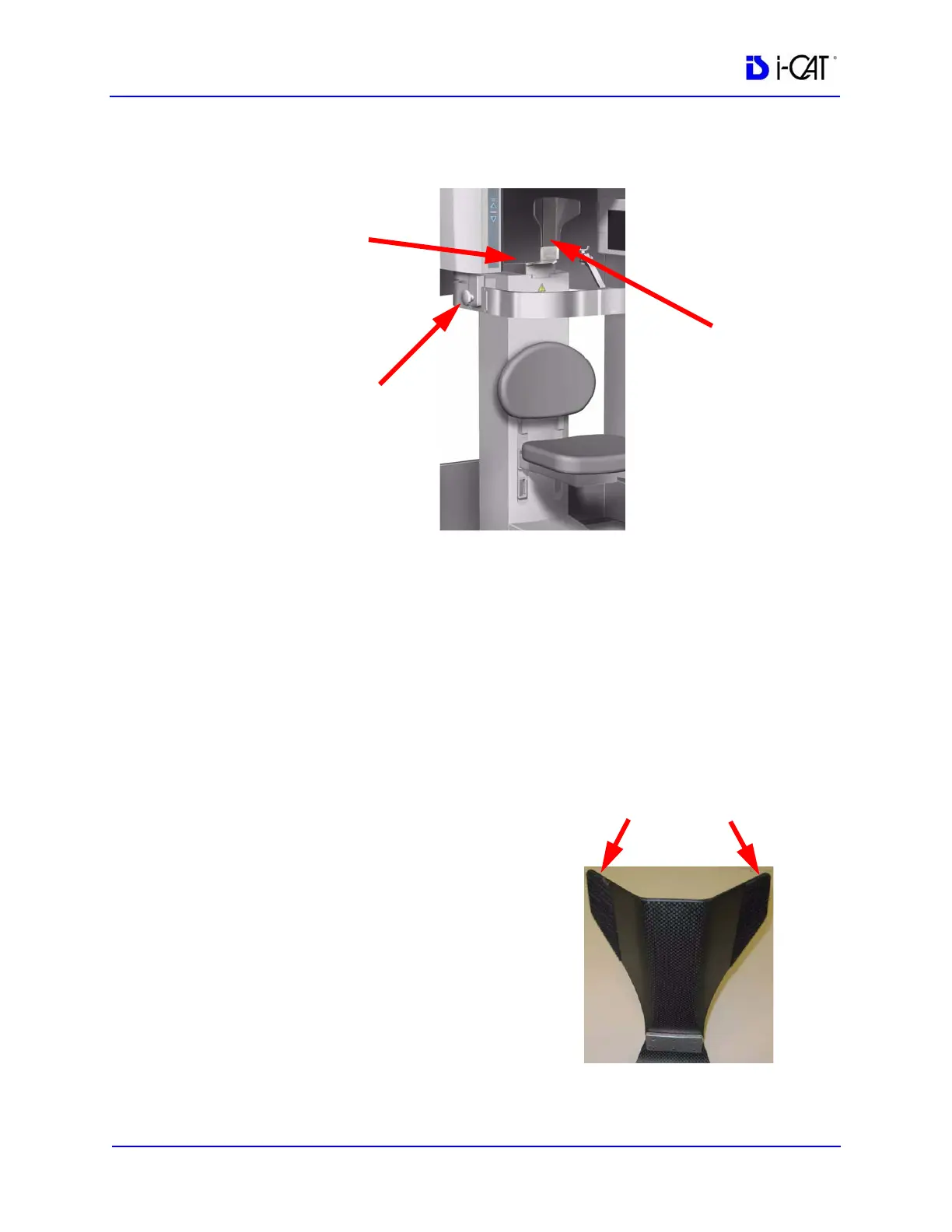

Head Support
Locking Knob
Head Support
Adjusting
Knob
Head Support
Velcro Pads
