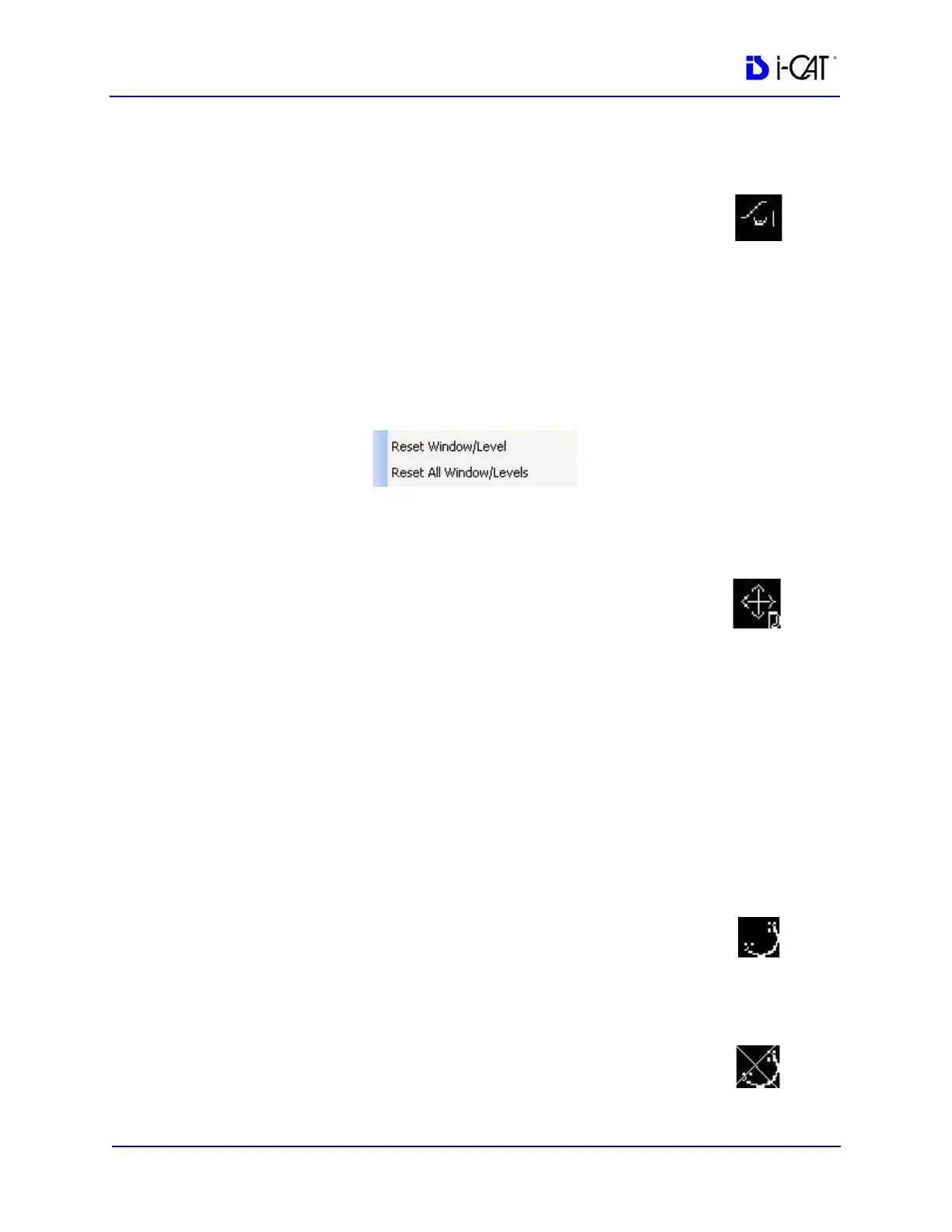

Adjusting Brightness and Contrast
All views include a window level Brightness/Contrast
cursor tool. By default, this cursor is displayed. When
cursor appears as shown, click and drag up/down and left/
right to adjust brightness and contrast.
• Brightness - left and right.
• Contrast - up and down.
NOTE: If brightness and contrast are changed, they can be reset for
the specific window/level, or for all window/levels that were
affected, using the reset options on the pop up menu.
Pan Feature
Most views allow panning left, right, up, or down in order
to view a desired portion of the displayed image.
To use the pan feature:
1. Move the cursor to the bottom left of the image where the pan
function is to be used. The pan cursor tool appears.
2. Click and drag up/down and left/right to pan to the desired
portion of the displayed image.
Rotation Feature
The Sagittal, Coronal and/or Axial views can be rotated.
To use rotate feature:
1. Hover the cursor over the lower right corner of the
desired view. The cursor changes to the rotation tool.
2. Using the rotation tool, click and drag to rotate the
selected image. A grid appears over the selected image to
provide a reference for rotation.
NOTE: The Volume Rotation feature is disabled on studies
that use the Tru-Pan feature. The cursor will have a cross
through it.
