Three Dimensional Volume Rendering (3DVR)
B-9
Projection Type
Projection Type enables viewing 3D data in 2 different projections
or modes: Radiographic and MIP.

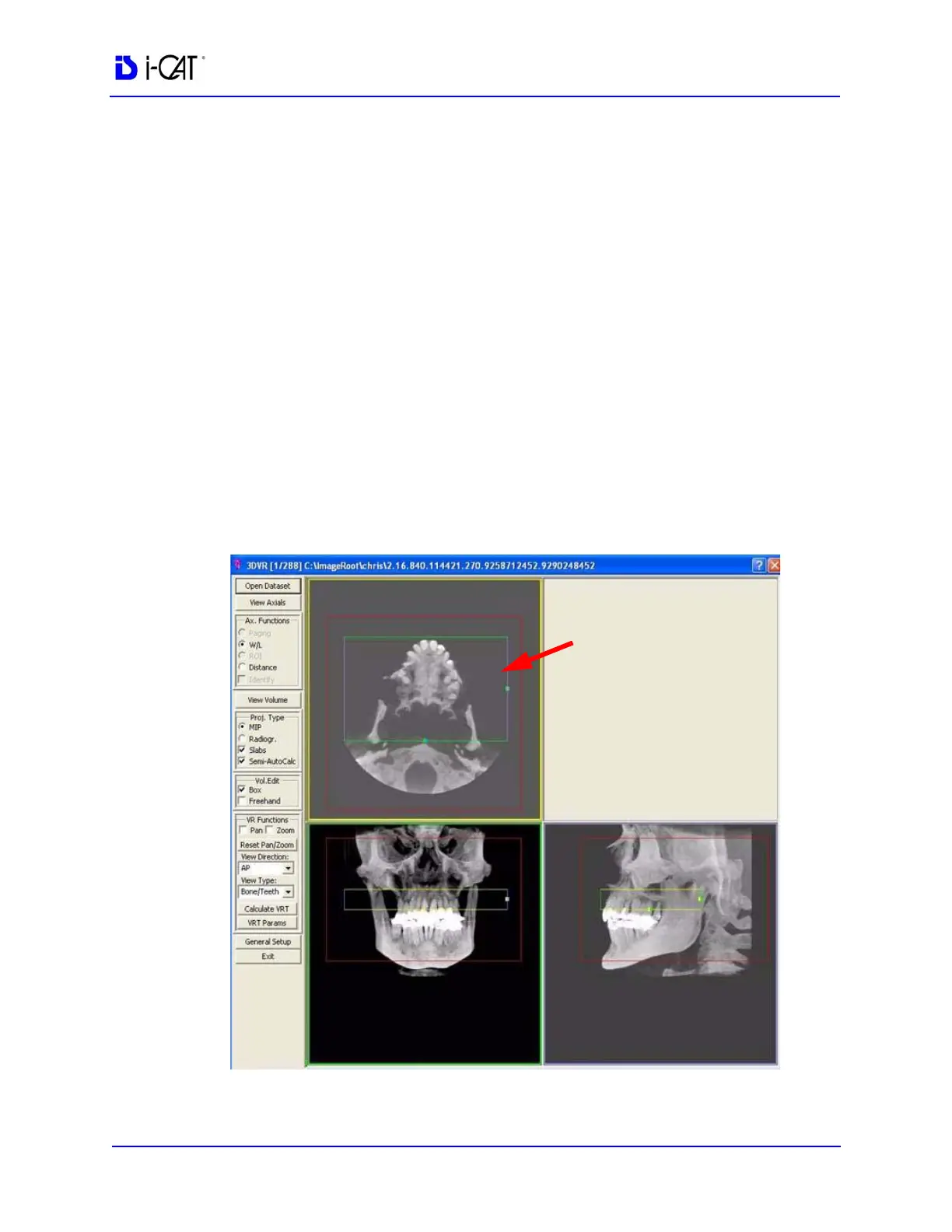

• Radiographic mode - The above example has
Radiographic mode enabled. The Axial, Coronal, and
Sagittal views are all in Radiographic mode.
NOTE: Window/Level can be adjusted in each of the 3 views by
dragging the cursor in each window.
• MIP mode - Maximum Intensity Projection (views
displayed below.)
• Slabs - Displays an additional box in each window which
can be sized and moved to change the areas of interest in the
other windows.
• Auto/Semi Auto Calc - calculates the image displays as the
Slab boxes are adjusted.
