Imaging Sciences i-Cat 17-19 - Interlock and Warning System Schematic

17-19 Operators’ Manual
990400 Rev C 2010 May 1
2-8

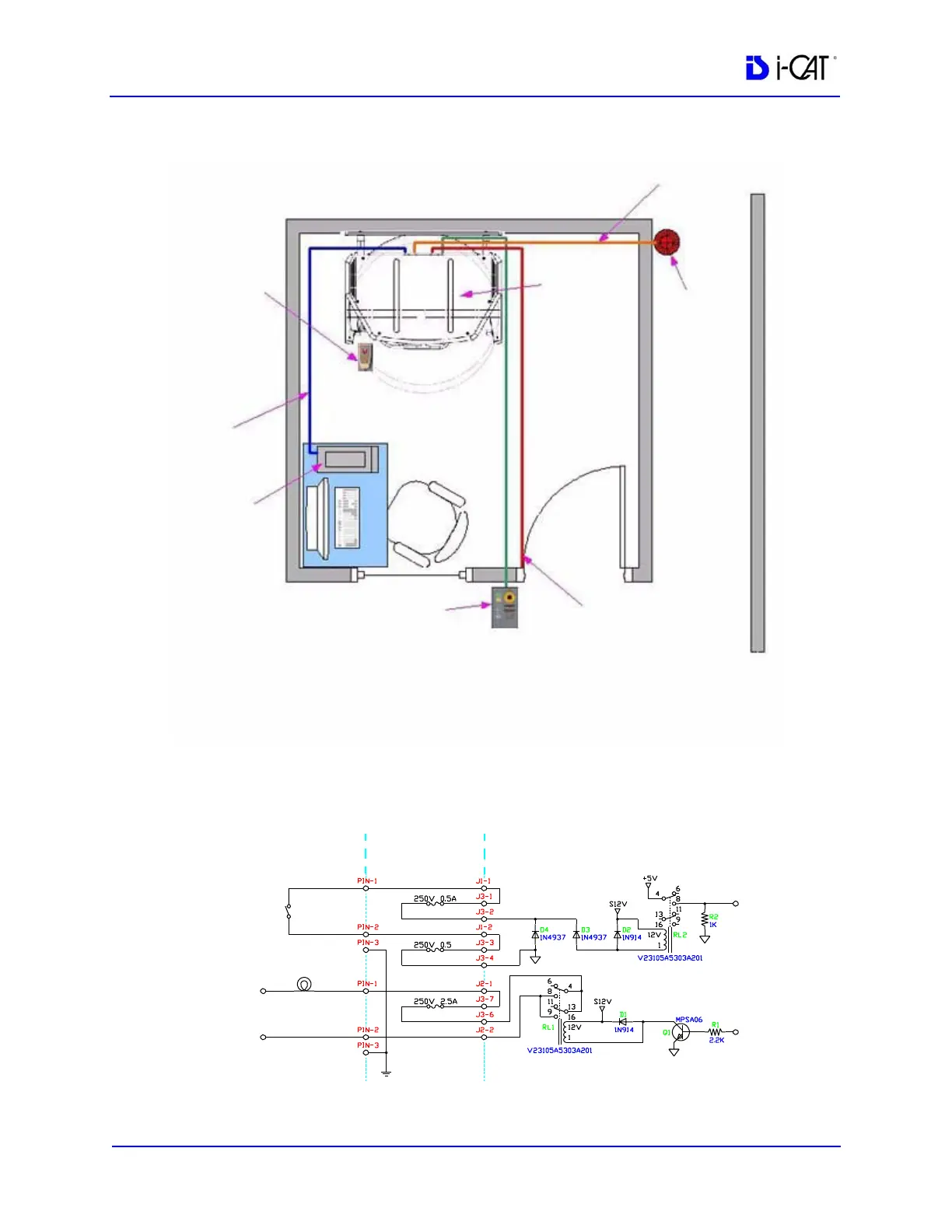

Interlock and Warning System Schematic
Patient
Emergency Stop
Box with
10 ft. [3m] Cable
CAT 5
Ethernet Cable
50 ft. (15.2m)
Computer
Workstation
Cable
50 ft. [15.2m]
(if used)
Warning
Light or Alarm
(not supplied)
Hallway
Interlock Cable
50 ft. [15.2 m]
(if used)
Interlock Switches
are not supplied
Scanner
Operator Control Box
with 50 ft. (15.2m) Cable
Room Size
8.5 x 8.5 feet [2.6 x 2.6 meters]
Customer
Connection
Back Panel
System Board
Interlock
System
Warning
System
Neutral
Return
Max. VAC 250V
Max. VDC 32 V
Max. Amps 1.5
Door Switch
Rating 12VD
100mA
Ground
Lamp
Ground Fuses
HIGH =
Door Close
Switch Close
OK to X-ray
HIGH
(X-ray ON)
Interlock
System
Warning System
Black
Red
