990400 Rev C 2010 May 1
Safety Items
2-7

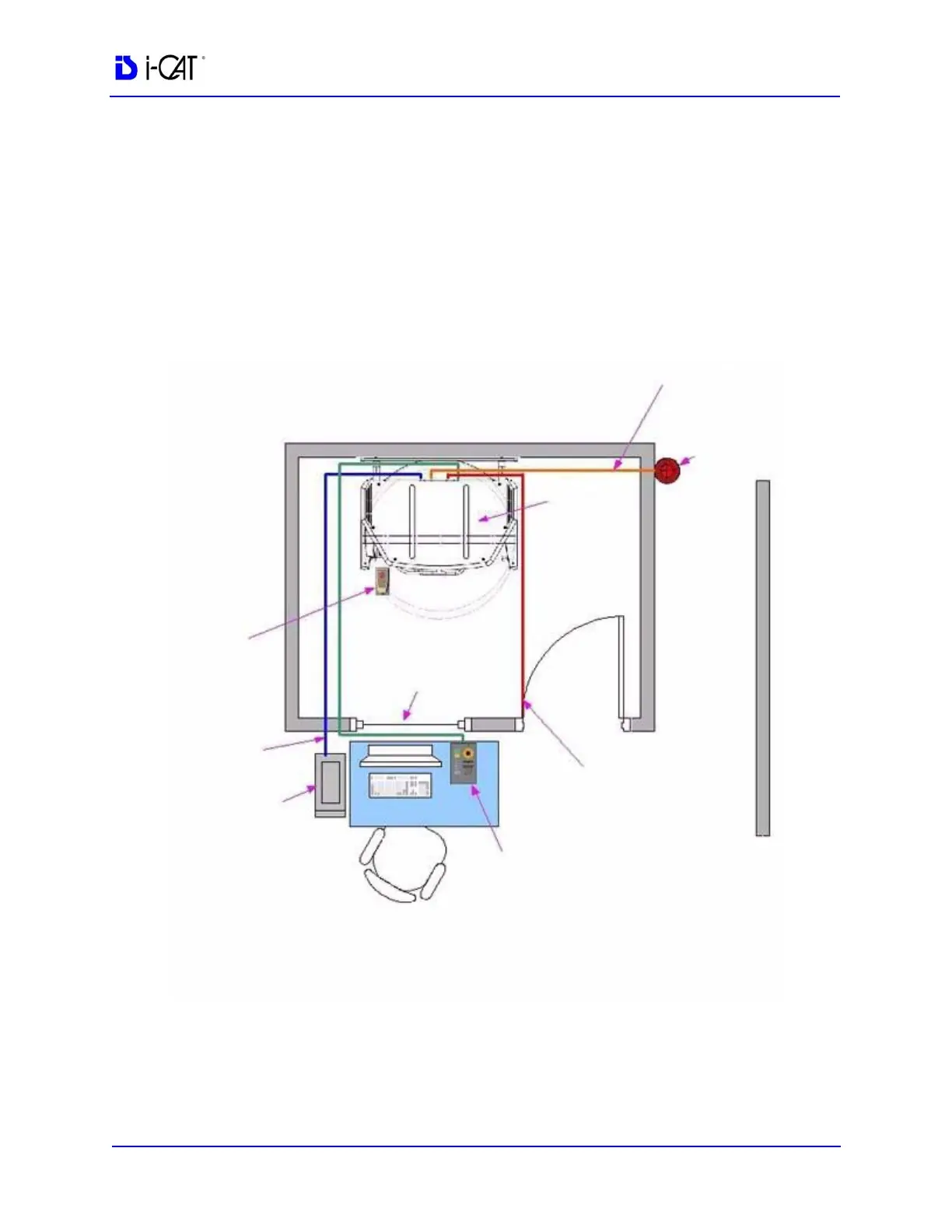

Sample Site Plan
Below are two typical scanning room layouts that illustrate the
system interconnect for the Warning System, Operator Control Box
(Emergency Stop) and Interlock System which are all describe
above. Room layouts must provide a means for audio and visual
communication between the Operator and Patient. The Patient
Emergency Stop Box, which can stop the operation of the X-ray
device, must be within reach of the Patient when scanning occurs.
Patient
Emergency Stop
Box with
10 ft. [3m] Cable
CAT 5
Ethernet Cable
50 ft. (15.2m)
Computer
Workstation
Warning System
Cable
50 ft. [15.2m]
(if used)
Warning
Light or Alarm
(not supplied)
Hallway
Interlock Cable
50 ft. [15.2 m]
(if used)
Interlock Switches
are not supplied
Scanner
Window
Operator Control Box
with 50 ft. (15.2m) Cable
Room Size
6.5 x 8.5 feet [2 x 2.6 meters]
