990400 Rev C 2010 May 1

B-1

Appendix

Three Dimensional Volume

Rendering (3DVR)

Open Database

3DVR is a standalone program which runs independently and is not

part of Vision.

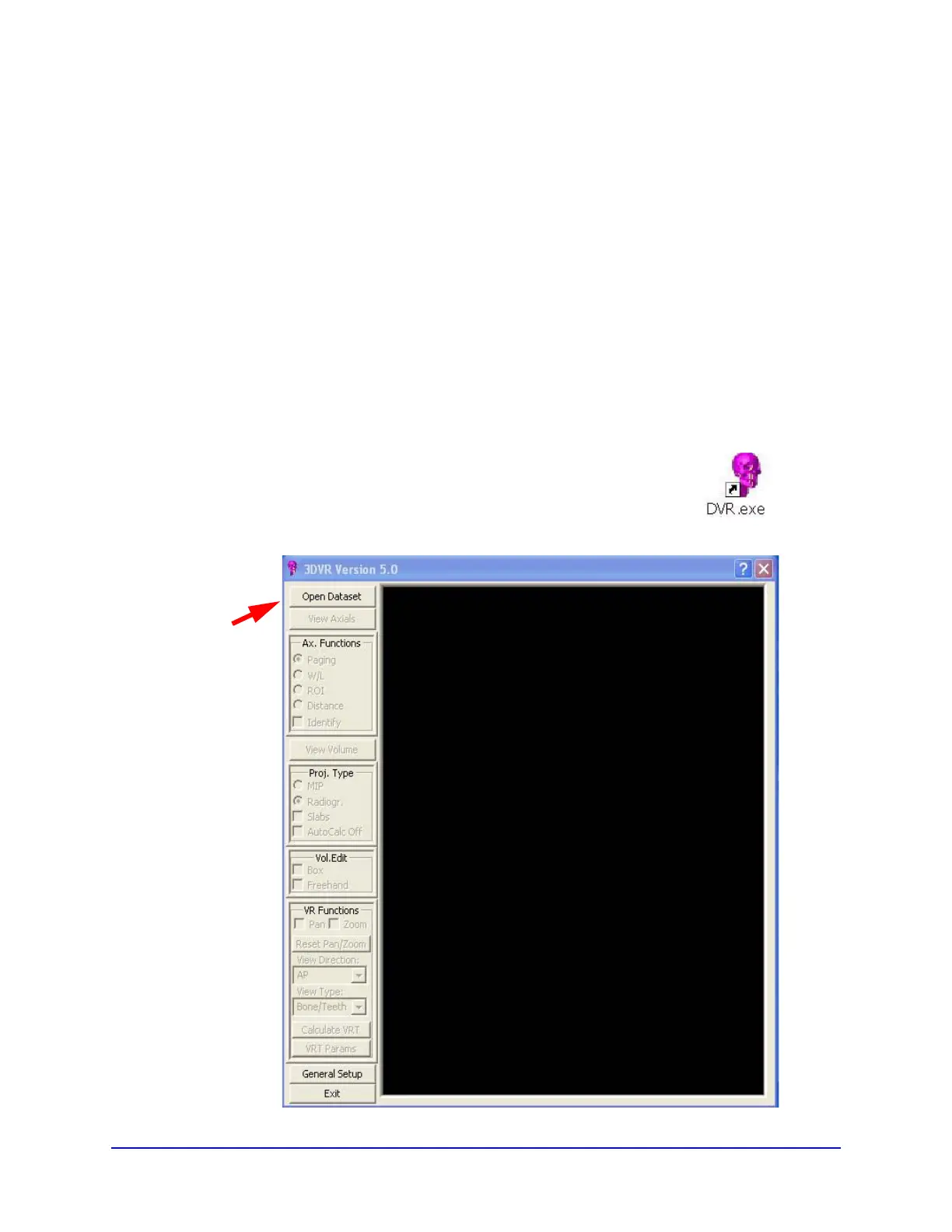

1. To open 3DVR, double click the 3DVR icon.

The Program Main menu is displayed.


