17-19 Operators’ Manual
990400 Rev C 2010 May 1
4-2

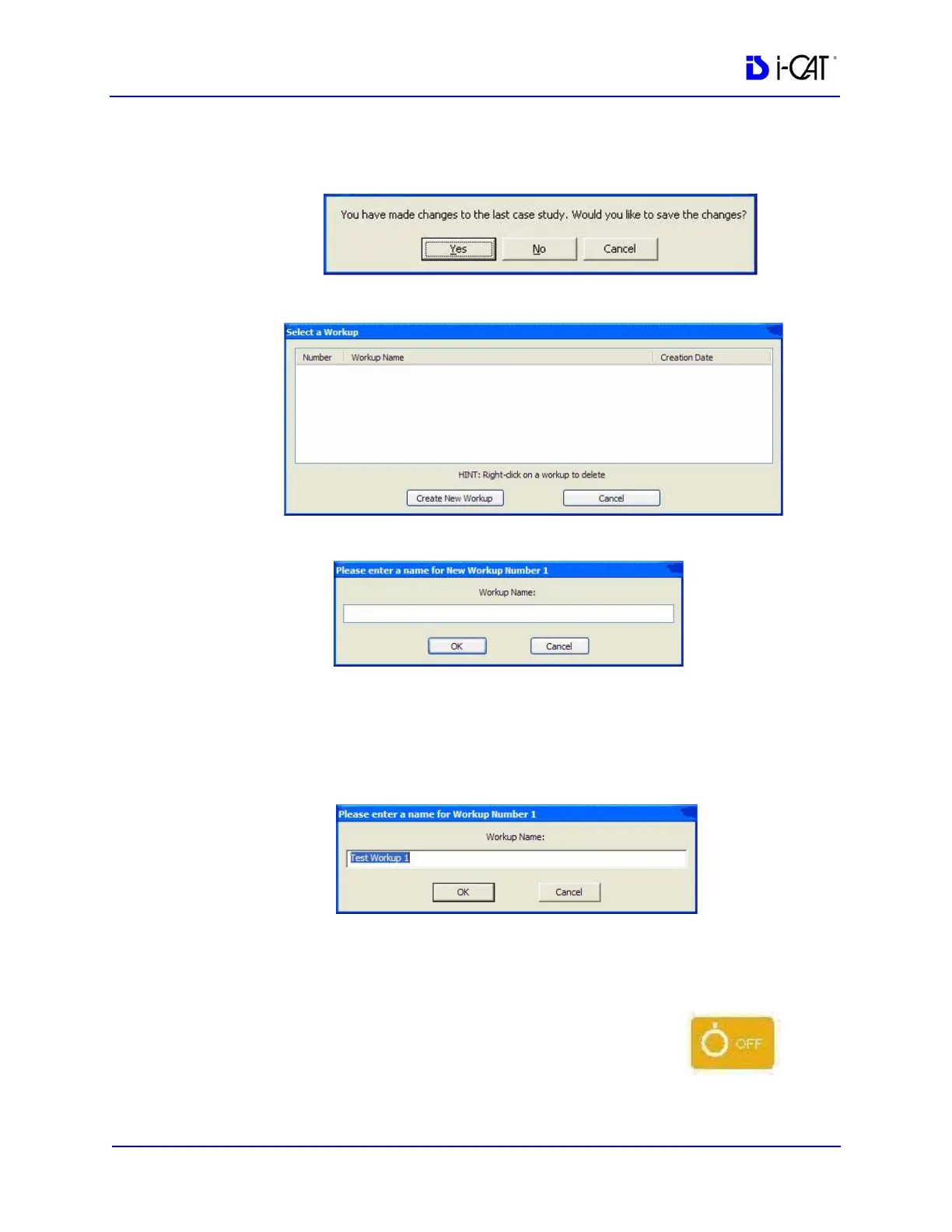

If changes were made to a case study, the following dialog box
appears.
a. Click Yes. The dialog box closes.
b. Click Create New Workup.
c. Enter a name for new Workup in the Workup Name: field.
Click OK
or
Overwrite an existing Workup by clicking an existing
Workup Name.
2. Power OFF Scanner: press the OFF button on the Main
Control Box. The Scanner shuts down and the POWER
indicators on the Main Control Box and Scanner go OFF.
3. Power OFF Computer Workstation: from the
Windows desktop, select Start > Shut Down and
then select Shut Down and press OK. The
Computer shuts down and the POWER indicator
on the Workstation goes OFF.
