6-6
17-19 Operators’ Manual
990400 Rev C 2010 May 1
• Horizontal light - Position at the Occlusal Plane between the
lips (smile line).
• Vertical light - Position at 1.5 inches in front of condyles.
NOTE: Make sure that the turret has enough clearance as to NOT
brush the Patient’s shoulders as it rotates. This may cause
movement. Perform a Dry Run, as described in the next chapter, if
clearance is uncertain.
The horizontal Alignment Light may vary slightly depending on the
Patient position according to the selected height of scan desired,
refer to taking a Preview, in the next chapter, to ensure that the
target area of interest is in the image.

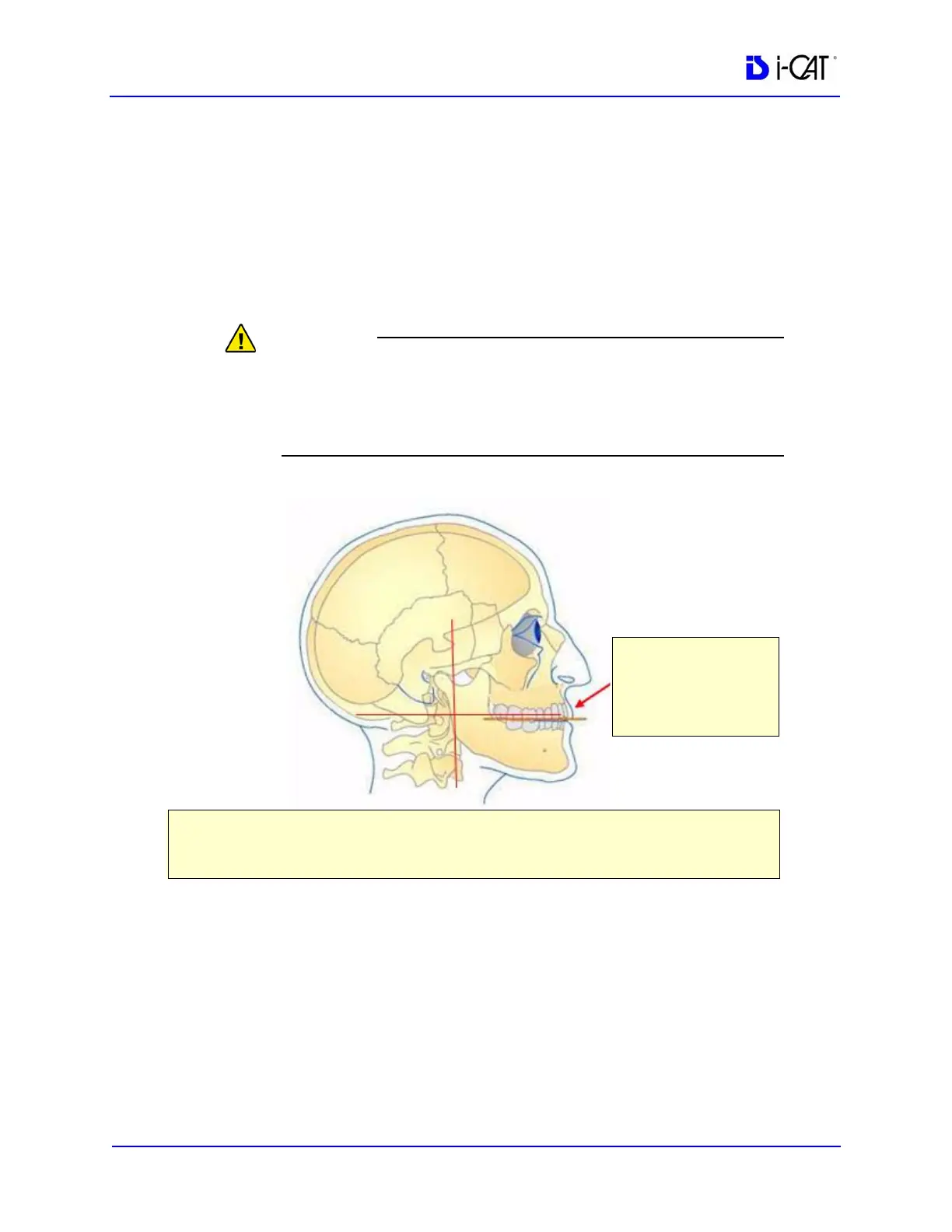

Occlusal Plane Flat,
Frankfurt Plane tilted
up slightly.
Position of Alignment Lights:
Horizontal: Occlusal plane between the lips.
Vertical: 1.5 inches in front of condyle (chin support adjusted to acquisition position).
