4. Select a Size of Reconstructed Volume from the drop-down list
to indicate the Diameter position of the X-ray sensor.
• 2 arches/anchor, 8.9 seconds, 0.3 Voxel - recommended
when data is exported to implant planning software systems
such as Nobel or SimPlant.
Please check with your service to determine the desired
height of the scan. Please be aware that 3rd party software
may have specific requirements for resolution settings that
can be imported.
• Mandible or Maxilla… - Protocols can be used if only 1
arch is required for an Implant case.
• High Resolution (0.125, 0.2, 0.25, 26.9 seconds) -
recommended protocols for specialized cases such as 3rd
molars, root canal relationships, small root fractures,
supernumerary or impacted teeth, periodontal condition and
other anatomy requiring detailed visualization.
• Diameter 23 - Height 17 cm (0.4 or 0.3 Voxel) (licensed
option) - should be used for adult Patients where
cephalometric data is required. The 600 frame Enhanced
(17.8 seconds) setting provides a more detailed scan and is
recommended for initial capture of a study. The 300 frame
(8.9 seconds) setting provides a scan with less detail and
may be sufficient for follow-up studies.

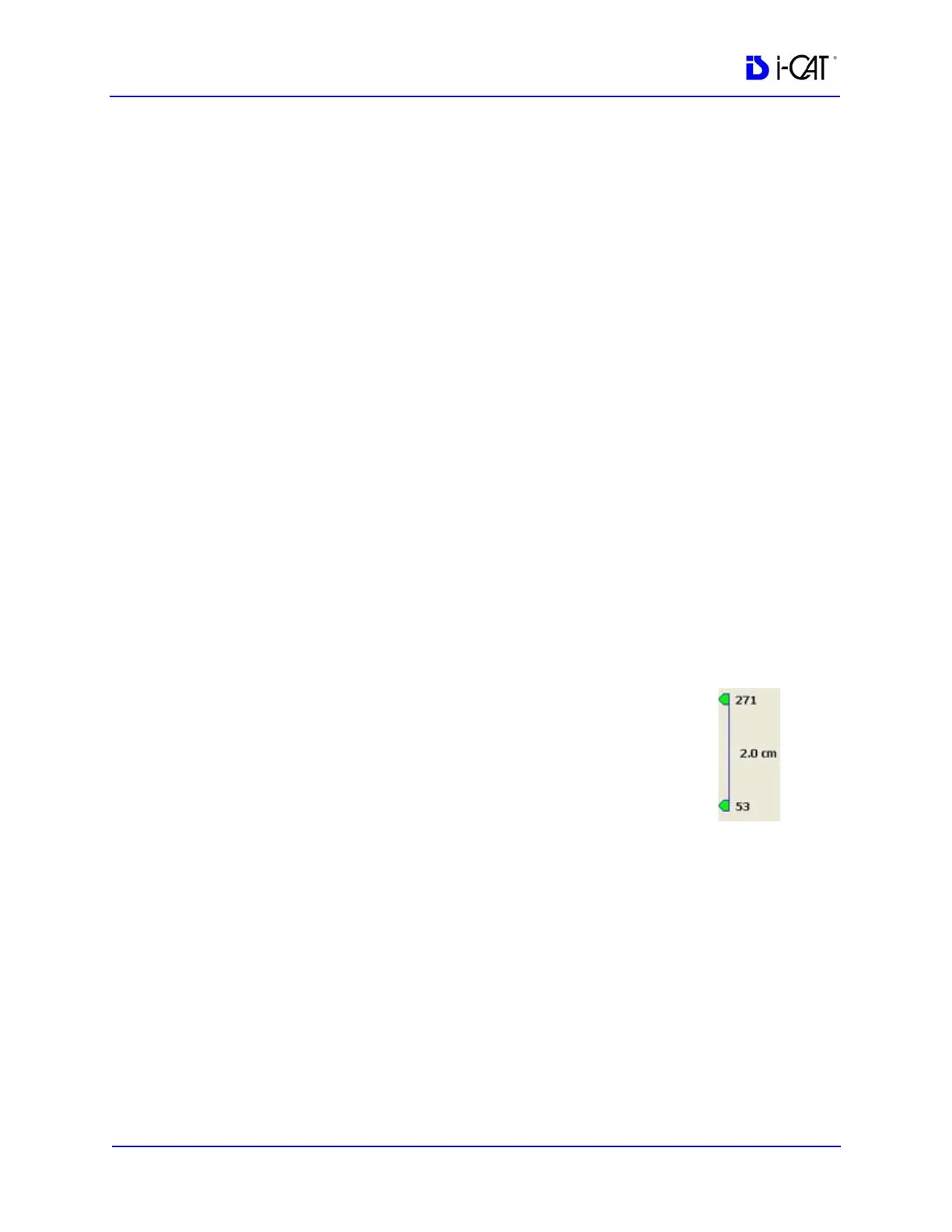

• Custom - enables custom adjustment of
collimator. Click and drag top and bottom
handles to increase or decrease the FOV.
Smallest FOV is 1 cm above and below the
beam. For the 0.125 resolution setting, the
height adjustment is limited and the handles will
not move when the height limit is reached.
• Sure Smile Studies - must be acquired at:
Size: Diameter 16 cm, Height 13 cm
Resolution: 0.25 voxel, 26.9 Seconds
Quantum IQ: NOT selected
Studies then must be reconstructed at :
Size: Diameter 16 cm, Height 8 cm
Resolution: 0.2 voxel, 26.9 Seconds
Quantum IQ: NOT selected
See
Export Sure Smile Studies for more information on
reconstructing and exporting Sure Smile studied.
