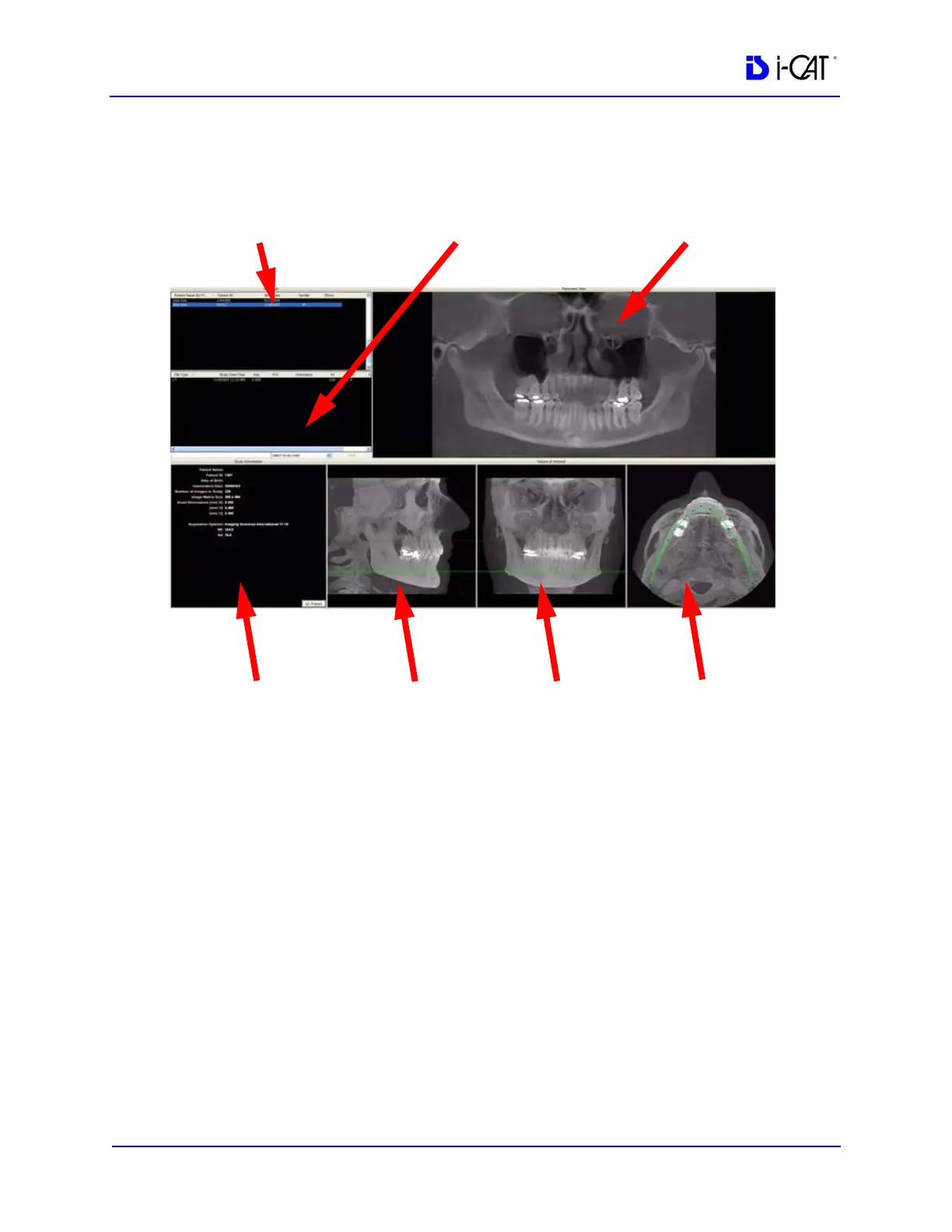

Once data is successfully reconstructed, the Preview screen appears
as shown below, showing the Panoramic, Sagittal, Coronal, and
Axial views of the skull through midline.
The Preview Screen is divided into seven views:
• Patients in Database
• Patient Images
• Patient Detail View
• Panoramic View
• Sagittal View
• Coronal View
• Axial View
Patients in Database lists all Patients and their data who are entered
into the database.
Patient Images lists all images that pertain to the selected
(highlighted) Patient from the Patients in Database list.
PATIENT DETAIL
VIEW
SAGITTAL
VIEW
CORONAL
VIEW
AXIAL
VIEW
PATIENT DATABASE PATIENT IMAGES PANORAMIC VIEW
