6 Root (:) Commands
:MTERegister[:EVENt] (Mask Test Event Event Register)
(see page 798)
Query Syntax
:MTERegister[:EVENt]?
The :MTERegister[:EVENt]? query returns the integer value contained in the Mask
Test Event Event Register and clears the register.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
See Also • "Introduction to Root (:) Commands" on page 135
• ":CHANnel<n>:PROTection" on page 217
• ":OPEE (Operation Status Enable Register)" on page 148
• ":OPERegister:CONDition (Operation Status Condition Register)" on page 150

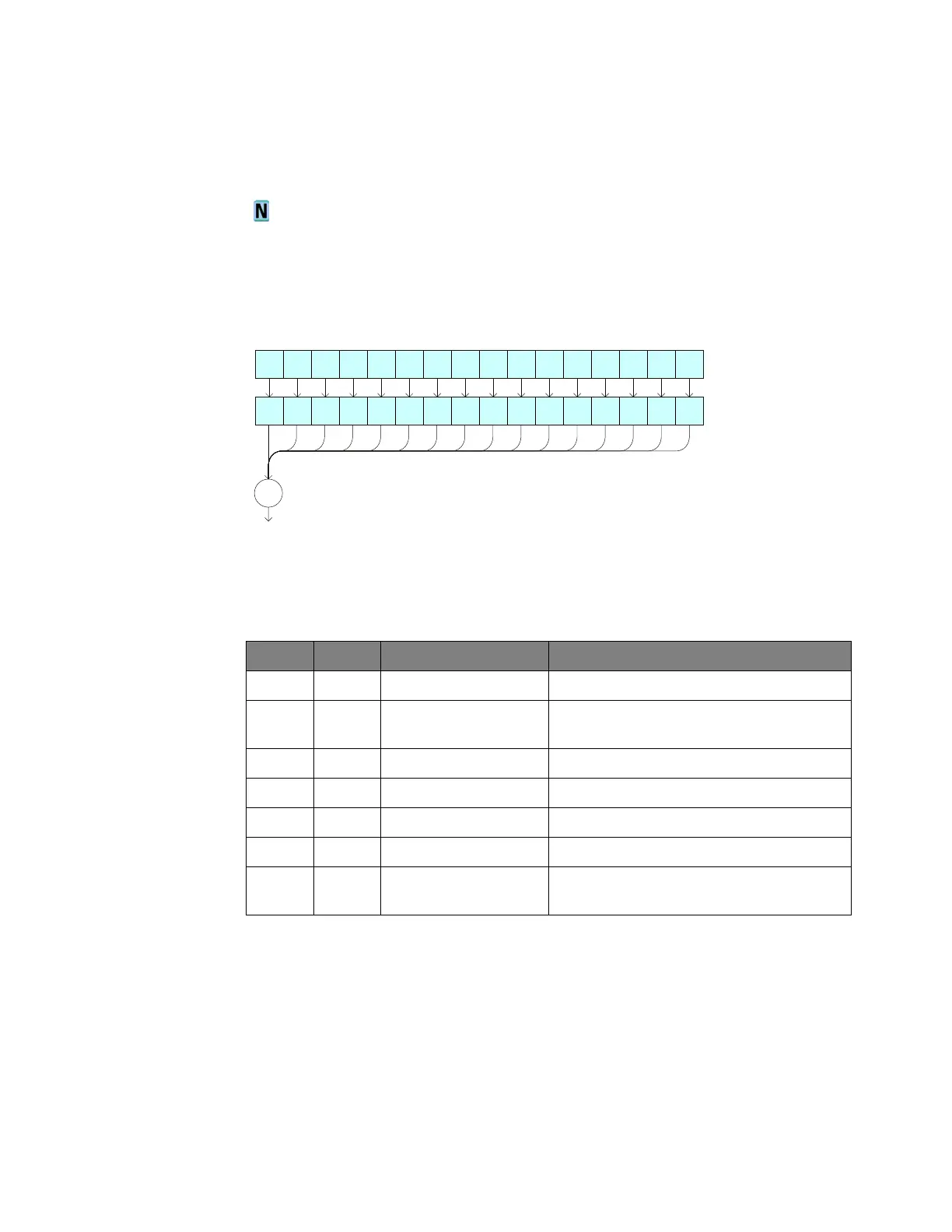

Table 46 Mask Test Event Event Register
Bit Name Description When Set (1 = High = True), Indicates:
15-11 --- --- (Not used.)
10 Auto
Mask
Auto Mask Created Auto mask creation completed.
9 --- --- (Not used.)
8 Started Mask Testing Started Mask testing started.
7-2 --- --- (Not used.)
1 Fail Mask Test Fail The mask test failed.
0 Complet
e
Mask Test Complete The mask test is complete.
To MTE bit in
Operation Status
Condition Register

OR
:MTEenable
:MTEenable?
Mask Test Event Enable (Mask) Register
1023456798101112131415
:MTERegister[:EVENt]?
Mask Test Event Event Register
Fail
Com-
plete
Auto
Mask
Started
