Step 2. Connect and set up the oscilloscope
The DSOX1204A/G oscilloscope has two interfaces you can use for programming:
• USB (device port).
• LAN. To configure the LAN interface, press the [Utility] key on the front panel,
then press the I/O softkey, then press the Configure softkey.
These interfaces are always active.
Using the USB (Device) Interface
1 Connect a USB cable from the controller PC's USB port to the "USB DEVICE"
port on the back of the oscilloscope.
This is a USB 2.0 high-speed port.
Using the LAN Interface
1 If the controller PC is not already connected to the local area network (LAN), do
that first.
2 Contact your network administrator about adding the oscilloscope to the
network.
Find out if automatic configuration via DHCP or AutoIP can be used. Also, find
out whether your network supports Dynamic DNS or Multicast DNS.

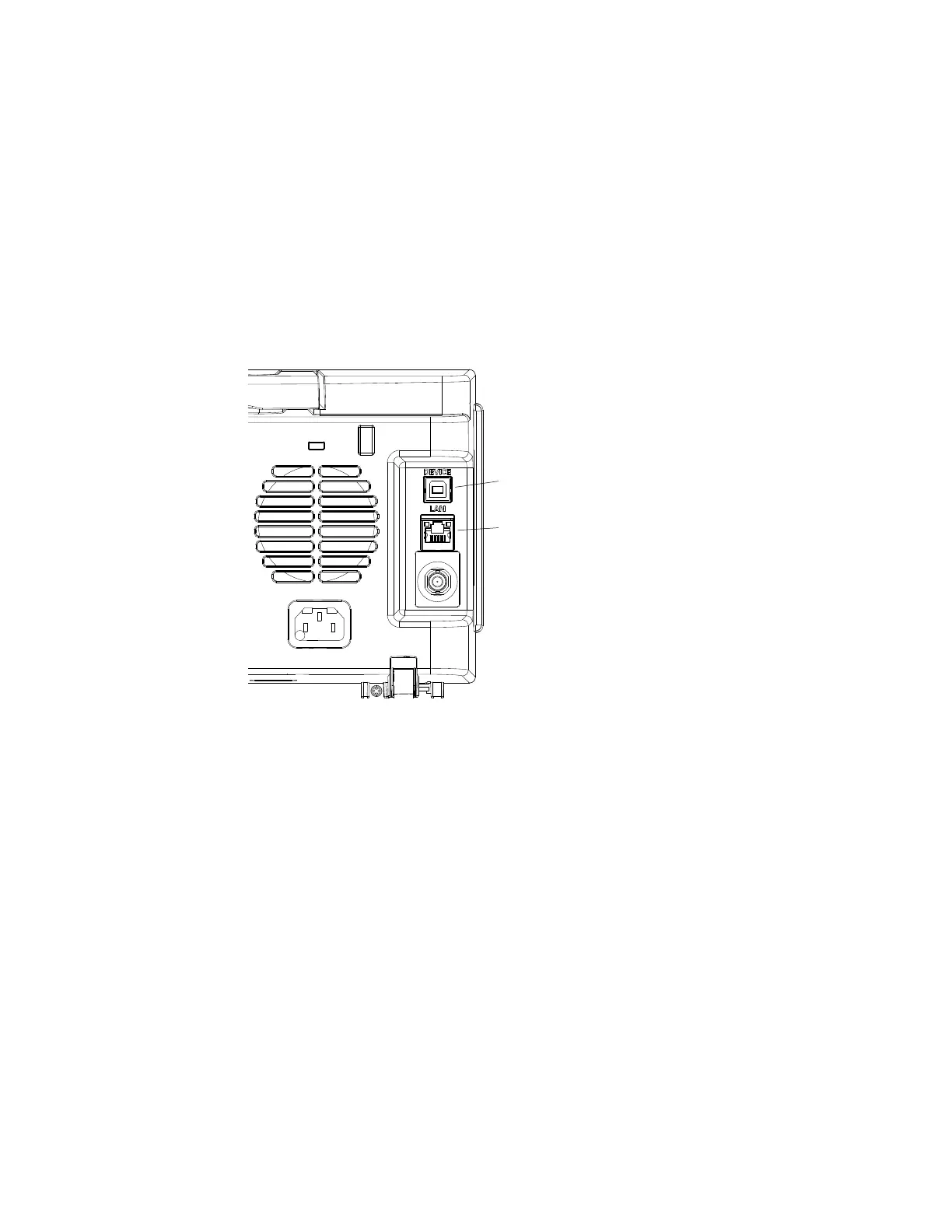

Figure 1 Control Connectors on Rear Panel
