148 Keysight InfiniiVision DSOX1204A/G Oscilloscopes Programmer's Guide
6 Root (:) Commands
:OPEE (Operation Status Enable Register)
(see page 798)
Command Syntax
:OPEE <mask>
<mask> ::= 15-bit integer
The :OPEE command sets a mask in the Operation Status Enable register. Set any
of the following bits to "1" to enable bit 7 in the Status Byte Register and
potentially cause an SRQ (Service Request interrupt to be generated.

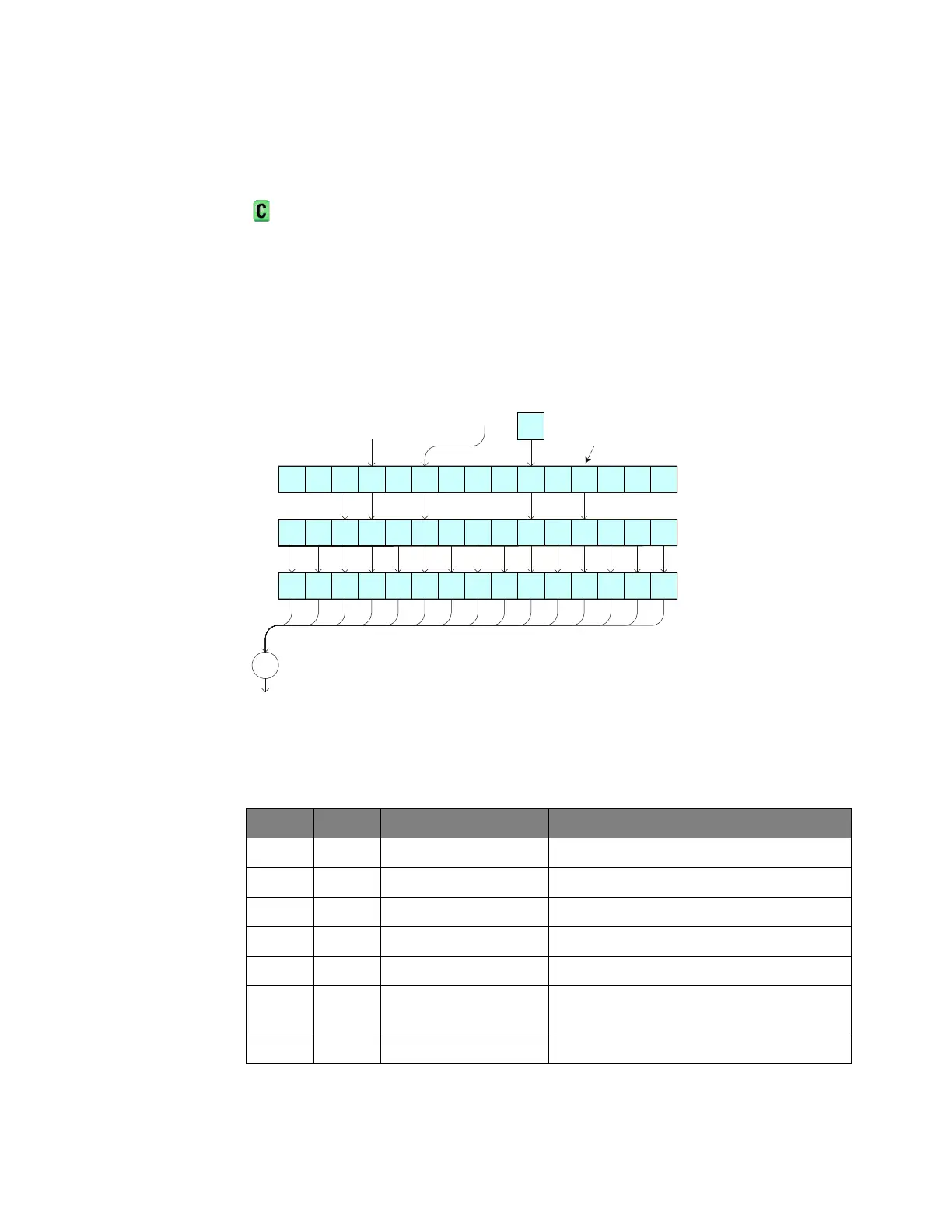

Table 47 Operation Status Enable Register (OPEE)
Bit Name Description When Set (1 = High = True), Enables:
14-12 --- --- (Not used.)
11 OVLR Overload Event when 50Ω input overload occurs.
10 --- --- (Not used.)
9 MTE Mask Test Event Event when mask test event occurs.
8-6 --- --- (Not used.)
5Wait
Trig
Wait Trig Event when the trigger is armed.
4 --- --- (Not used.)
Wait
Trig
Ru n
Arm
Reg
AER?
Run bit set if oscilloscope not stopped
:OPEReration:CONDition?
Operation Status Condition Register
:OPEE
:OPEE?
Operation Status Enable
(Mask) Register
From Overload
Event Registers
To OPER bit in
Statu s Byte
Register
OVL R

OR
10234567981011121314
Wait
Trig
Ru n
:OPERation[:EVENt]?
Operation Status Event Register
OVL R
11
5 3
From Mask Test
Event Registers
MTE
MTE
9
