Kyocera FS-C8600DN Service Manual

2MN/2N1
1-3-101
U246 Setting: [Booklet Pos]
1. Select [Booklet Pos1], [Booklet Pos2] or [Booklet Pos3].
2. Change the setting value using the numeric keys.
When the centerfold position too far right (sample 1), increase the preset value. When the
centerfold position too far left (sample 2), decrease the setting value.
Reference value A: A4, Letter: Length of paper × 1/2 ± 2 mm
A3, Ledger, B4: Length of paper × 1/2 ± 3 mm

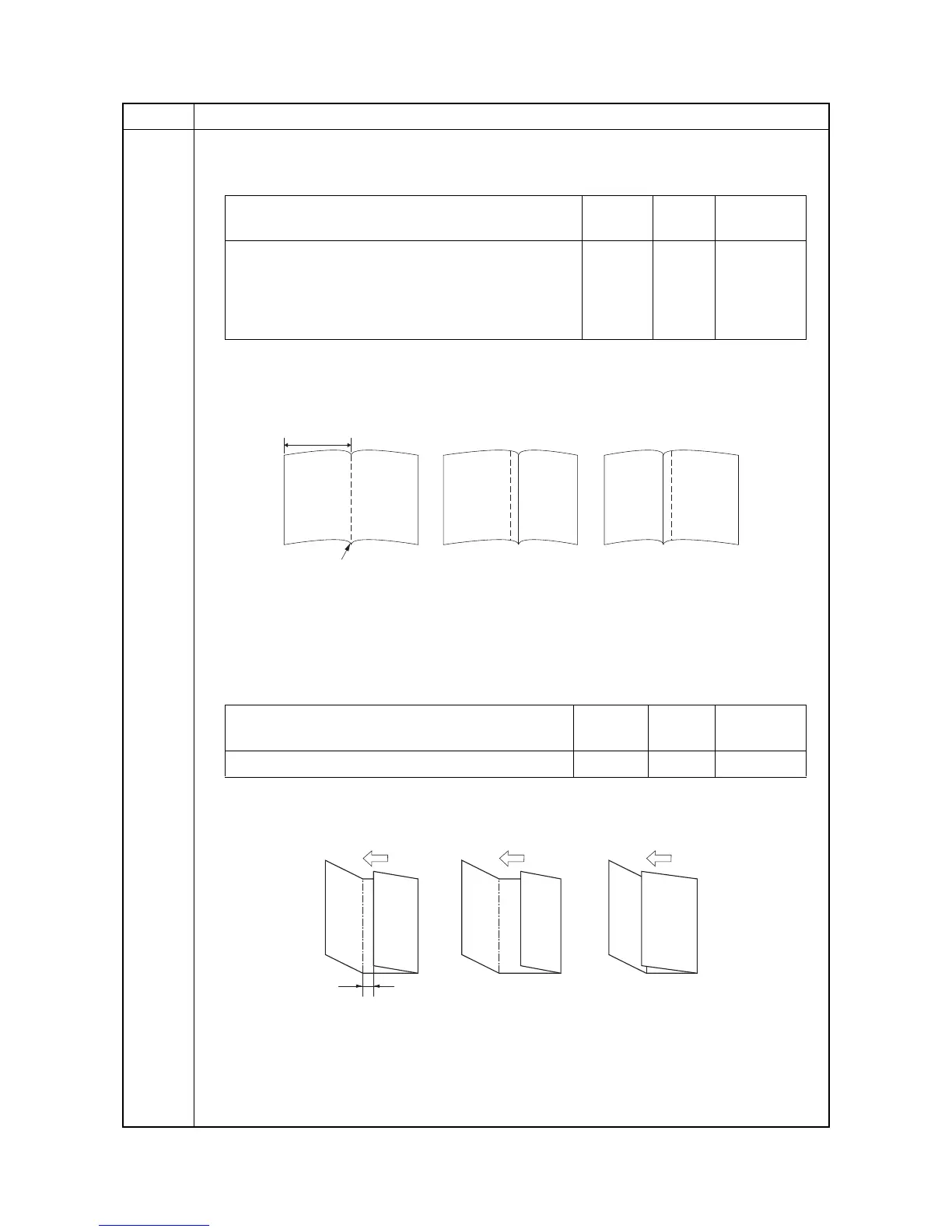

Figure 1-3-12
3. Press the OK key. The value is set.
Setting: [Three Fold]
1. Select [Three Fold].
2. Change the setting value using the numeric keys.
When the tri-fold position too far right (sample 1), increase the preset value. When the tri-fold
position too far left (sample 2), decrease the setting value.
Reference value A: 7.0 ± 2 mm
Figure 1-3-13
3. Press the OK key. The value is set.
Completion
Press the Back key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of center folding position for A4/Letter size -15 to 15 0 0.32 mm
Adjustment of center folding position for B4/Legal size -15 to 15 0 0.32 mm
Adjustment of center folding position for A3/Ledger/
8K size
-15 to 15 0 0.32 mm
Sample 2
Sample 1
A
Center line
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of tri-folding position -15 to 15 0 0.32 mm
A
Sample 1 Sample 2

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
