Kyocera FS-C8600DN - Page 376

2MN/2N1
1-5-58

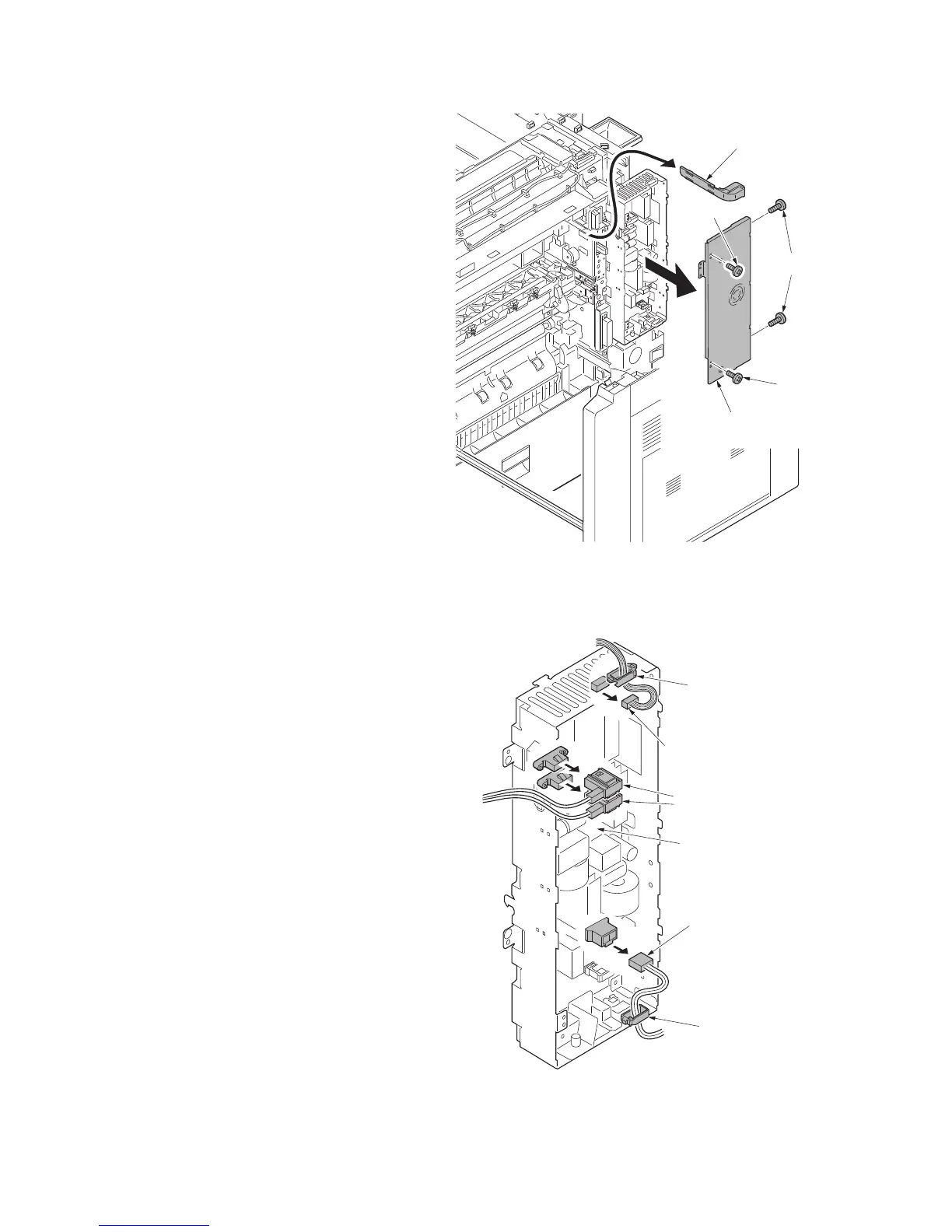

9. Remove four screws and the remove
the fuser IH PWB cover.
10. Remove the IH electric wire cover.
Figure 1-5-88
11. Release two wire saddles.
12. Remove four connectors from the fuser
IH PWB.
Figure 1-5-89
Screws
Screw
Screw
IH electric wire cover
Fuser IH PWB cover
Fuser IH PWB
Wire saddle
Wire saddle
Connector
Connectors
Connector
