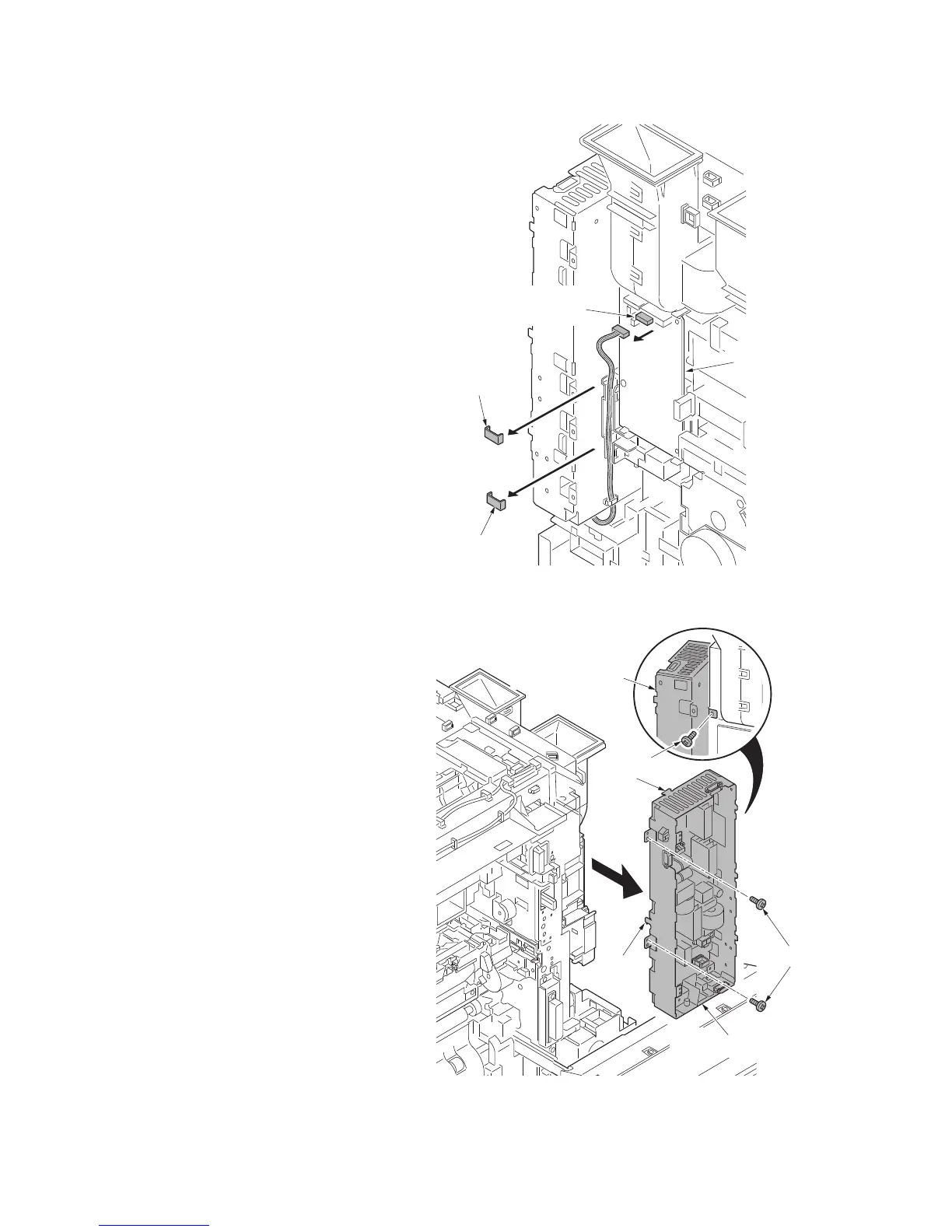

13. Remove two wire holders.
14. Remove the connector (YC27) from
feed PWB 1.
Figure 1-5-90
15. Remove three screws.
16. Unhook two hooks and then remove IH
box assembly.
Figure 1-5-91
Wire holder
Wire holder
Feed PWB 1
Connector
(YC27)
IH box assembly
Hook
Hook
Screw
Screws
IH box assembly
