2MN/2N1
1-2-41

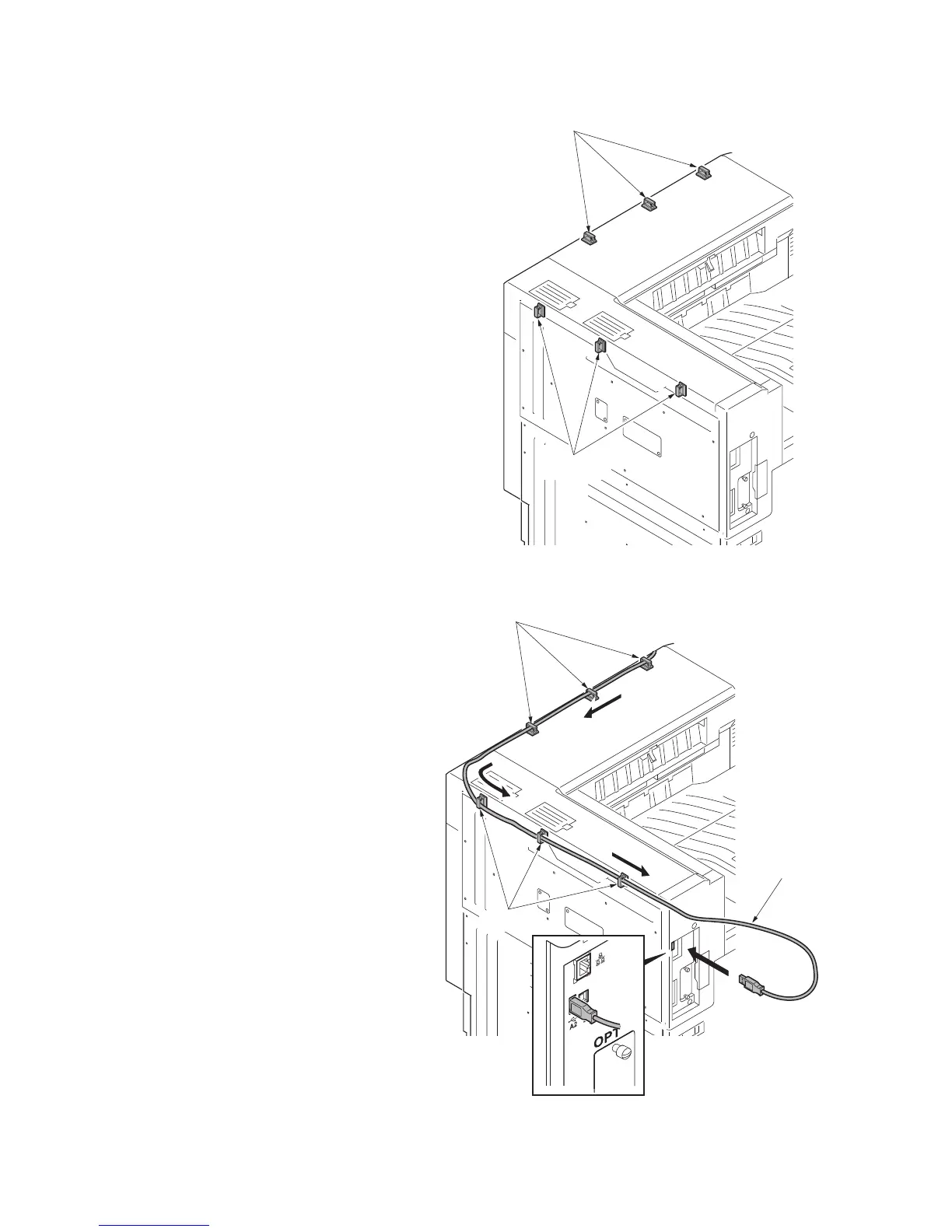

11. Fit six clamps.
Right side: three
Rear side: three
Figure 1-2-60
12. Pass the USB wire of the IC card reader
through six clamps and then fasten the
wire.
13. Connect the USB wire to the machine.
If the length does not suffice, use the
USB wire supplied.
Figure 1-2-61
Clamps
Clamps
USB wire
Clamps
Clamps
