Model 831 Manual Run Modes Without Measurement History 6-9
The selection and setting of appropriate parameters for the
Continuous, Single Block Time and Daily Timer run modes
is shown in FIGURE 6-7.

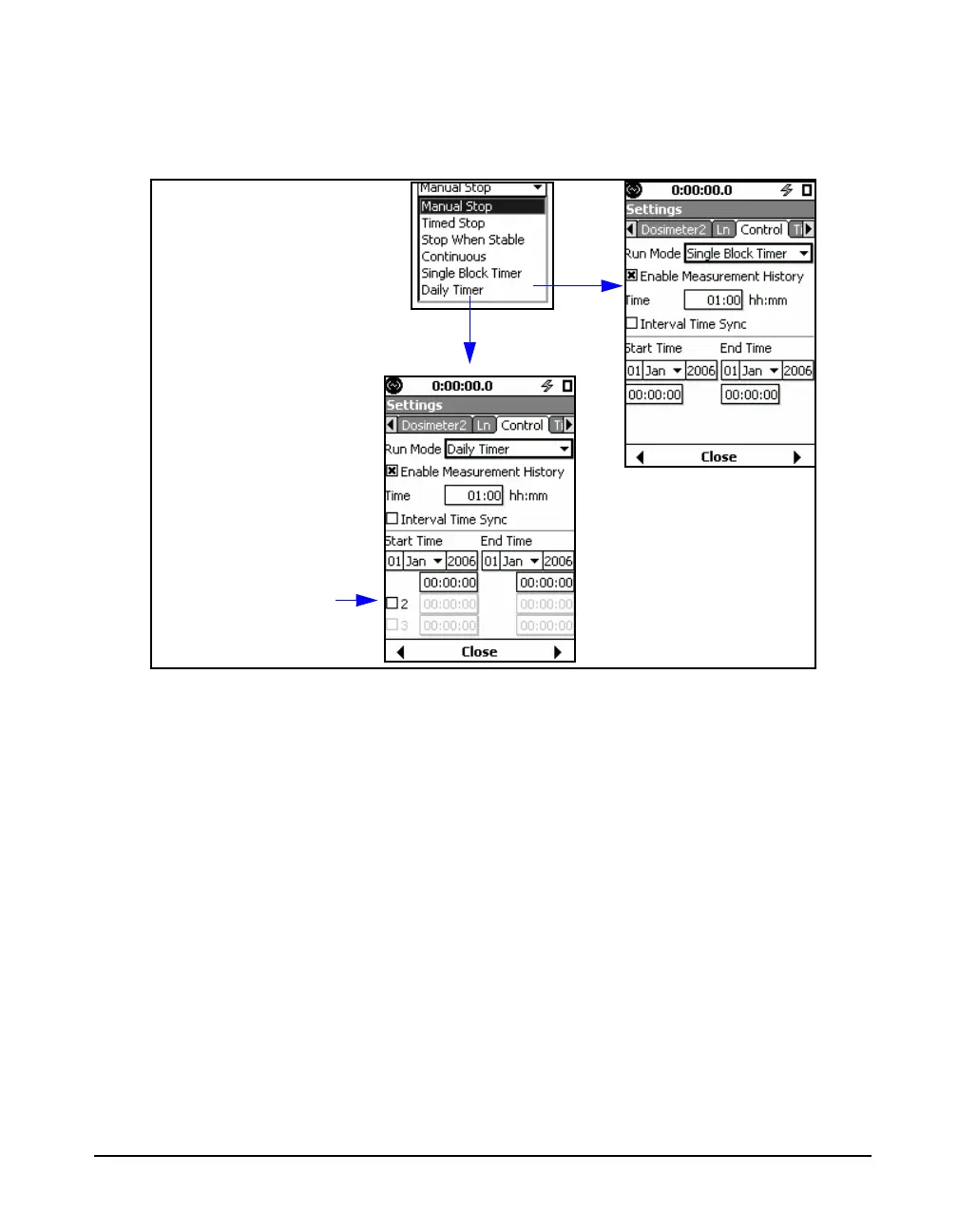

FIGURE 6-7 Setup of Single Block Timer and Daily Timer Run Modes
Measurements are initiated for one or more time blocks
within the selected Start Date and End Date.
Highlight each data field individually, press
5 and use the
arrow keys to set the parameters as desired. Press
5 again
to complete the selection. The following example illustrates
several important considerations in setting up these Timer
modes.
Click to open data
fields for blocks 2
and 3
