Model 831 Manual Event History Display 13-19

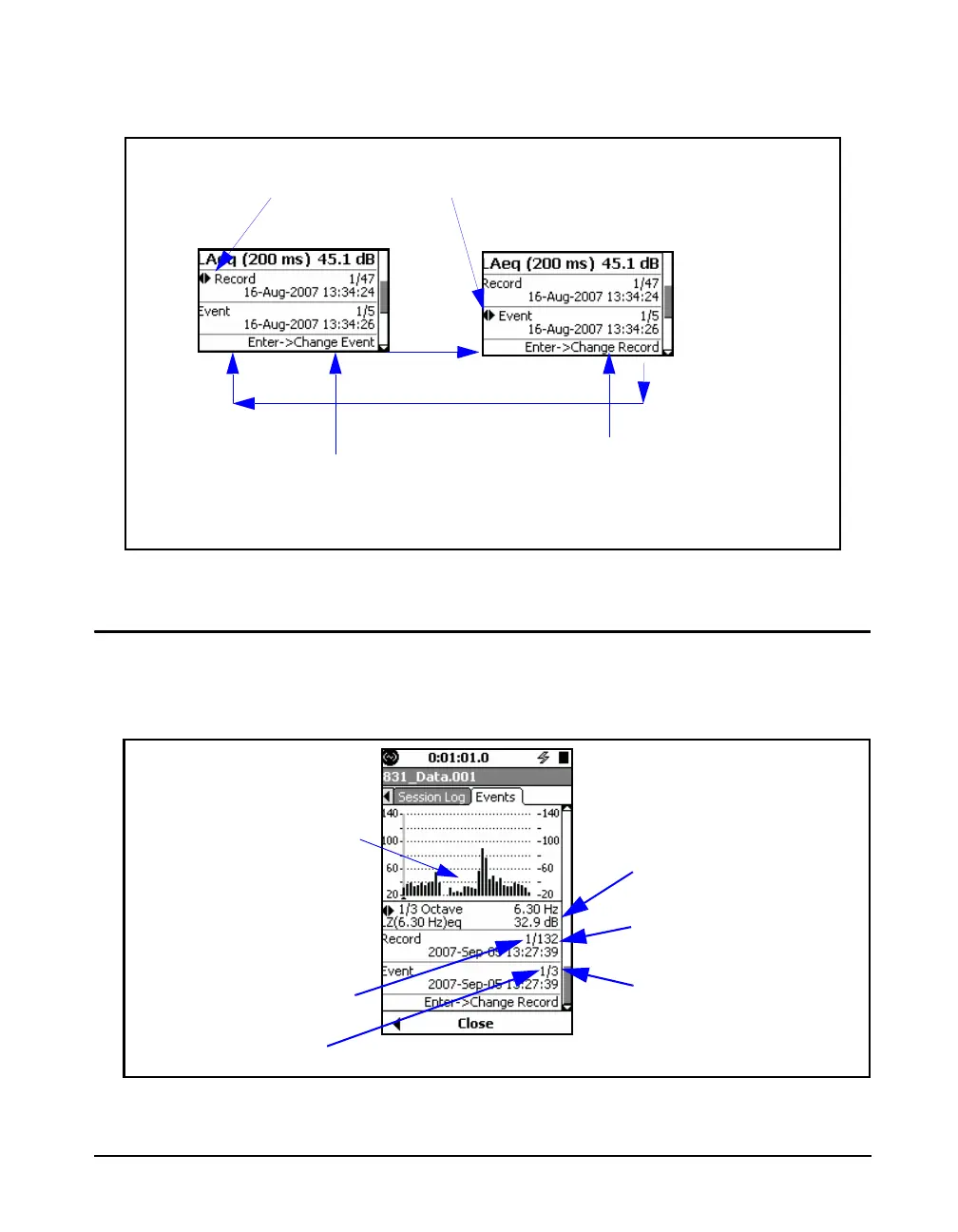

FIGURE 13-18 Role of Left/Right Arrow Keys: Event Time History
Event Spectra Time History Display
With all possibilities included, the sixth display would be a
Spectra Time History for the displayed event, as shown in
FIGURE 13-19.
FIGURE 13-19 Event Spectra Time History Display, Section 6
Left and Right Arrow keys
Change Record
Left and Right Arrow keys
Change Event
Switch role of left/right arrow keys
from “Change Record” to “Change
Event”
Switch role of left/right arrow keys
from “Change Event” to “Change
Record”
5
5
Frequency and Level at
Cursor Position
Time History Record
Whose Spectrum is Being
Displayed
Number of Time History
Records Measured
Event Being Displayed
Number of Events
Measured
Frequency Spectrum for
Selected Record and Event
