7.5.7.2 Structure

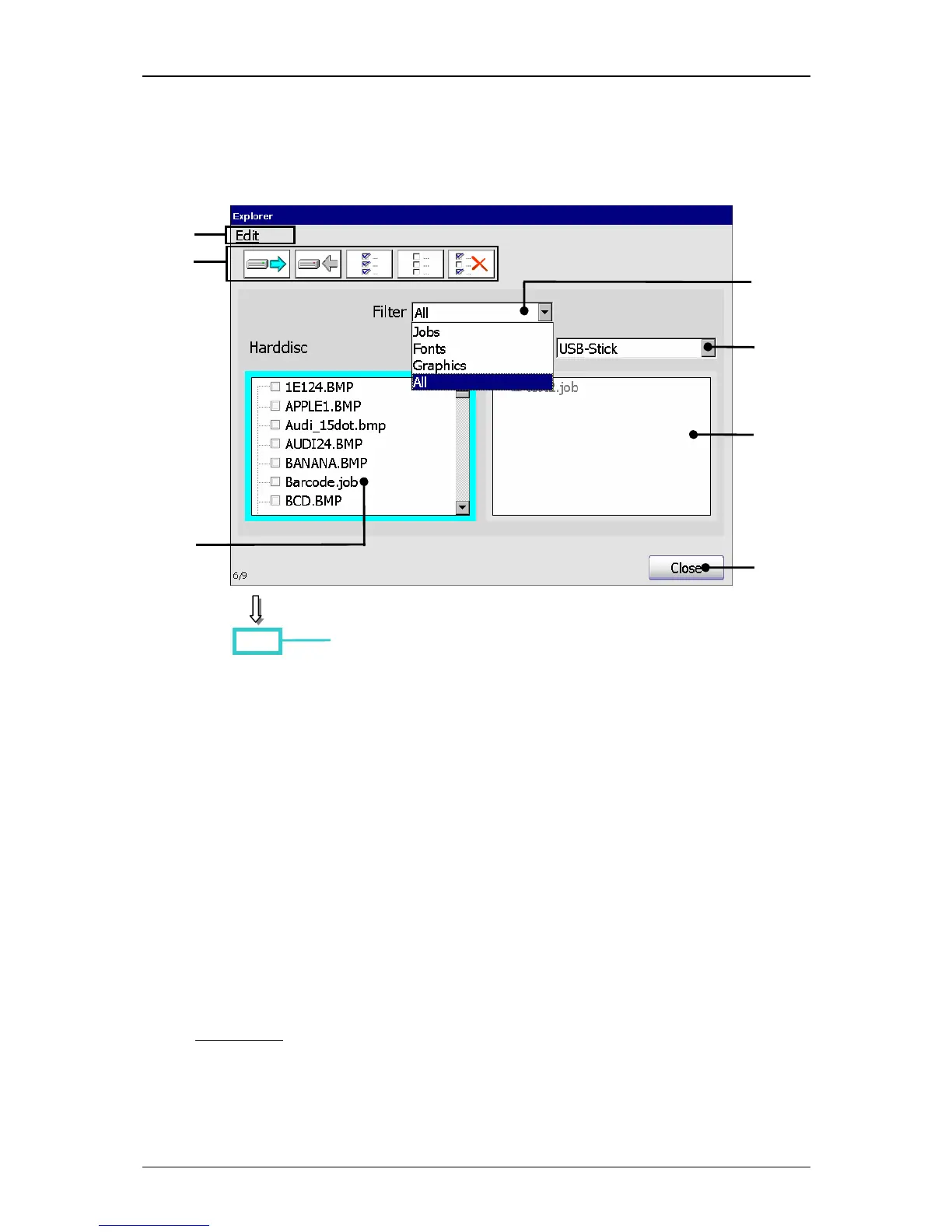

Figure 79
JExplorer (Structure)
1 – Button <Edit> 5 – Pop-up window <Filter>
2 – Direct buttons <Tools> 6 – Pop-up window <memory device>
3 – Selection window <Harddisc> 7 – Button <Close>
4 – Selection window <Ext. memory>
 Button <Edit> (1) and direct buttons [icons] (2): With the button or with the
icons you can select the tools of the explorer.
 Selection window <Harddisc> (3):
In the selection window the data or the
filtered data of the internal memory of the JET3 are displayed.
 Selection window <External memory> (4):
In the selection window the data or
the filtered data of the external data carrier which have been selected in the Pop-
up window <memory device > are displayed.
Annotation:
A selection window is activated by clicking on the display area of
the window. The active window is marked by a turquoise border.
6
4
2
5
1
3
active
selection window
7
