Leibinger JET3 - Interface X5 (Printgo)

Group 5 Transport/Start up Page 35
Release R1.03e LEIBINGER JET3

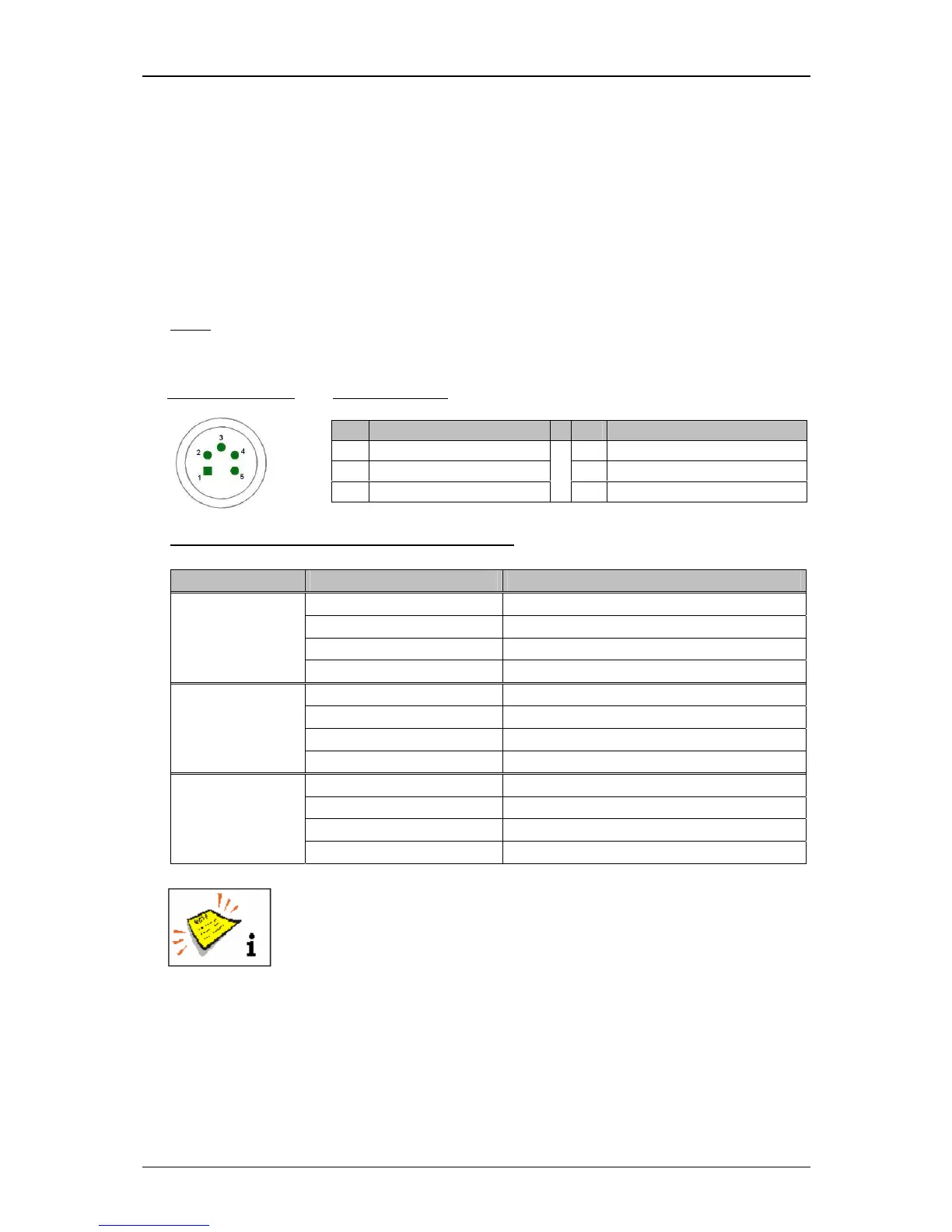

5.4.2 Interface X5 (PrintGo)
The interface “X5” provides the connection of an external PrintGo-signal. All
common product detectors (e.g. light barrier, product sensor ect.), 24V NPN-
as
well as 24V PNP-switching can be connected.
Regarding the software you can
select additionally if the positive edge or the
negative edge should be used for the release of the print out.
Note:
To inform the JET3 when a print text should be printed, you require a so-
called Print-Go signal.
Basic data/Recommended working conditions:
Signal Parameter Value
Input level High 15 up to 30V
Input level Low -3,5V up to 3,5V (or high resistance)
Minimum pulse duration 100µS
PrintGo
Input resistance 6,8 kOhm
Input level High 20 up to 28V (or high resistance)
Input level Low -6V up to 9V
Minimum pulse duration 100µS
/PrintGo
Input resistance 6,8kOhm
Input level High 15 up to 30V
Input level Low -3,5V up to 3,5V (or high resistance)
Minimum pulse duration 100µS
PrintGo Gate
Input resistance 6,8 kOhm
You will find a circuit diagram of the interface in the appendix of this
manual!
(1)
All 24V inputs which are designated with (1) are protected by a self-reset fuse with 700 mA.
Pin Designation Pin Designation
1 +24 V
(1)
4 PrintGo
2 /PrintGo 5 PrintGo_Gate
3 GND
Plug assignment:
Pin connection:
