Leibinger JET3 - Interfaces; Ethernet-Connection

Group 5 Transport/Start up Page 34
Release R1.03e LEIBINGER JET3
5.4 Interfaces
The following interfaces are available on the rear side of the electronics cabinet.

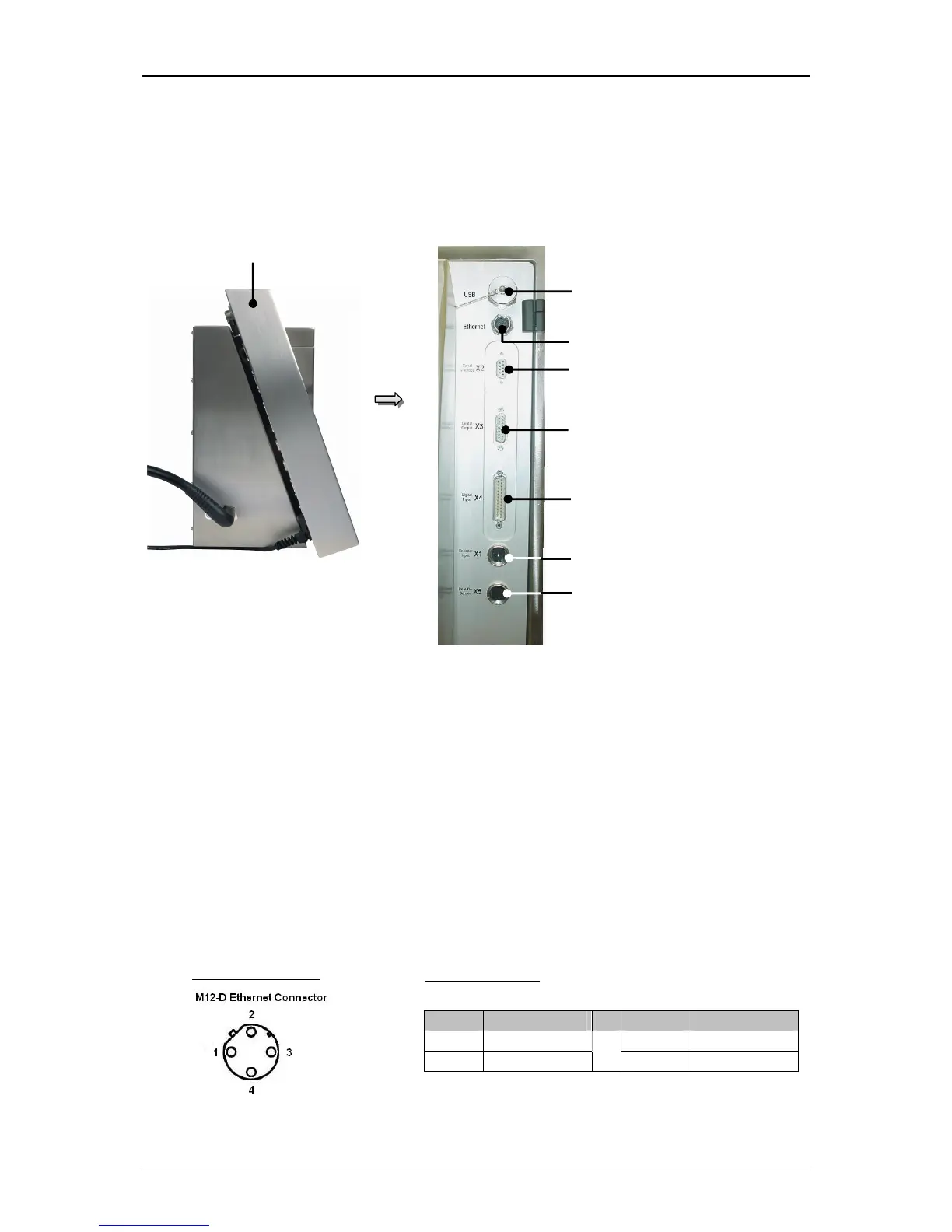

Figure 8
Interfaces
1 – Electronic cabinet 5 – Interface X3 – digital outputs
2 – Interface X5 – PrintGo 6 – Interface X2 – Serial Interface
3 – Interface X1 – Encoder 7 – Ethernet-connection
4 – Interface X4 – digital inputs 8 – USB connection
5.4.1 Ethernet-connection
The Ethernet-connection is implemented with a sturdy M12D coded socket and is
designed for high transfer rates and long cable lengths. It provides the networking
of several devices in multi-head applications. The data exchange happens via the
„LEIBINGER JET3-interface protocol“.
1
6
4
2
7
3
5
8
Pin No Designation Pin No. Designation
1
Tx + 3 Tx -
2
Rx +
4 Rx -
Plug assignment:
Pin connection:
