5.4.5 Interface X3 (Outputs)
8 outputs which can be freely selected are available for special functions. The
outputs 1-3 are predefined as a standard and should be not changed.
 Output 1 = Print stop error  Output 3 = Ready to print
 Output 2 = Refill warning
Specifications Output 1-8:
Parameter Value
Driver type 24V high side driver
ON = +24V
OFF = high resistance
Output current max. 700mA/output
max 700 mA totally
(1)
Max. switching frequency 2 kHz
(2)
Max. delay time 100µs
Turn on resistance max. 0,28 Ohm
Features  Short-circuit-proof
 Overcurrent- and excess temperature –proof
The function allocations of the outputs is carried out with the
software of the JET3 in the menu Settings X I/O-Settings X
Outputs.
You will find a circuit diagram of the interface in the appendix of this
manual!
(1)
All 24V inputs which are designated with (1) are protected by a self-reset fuse with 700mA,
that means the sum of all output currents which are supplied of this 24V should not exceed
700mA.
(2)
Depending on the set function.
Pin Designation Pin Designation
1 Output 1 9 Output 5
2 Output 2 10 Output 6
3 Output 3 11 Output 7
4 Output 4 12 Output 8
5 +24V
(1)
13 Reserved
6 Reserved 14 Reserved
7 Reserved 15 GND
8 GND
Reserved = Do not connect

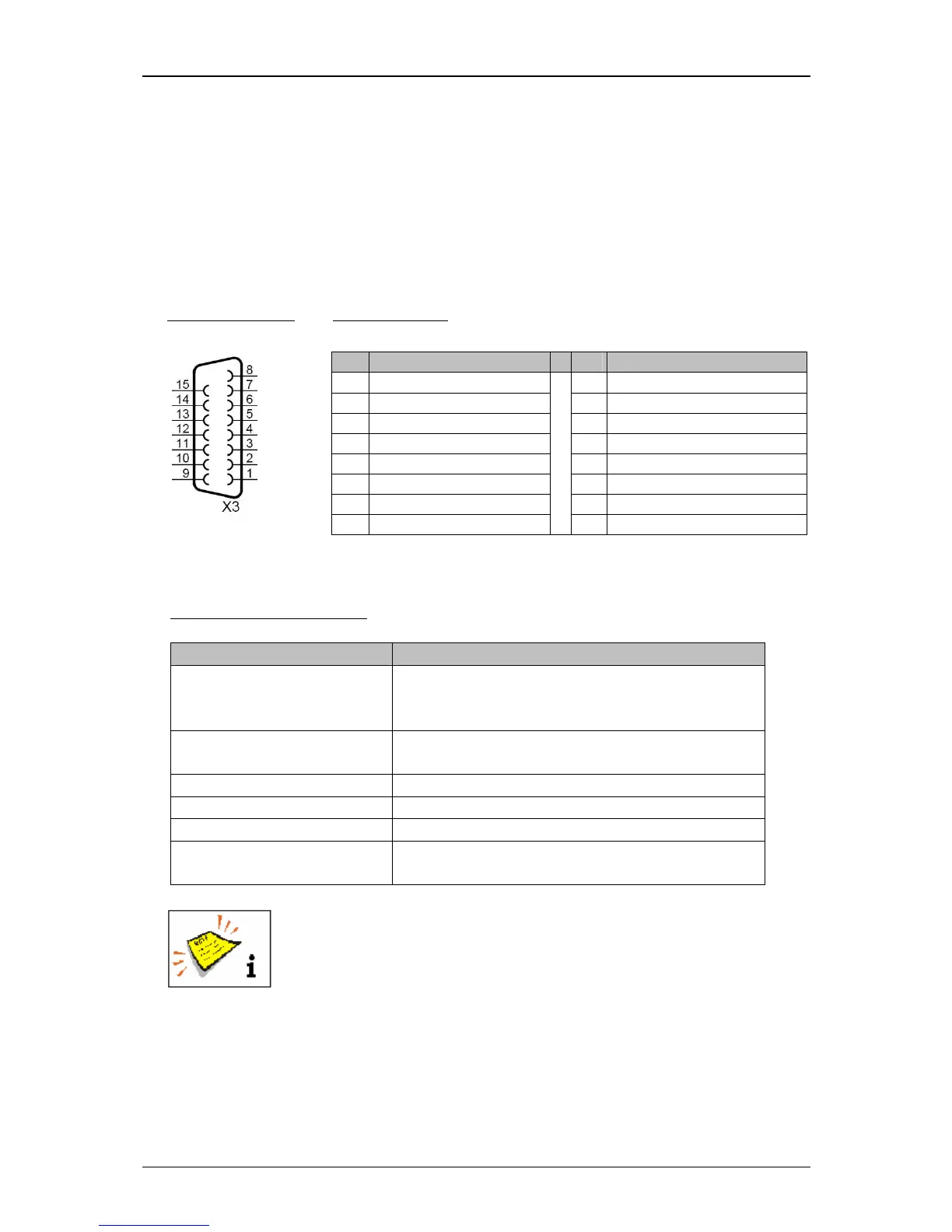

Plug assignment:
Pin connection:
