6.2.6 Summary of the individual procedures

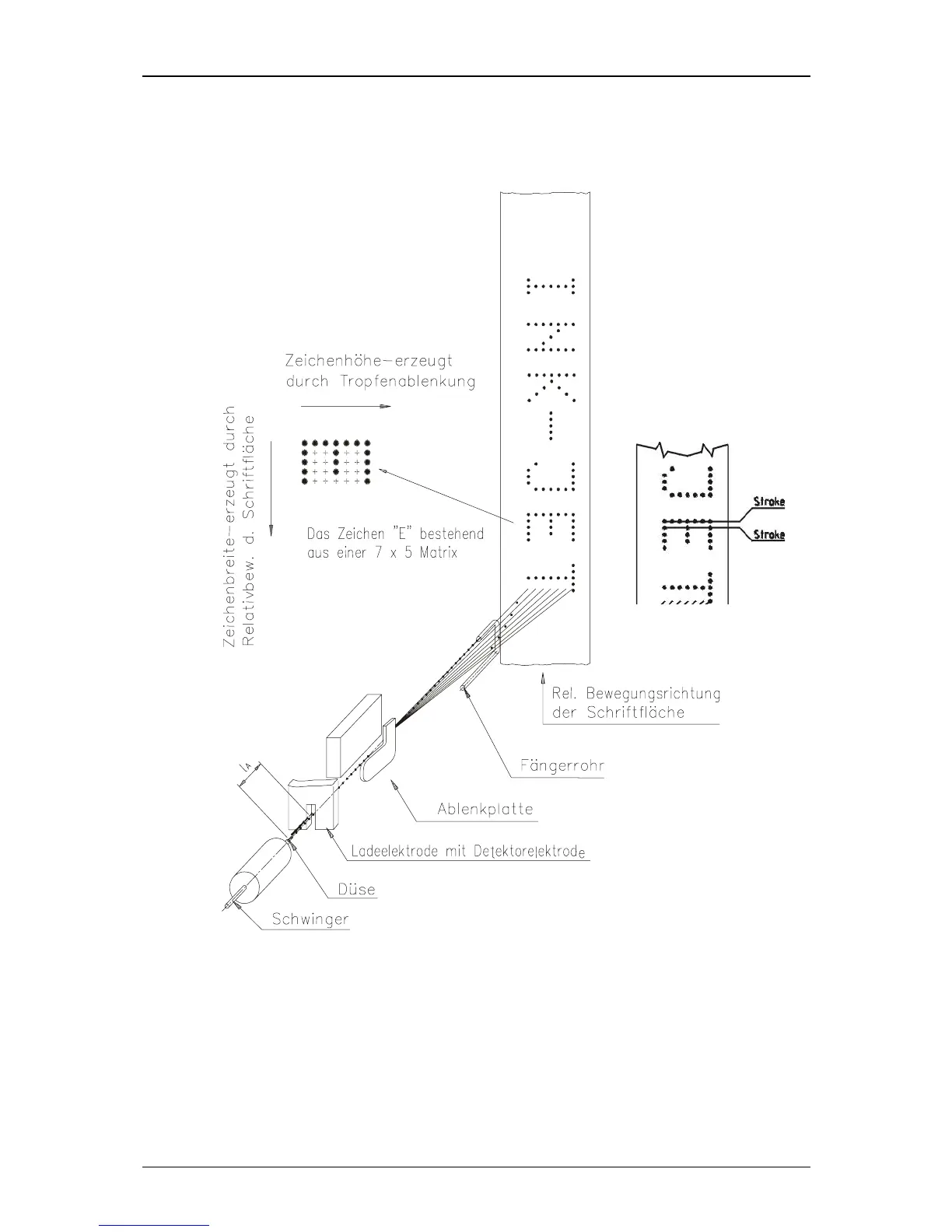

Figure 10
Creation of a character
Abriss-Punkt
X
X+1
Character height created
by drop deflection
Drop brake-off point
Character „E“ build with a
7 x 5 matrix
Rel. movement direction of
the description area
Gutter
Deflector plate
Charge electrode with deflector
electrode
Nozzle (jet)
Oscillator
Character width created by the rel.
movement of the description area
