Leibinger JET3 - Inputs; ON Input

Group 12 Appendix Page 221
Release R1.03e LEIBINGER JET3

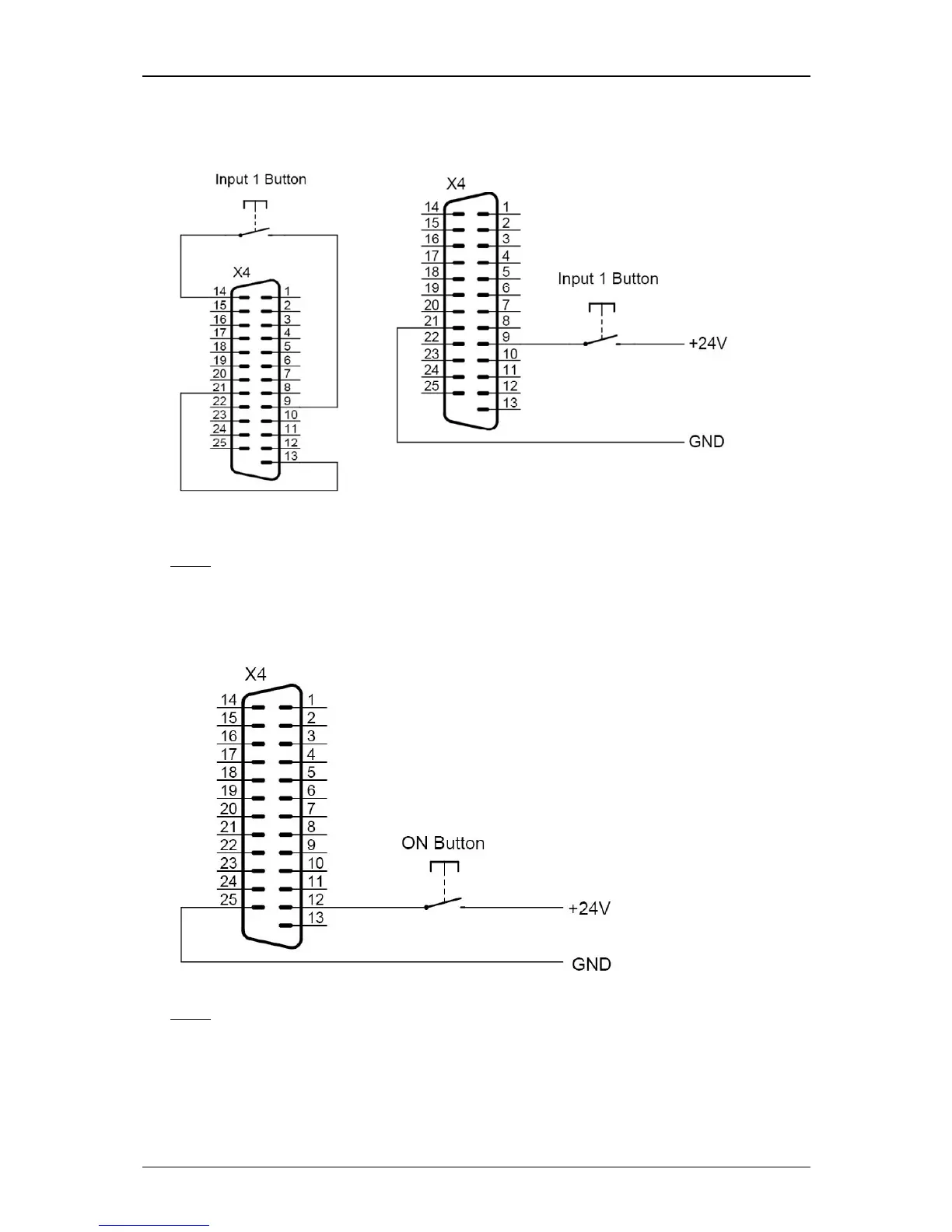

12.2.2.4 Inputs (Example with pushbotton)
Note:
Only input 1 is displayed, the same goes also for input 2 up to 6
12.2.4.5 ON Input (Example with pushbotton)
Note:
A switching option which works with the internal 24V supply (Pin 14) is not
possible because it is not available at the plug in the OFF-status of the printer.
Mit interner Versorgung
Mit externer Versorgung
with external supply
with internal supply
