Leibinger JET3 - I;O Signal Test

Group 7 Data/Programming Page 90
Release R1.03e LEIBINGER JET3
7.4.1 I/O Test (Signaltest)
With the option <I/O Test> (2) the menu „I/O-Signals (3)“ is displayed. The menu
shows the states of the inputs and outputs of the device.

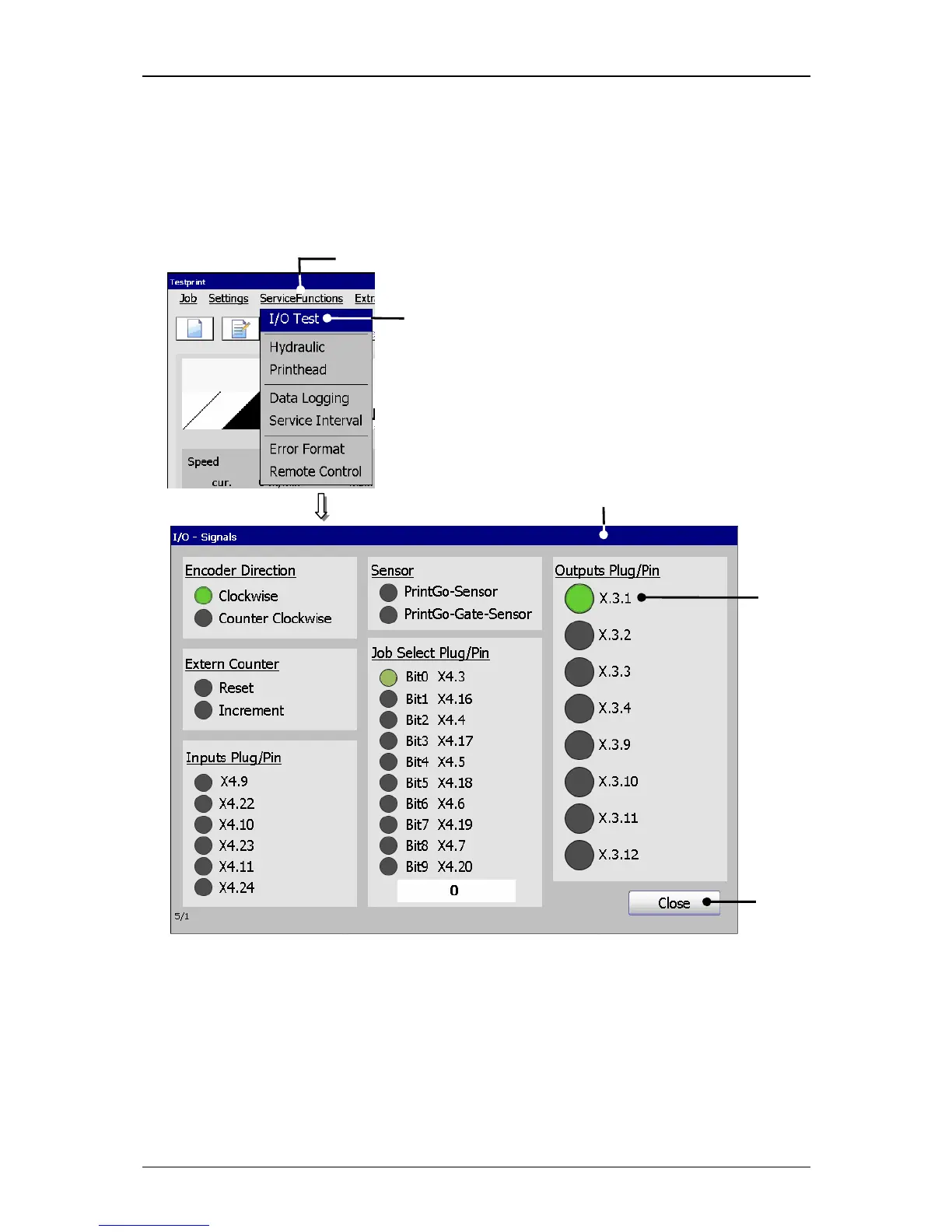

Figure 46
5
I/O-Signal test
1 – Button <ServiceFunctions> 4 – Status display <I/O active/inactive>
2 – Option <I/O-Test> 5 – Button <Close>
3 – Menu <I/O-Signals>
The button <Close> (5) ends the menu.
1
2
5
4
3
