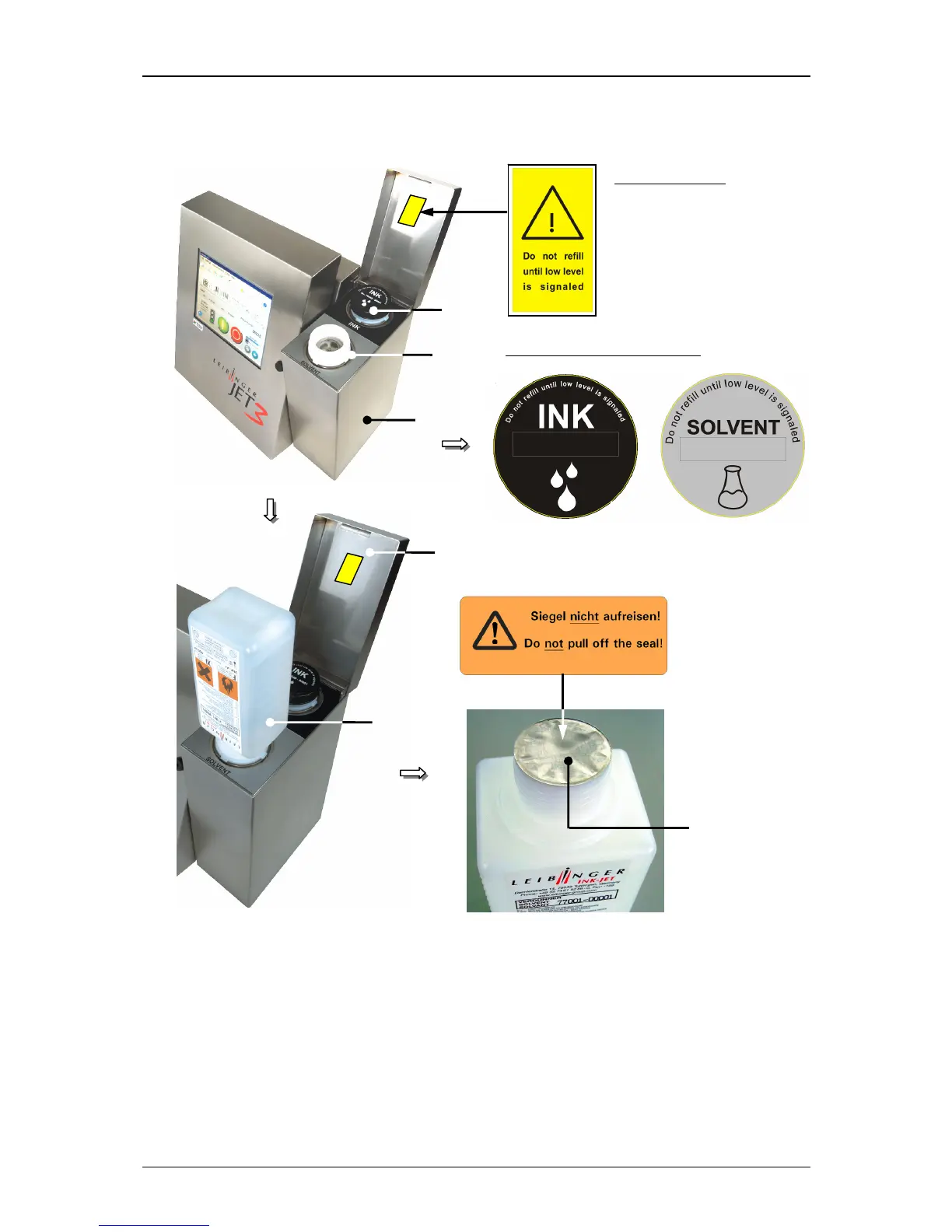

Figure 128
Reservoir tank and re-filling process (Example: solvent re-filling)
1 – Re-filling unit 4 – Reservoir tank „Solvent“
2 – Cap (cover flap) 5 – Re-filling bottle „Solvent “
3 – Reservoir tank „Ink“ 6 – Seal of re-filling bottle
2
5
3
Indicating label
1
Marking of reservoir tanks
4
6
