Lexmark CS310 User Manual

Actions Yes No
Step 1
Enter the Diagnostics Menu (turn the printer off, press and hold 3 and 6,
turn the printer on, and then release the buttons when the installed
memory and processor speed displays).
Perform the Panel Test. See
“Panel Test” on page 172.
Did all the pixels come on?
Go to step 2. Replace the display and
UICC card. See
“Operator panel
removal (for CS410
models only)” on
page 256.

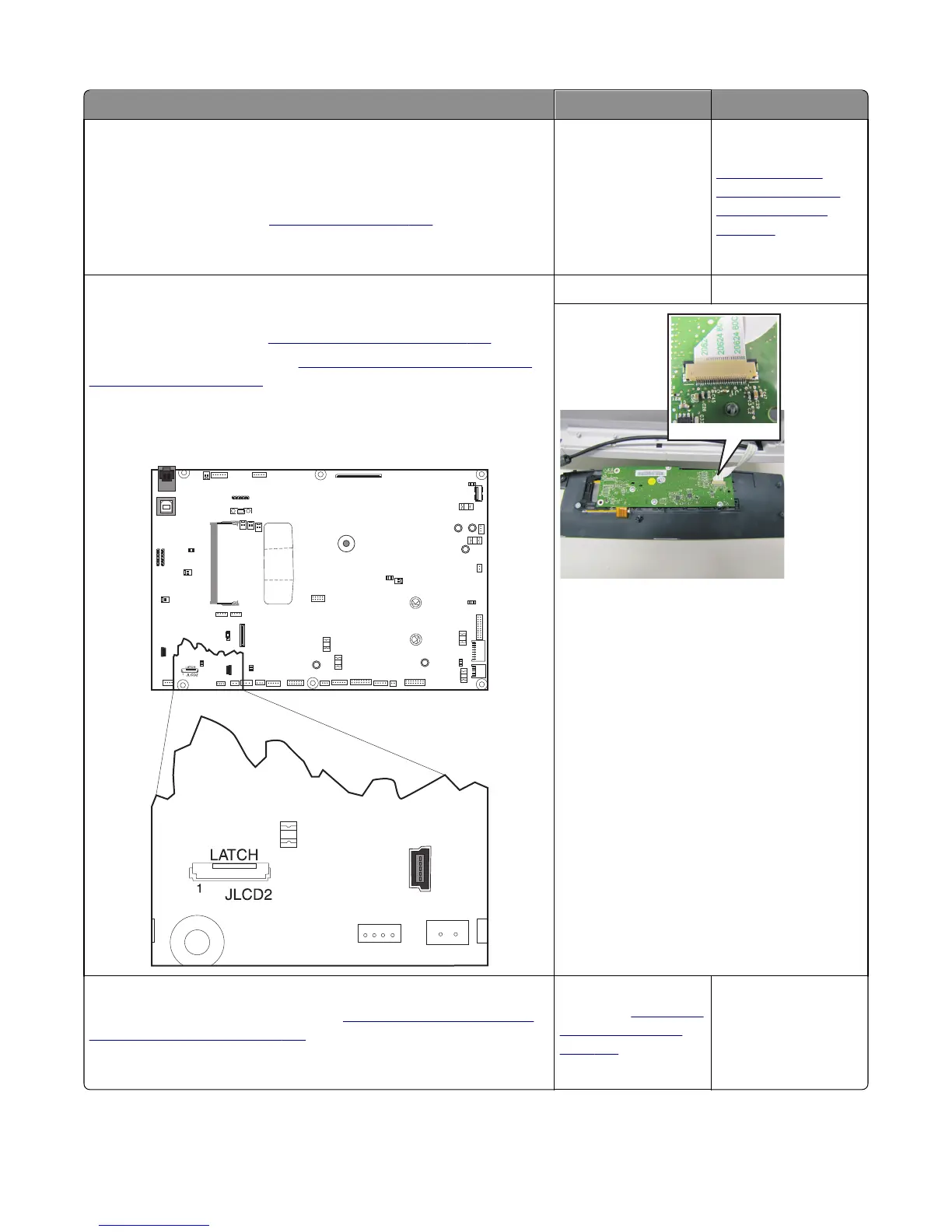

Step 2
Turn the printer off.
Remove the rear cover. See
“Rear cover removal” on page 290.
Remove the operator panel. See
“Operator panel removal (for CS410
models only)” on page 256.
Is the operator panel cable properly installed at JLCD2 on the controller
board and the operator panel assembly?
Go to step 3. Reinstall the cable.
Step 3
Replace the UICC card with display. See
“Operator panel removal (for
CS410 models only)” on page 256.
Is the operator panel still dim and unchanging?
Replace the controller
board. See
“Controller
board removal” on
page 291.
Problem resolved.
For CS510 models:
5027
Diagnostic information
125

Lexmark CS310 Specifications

General

Print Technology	Color Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 60, 000 pages
Standard Memory	256 MB
Processor Speed	800 MHz
Standard Input Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Standard Output Capacity	125 sheets
Recommended Monthly Page Volume	500 - 3, 000 pages
Operating Systems Supported	Windows, Linux
