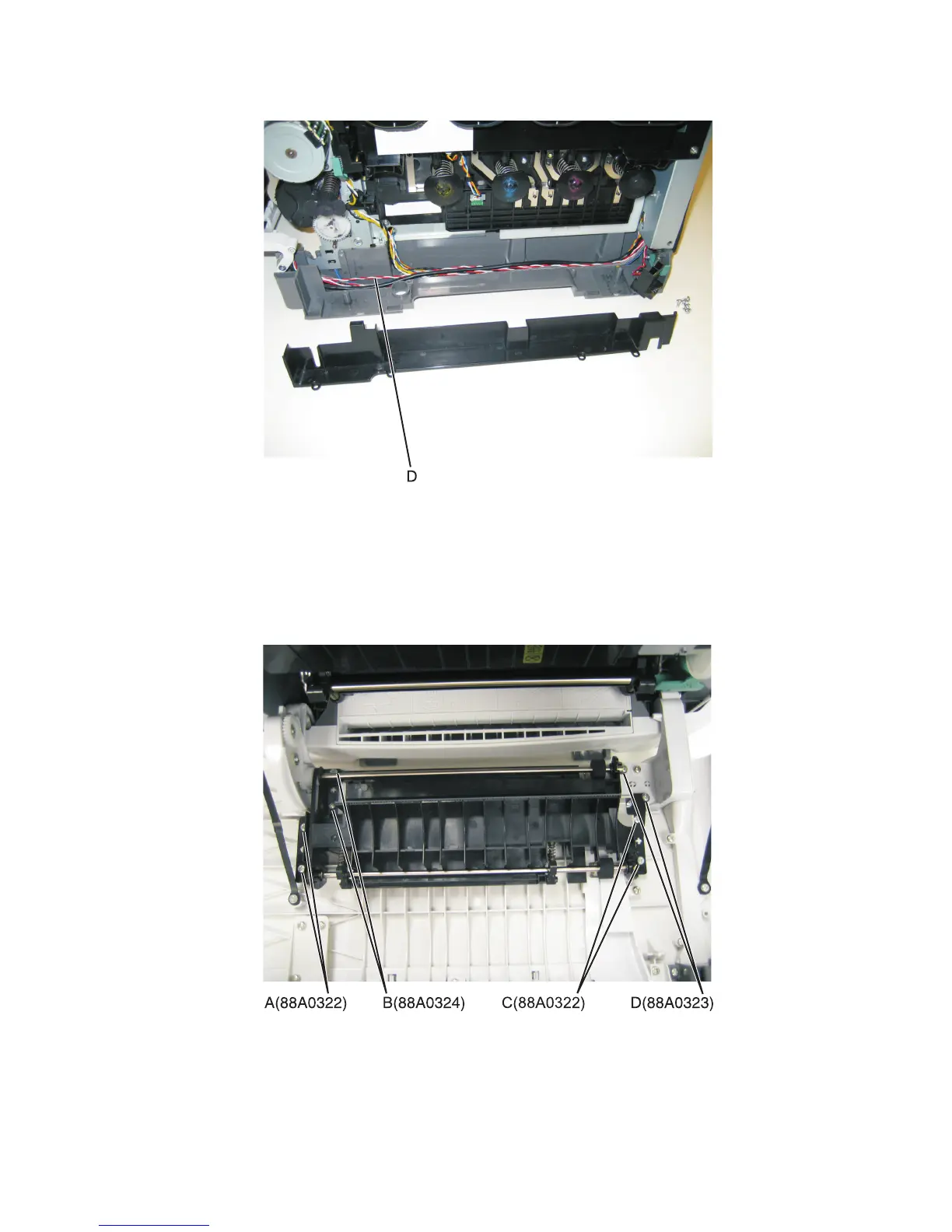

7 Remove the USB port cable (D) from the cable channel on the right side.

Duplex reference edge removal

1 Open the front door.

2 Remove the two screws (A), the two screws (B), the two screws (C), and the two screws (D) in the back of the duplex

aligner.

5027

Repair information

265
