Operator panel removal (for CS510 models only)
Installation warning: Replace one of the following components, and perform a POR before replacing a second
component. Never replace both of the components without performing a POR after installing each one, or the
printer may be rendered inoperable:
• UICC card
• Controller board
1 Remove the operator panel bezel. See “Operator panel bezel removal” on page 254.
2 Open the front cover.

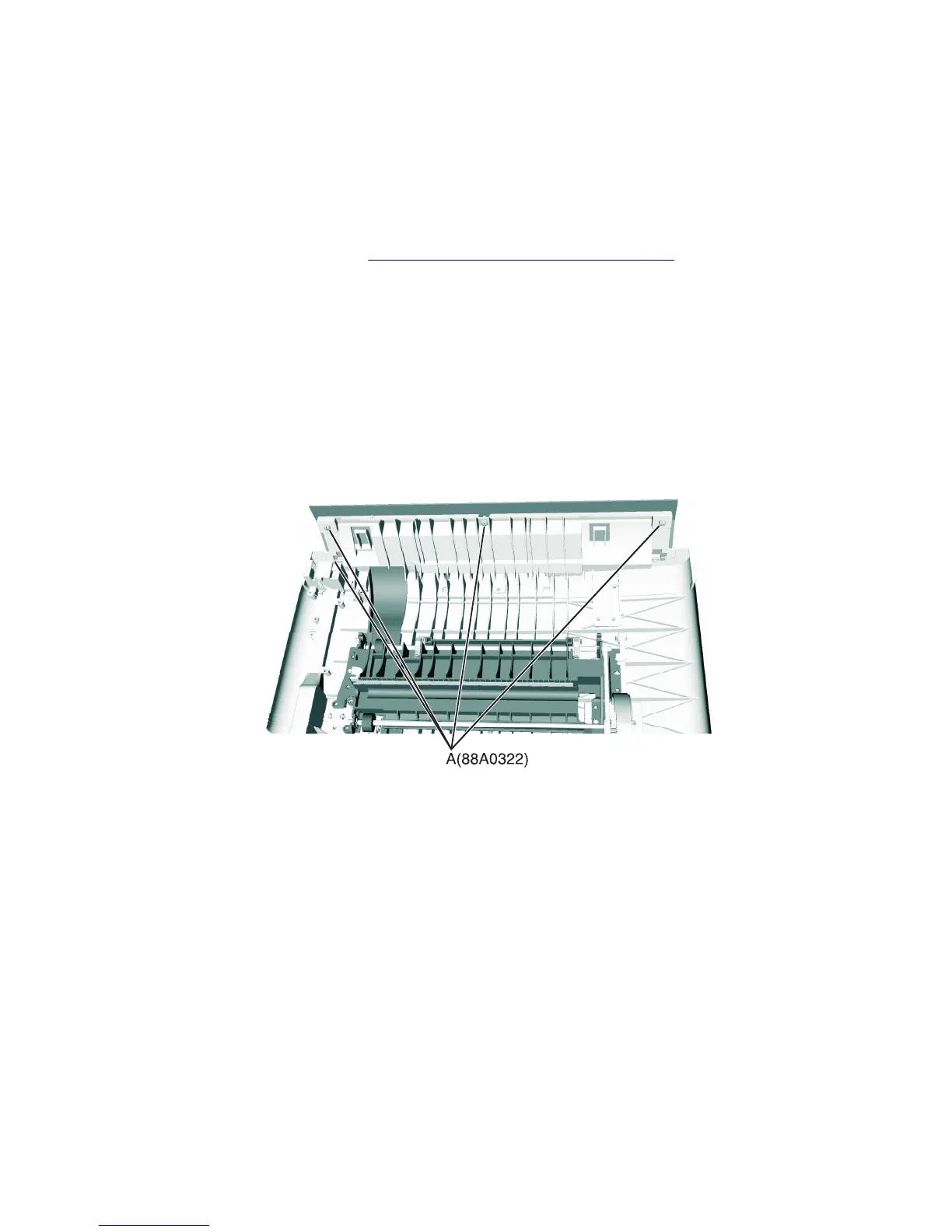

3 Remove the four screws (A) from the front cover assembly.
5027
Repair information
259
