Lexmark CS310 User Manual

Horizontal sliding contact connector
This FRU contains a horizontal sliding contact connector. Read the instructions before proceeding.
The horizontal sliding contact connector uses a slide locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently push or pull the two tabs
located on each end of the actuator. Do not close the actuator from the center of the actuator. Do not use a
screwdriver to open or close the actuator. Damage to the cable or connector could occur.
Removing a cable from the horizontal sliding contact connector

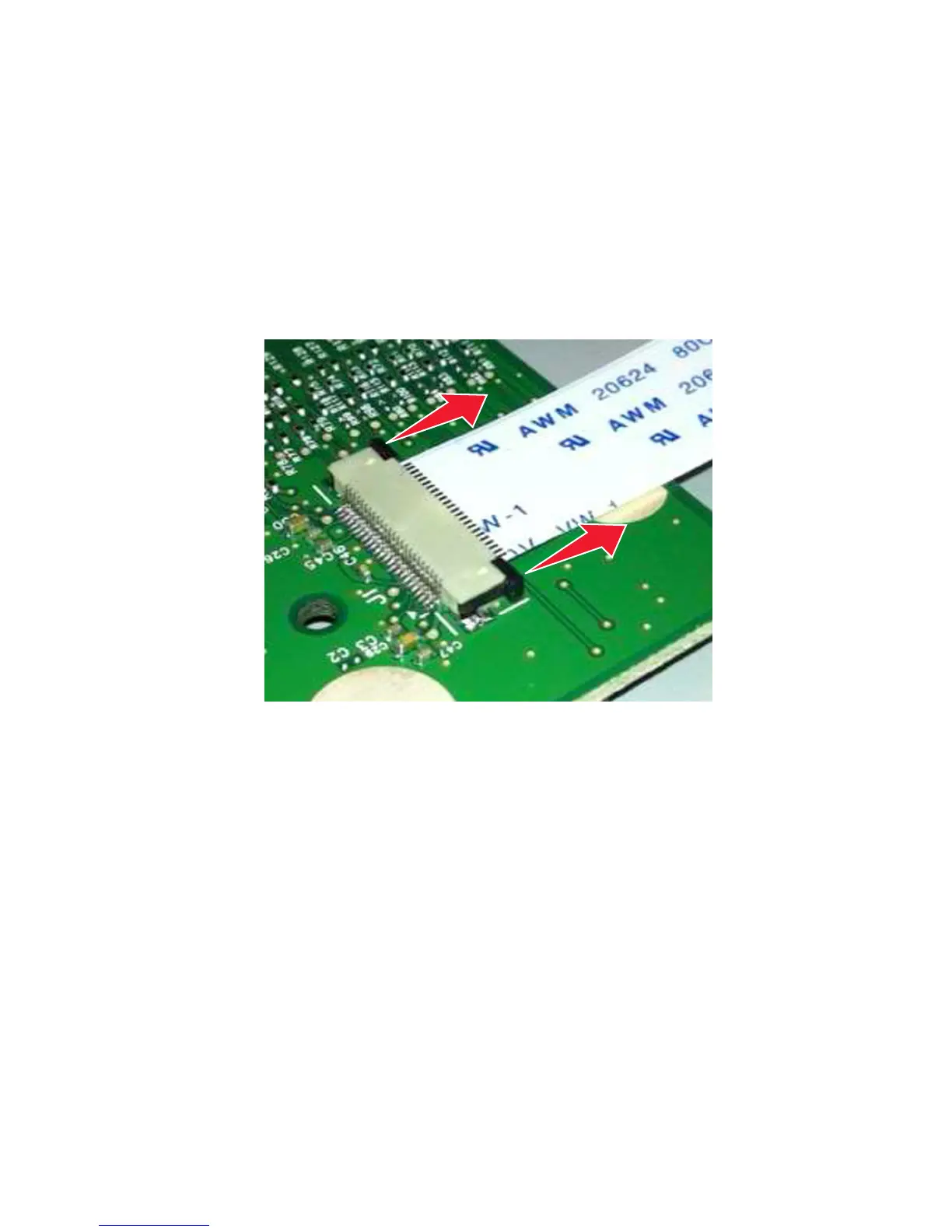

1 Simultaneously slide the two tabs located on the ends of the locking actuator away from the connector.
2 Slide the cable out of the connector.
5027
Repair information
215

Lexmark CS310 Specifications

General

Print Technology	Color Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 60, 000 pages
Standard Memory	256 MB
Processor Speed	800 MHz
Standard Input Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Standard Output Capacity	125 sheets
Recommended Monthly Page Volume	500 - 3, 000 pages
Operating Systems Supported	Windows, Linux
