Waste toner bottle removal

Note: The waste toner bottle is not a FRU.

1 Remove the right cover assembly. See “Right cover assembly removal” on page 232.

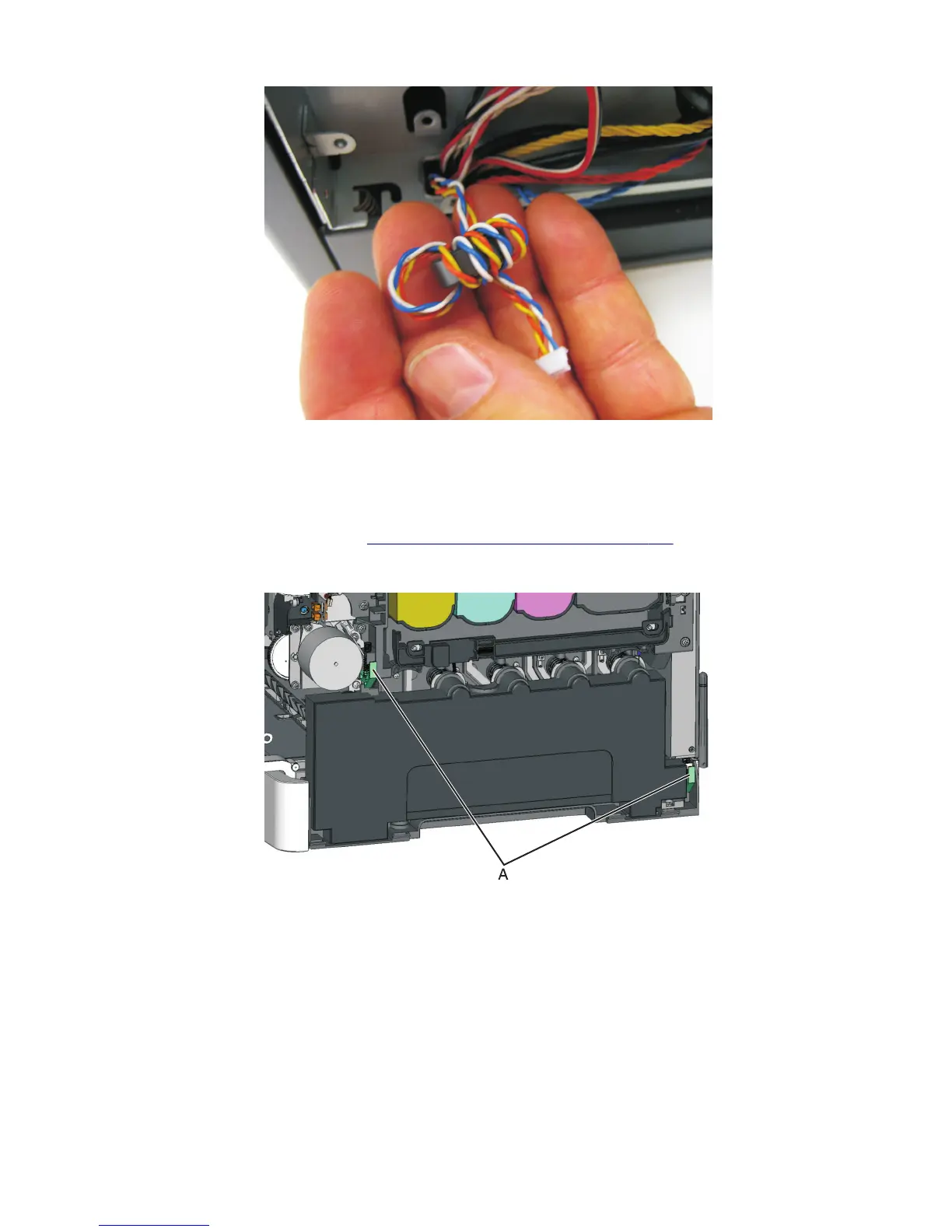

2 Press the two tabs (A) to remove the waste toner bottle.

5027

Repair information

250
